Tire Pressure Module
>>
C3MC39A Module-Tire Pressure Monitoring System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

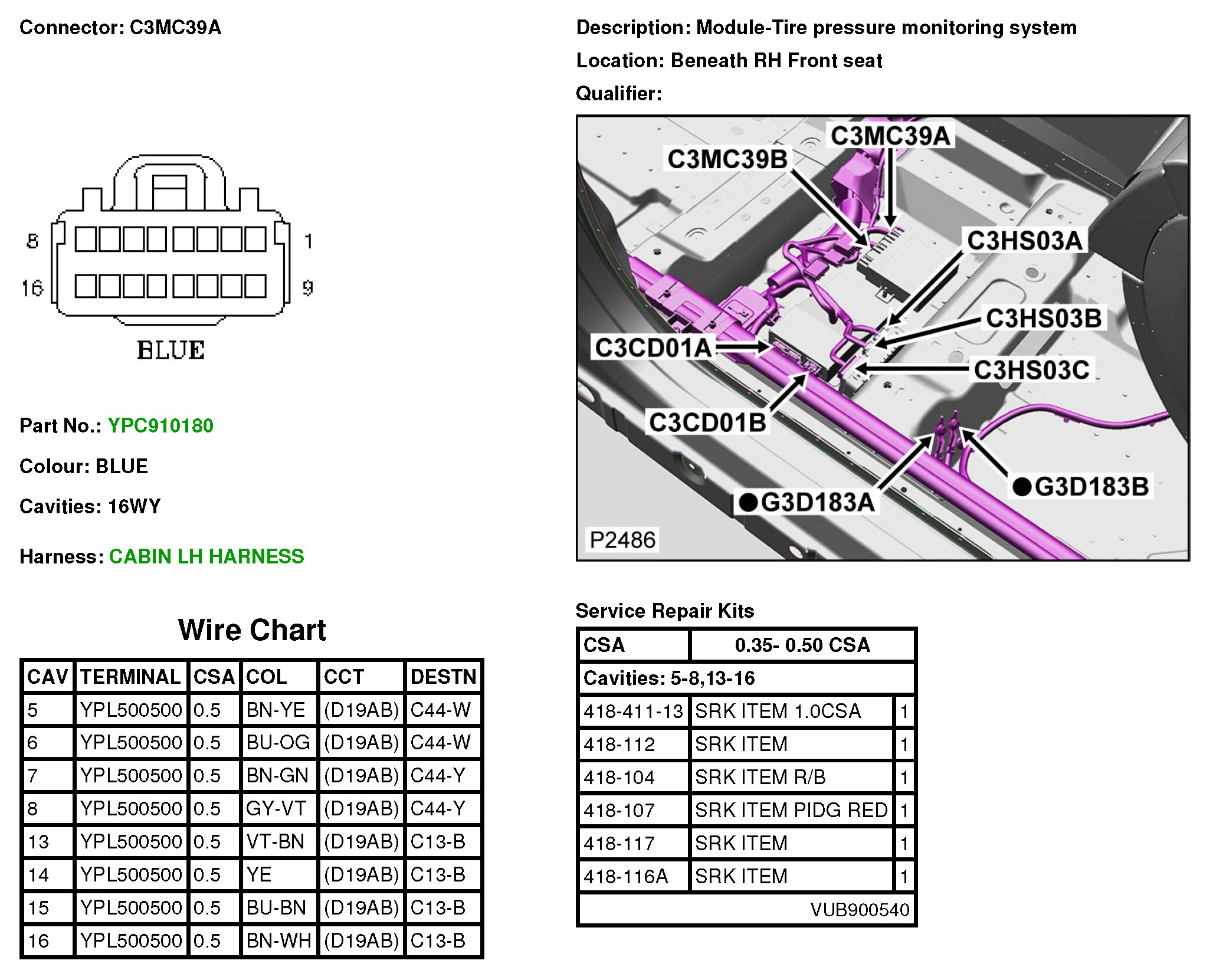

C3MC39A Module-Tire Pressure Monitoring System
C3MC39A
