PI014 Sensor-Mass Air-Flow (MAF)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

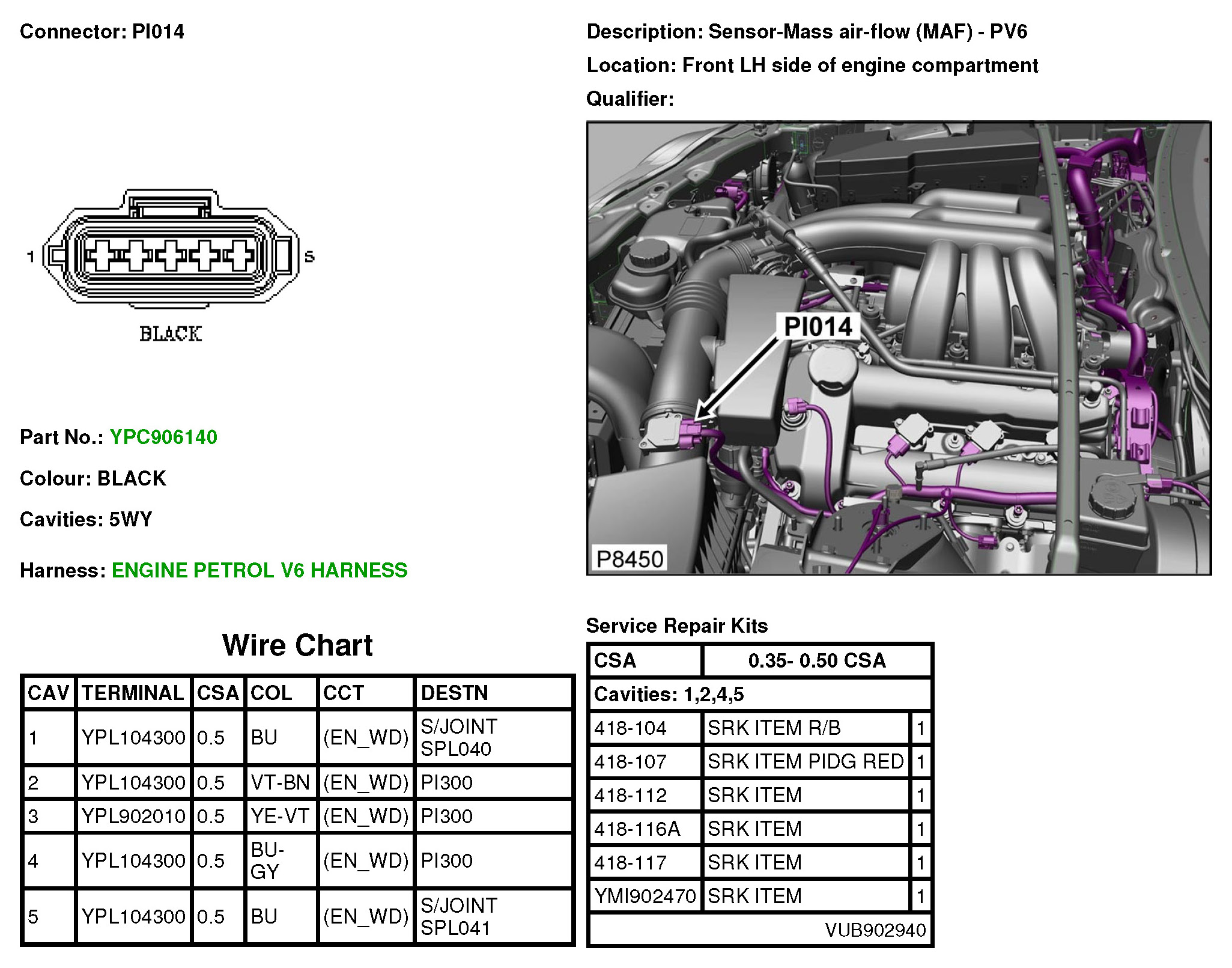

PI014 Sensor-Mass Air-Flow (MAF)
PI014
