Engine Control Module (ECM): Removal
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
- Refer to Battery Disconnect and Connect information.
- Refer to COWL VENT SCREEN (G979342) information.
- Refer to SECONDARY BULKHEAD LEFT PANEL - TDV6 3.0L DIESEL/V6 S/C 3.0L PETROL/V8 N/A 5.0L PETROL/V8 S/C 5.0L PETROL (G1090270) information.

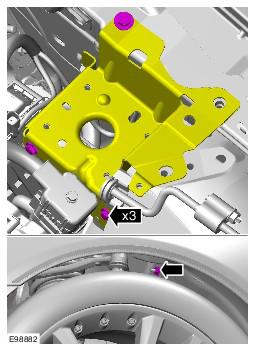

- Torque: 25 Nm
- Torque: 25 Nm
- Torque: 8 Nm
- Torque: 6 Nm
- Torque: 10 Nm
- See figure
