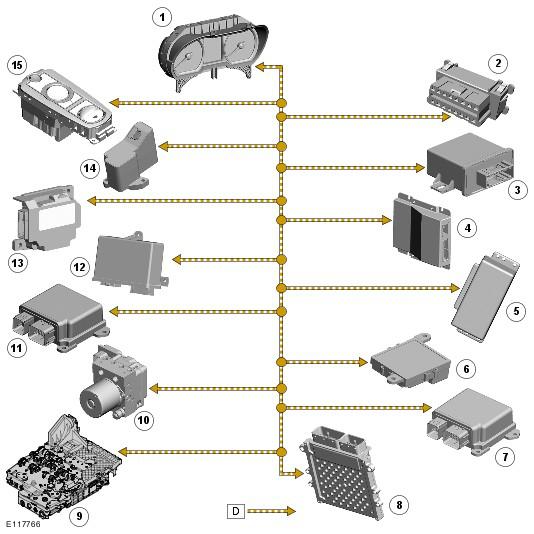

Control Diagram - High Speed Can Bus
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
D = High speed controller area network (CAN) bus.
| Item Number | Description |
|---|---|
| 1 | Instrument cluster |
| 2 | Diagnostic socket |
| 3 | Adaptive front lighting system control module |
| 4 | ADCM (adaptive damping control module) |
| 5 | DLM (differential locking module) |
| 6 | Occupancy sensor module |
| 7 | Pedestrian protection module |
| 8 | ECM (engine control module) |
| 9 | TCM (transmission control module) |
| 10 | ABS (anti-lock brake system) module |
| 11 | RCM (restraints control module) |
| 12 | Parking brake module |
| 13 | Adaptive speed control module |
| 14 | Electric steering column lock |
| 15 | JaguarDrive selector module |
