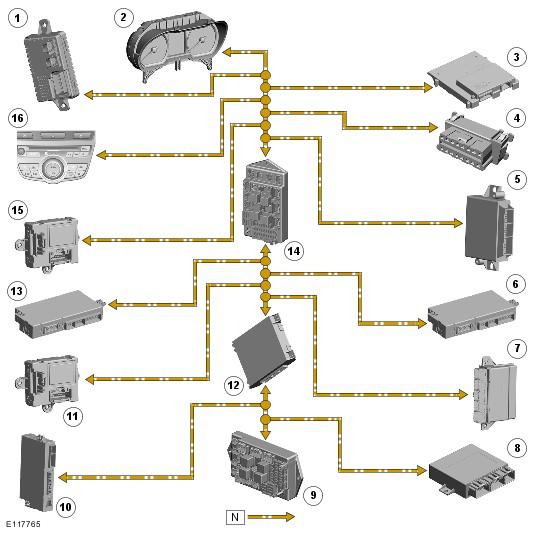

Control Diagram - Medium Speed Can Bus
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
N
= Medium speed controller area network (CAN) bus.
| Item Number | Description |
|---|---|
| 1 | Seat climate control module |
| 2 | Instrument cluster |
| 3 | Information and entertainment module |
| 4 | Diagnostic socket |
| 5 | Parking aid module |
| 6 | Passenger seat module |
| 7 | Keyless vehicle module |
| 8 | TPMS (tire pressure monitoring system) module |
| 9 | AJB (auxiliary junction box) |
| 10 | Convertible top module |
| 11 | Passenger door module |
| 12 | ATC (automatic temperature control) module |
| 13 | Driver seat module |
| 14 | CJB (central junction box) |
| 15 | Driver door module |
| 16 | Integrated control panel |
NOTE:
Only the buttons of the integrated control panel are connected to the medium speed controller area network (CAN) bus. The TSD (touch screen display) is connected to the MOST ring.
