Control Diagram - Most Ring
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
P

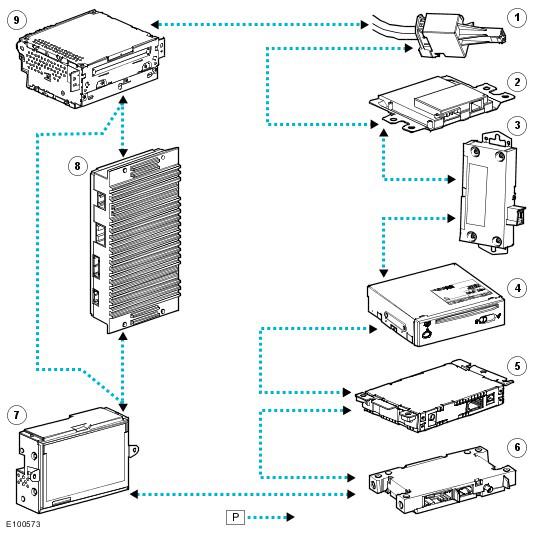

= MOST ring.
| Item Number | Description |
|---|---|
| 1 | Software download socket |
| 2 | Information and entertainment module |
| 3 | Auxiliary USB (universal serial bus) unit |
| 4 | Multi-media module |
| 5 | DAB/SDARS receiver |
| 6 | Cellular phone module |
| 7 | TSD (touch screen display) |
| 8 | Audio system amplifier |
| 9 | Integrated audio module |
