A/C Compressor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2012 Jaguar XFR, 2012 Jaguar XF, 2011 Jaguar XFR, 2011 Jaguar XF, and 2010 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

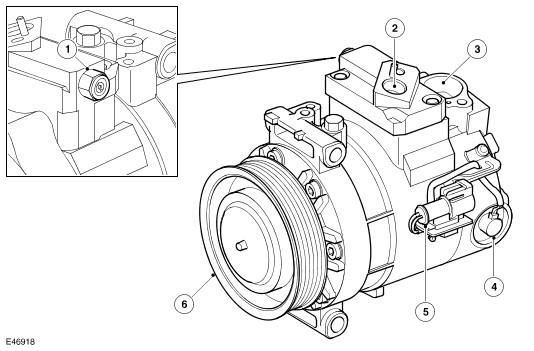

| Item Number | Description |
|---|---|
| 1 | Pressure relief valve |
| 2 | Outlet port |
| 3 | Inlet port |
| 4 | Solenoid valve |
| 5 | Electrical connector |
| 6 | Pulley |
The air conditioning (A/C) compressor circulates refrigerant around the system by compressing low pressure, low temperature vapor from the evaporator and discharging the resultant high pressure, high temperature vapor to the condenser.
The air conditioning (A/C) compressor is a permanently engaged variable displacement unit which is driven by the engine accessory drive belt. To protect the system from excessive pressure, a pressure relief valve is installed in the outlet side of the air conditioning (A/C) compressor. The pressure relief valve vents excess pressure into the engine compartment.
