Ambient Air Temperature Sensor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2012 Jaguar XFR, 2012 Jaguar XF, 2011 Jaguar XFR, 2011 Jaguar XF, and 2010 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

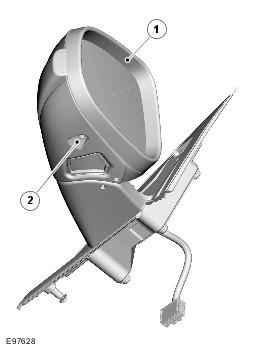

| Item Number | Description |
|---|---|
| 1 | left-hand (LH) door mirror |
| 2 | Ambient air temperature sensor |
The ambient air temperature sensor is a negative temperature coefficient (NTC) thermistor that provides the automatic temperature control (ATC) module with an input of external air temperature. The sensor is hard wired to the engine control module (ECM) and its signal is transmitted to the instrument cluster on the high speed controller area network (CAN) bus. The instrument cluster acts as a gateway and transmits the ambient air temperature signal to the automatic temperature control (ATC) module on the medium speed controller area network (CAN) bus. The sensor is installed in the left-hand (LH) door mirror, and is accessed by removing the mirror glass, cap and actuator.
