Climate Control Module: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2012 Jaguar XFR, 2012 Jaguar XF, 2011 Jaguar XFR, 2011 Jaguar XF, and 2010 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Refer to Battery Disconnect and Connect information.
Refer to INSTRUMENT PANEL CONSOLE (G1448158) information.

CAUTION: Take extra care not to damage the clips or screw threads. Failure to follow this instruction may result in damage to the climate control assembly.

CAUTION: Make sure that the component is correctly located on the locating dowels.

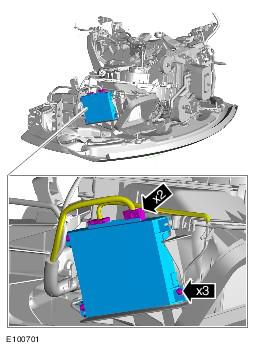

NOTE: RHD illustration shown, LHD is similar.

Torque: 1.3 nm.
