Removal And Installation: Removal

1. Remove the cover and disconnect the battery ground cable.

   For additional information, refer to: BATTERY, MOUNTING AND CABLES -- XK/X150 (Specifications).

2. Make the SRS system safe.

   For additional information, refer to: AIRBAG DISPOSAL  (Supplemental Restraint System (SRS) Depowering and Repowering, General Procedures).

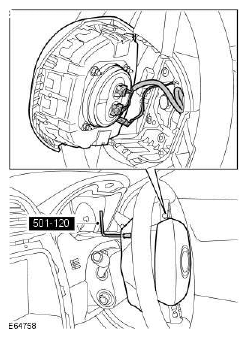

Using the special tool remove the driver air bag module.

• Rotate the steering wheel for access to slots.
• Carefully release the 2 clips.
• Disconnect the 3 electrical connectors.
