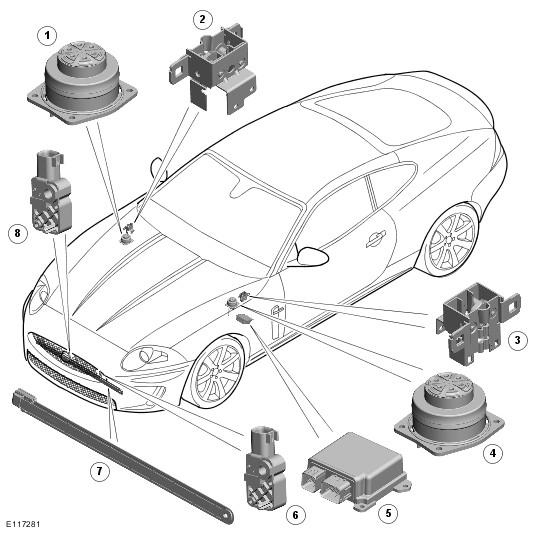

Component Location
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
RH (right hand) hood actuator |
| 2 |
RH hood latch |
| 3 |
LH (left hand) hood latch |
| 4 |
LH hood actuator |
| 5 |
Pedestrian protection system control module |
| 6 |
LH accelerometer |
| 7 |
PCS (pedestrian contact sensor) |
| 8 |
RH accelerometer |
