Removal And Installation: Removal
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Make the Supplemental Restraint System (SRS) safe.
Refer to: Standard Workshop Practices
- Disconnect the startup battery ground cable.
Refer to: Battery Disconnect And Connect
- Remove the driver airbag.
Refer to: Driver Airbag Module
-
NOTE: Make sure that the harness is routed to the position noted on removal.

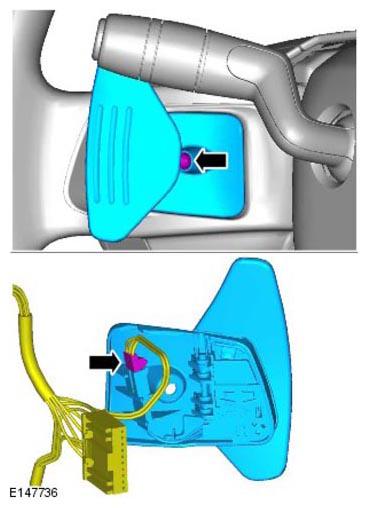

- Remove the retaining screws.
- Partially remove the paddle shifter.
- Disconnect the electrical connector.
- Remove the paddle shifter.

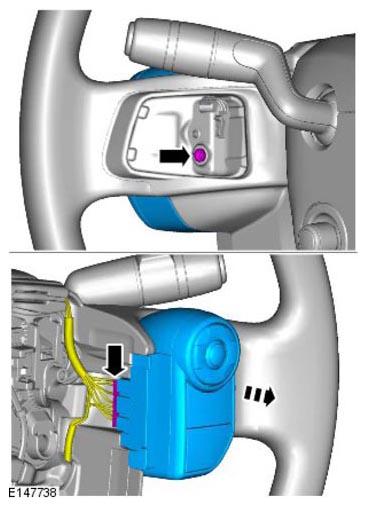

- Remove the retaining screw.
- Disconnect the electrical connector.
- 3. Remove the speed control switch.
