Removal And Installation: Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- For additional information, refer to: BATTERY DISCONNECT AND CONNECT .
- For additional information, refer to: COWL VENT SCREEN .
-

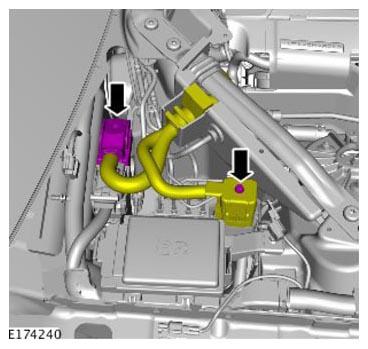

CAUTION: Before disconnecting or removing components, ensure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.

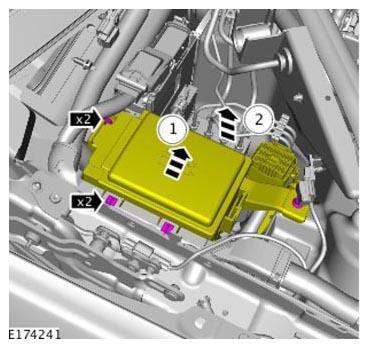

Torque Specification: 3.5 Nm
Torque Specification: 4 Nm
-
CAUTION:

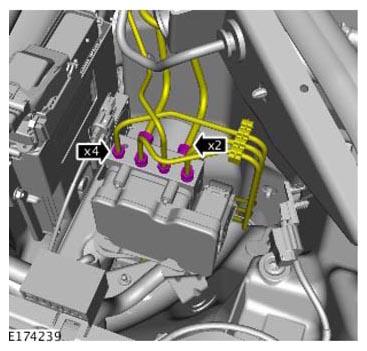

- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
- If brake fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
Torque Specification: 17 Nm
Torque Specification: 8 Nm

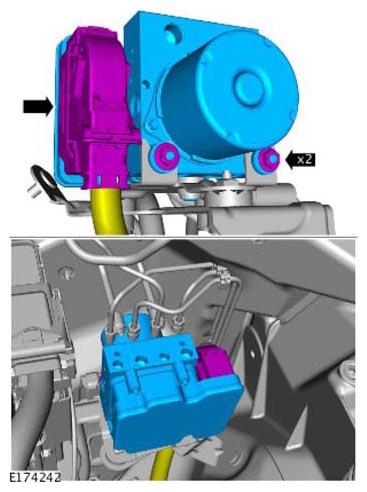

- Loosen but do not remove the 2 nuts.
