Abs Control Module

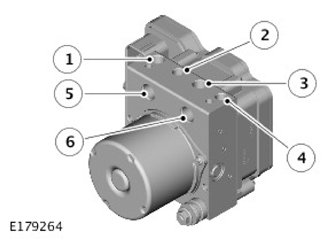

| ITEM | DESCRIPTION |
|---|---|
| 1 | Right rear brake outlet port |
| 2 | Left front brake outlet port |
| 3 | Right front brake outlet port |
| 4 | Left rear brake outlet port |
| 5 | Primary circuit inlet port |
| 6 | Secondary circuit inlet port |
CAUTION:
The ABS module and the HCU are a single unit and must not be separated.
The ABS control module is secured to a mounting bracket located between the front suspension tower and the secondary bulkhead on the opposite side to the hand of drive. The ABS module is mounted on the rear face of the HCU. The ABS control module uses the HCU to control all of the braking and stability functions by modulating hydraulic pressure to the individual wheel brakes.
If an ABS modulator fault is detected, the 'ABS FAULT' message appears in the IC message center and the amber warning indicator comes on.
