Battery Energy Control Module (BECM) Software Update (H441V6)

BATTERY ENERGY CONTROL MODULE (BECM) SOFTWARE UPDATE

SERVICE CAMPAIGN BULLETIN

SERVICE INFORMATION

To:  All National Sales Companies (NSCs), importers, retailers and authorized repairers.

For the Attention of:  The approved JLR retailer/authorized repairer.

Important:

FOR THE ATTENTION OF ALL:

DESCRIPTION OF ISSUE AND THE EFFECT ON VEHICLE OPERATION

A potential concern has been identified on specific vehicles within the above vehicle range.

Vehicles have experienced thermal overload which may show as smoke or fire, that may occur underneath the vehicle where the High Voltage  (HV) battery is located. Investigations are continuing.

A vehicle thermal overload condition such as fire or smoke can result in increased risk of occupant injury and/or injury to persons outside the vehicle, as well as property damage.

In line with recommendations made by manufacturers who have had similar issues and until such time as the safety recall remedy has been completed, JLR retailers/authorized repairers and customers must park away from structures. Where possible, vehicles must be charged outside. These precautionary measures must also be taken for 30 days after the update to allow sufficient time for the new software to analyze the HV  Battery condition and provide a driver warning if a risk exists.

For 2021 model year to 2024 model year vehicles, the updated Battery Energy Control Module (BECM)  software for the H441 recall will be deployed over the air as part of the 4.0.0 Software Over The Air (SOTA)  release. Vehicle Identification Number  (VIN) s in this population will be marked in the warranty system as complete when the SOTA  update is successfully installed. In the unlikely event that the SOTA  update does not install correctly, or if preferred, the customer can book into their JLR retailer/authorized repairer for the software update to be completed. As the JLR retailer/authorized repairer repair you must use the campaign workflow  H441 recall campaign and claim for it following the instructions in this Recall Action bulletin.

For 2019 model year to 2020 model year vehicles the software update must be completed using the campaign workflow  H441 Recall Action bulletin and claimed for following the instructions in this Recall Action bulletin.

This Recall affects vehicles operated by Waymo and Waymo is taking action to update vehicles in their control.

ACTION TO BE TAKEN

JLR has taken the decision to recall affected vehicles to repair the vehicle.

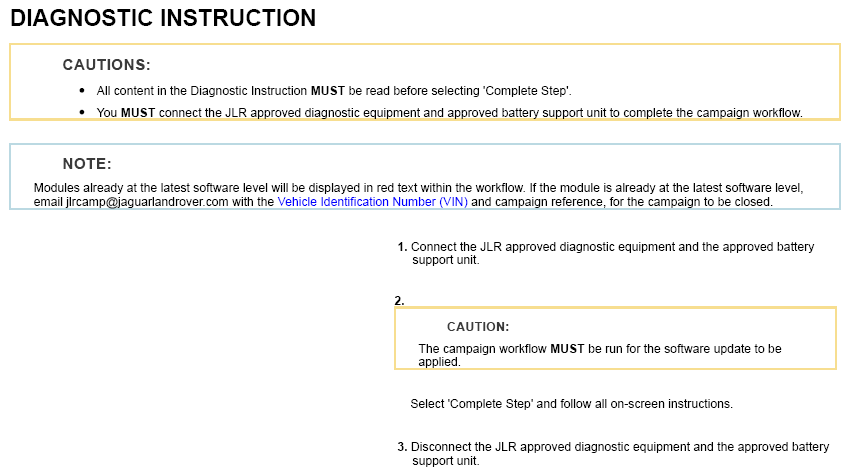

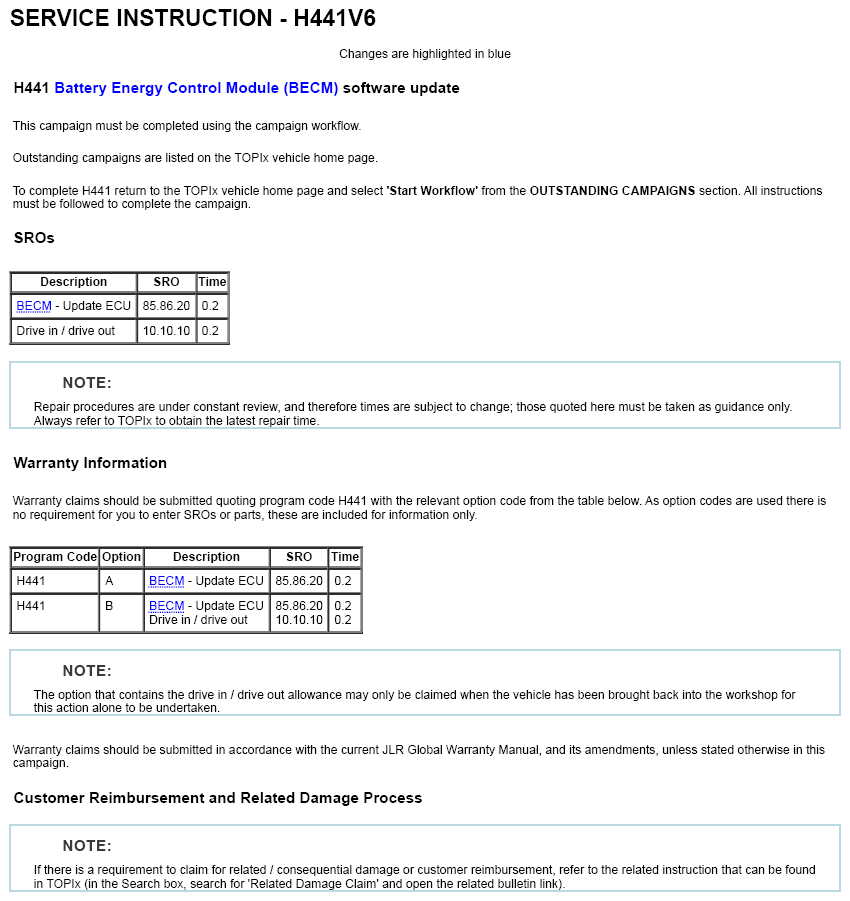

This campaign must be completed using the campaign workflow. Outstanding campaigns are listed on the TOPIx vehicle homepage. To complete H441 return to the TOPIx vehicle home page and select 'Start Workflow'  from the OUTSTANDING CAMPAIGNS  section. All instructions must be followed to complete the campaign.

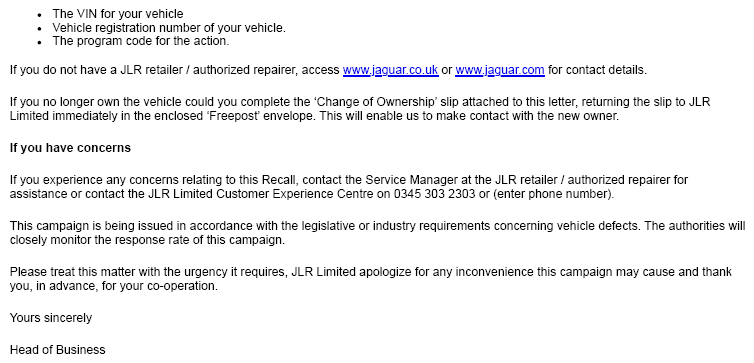

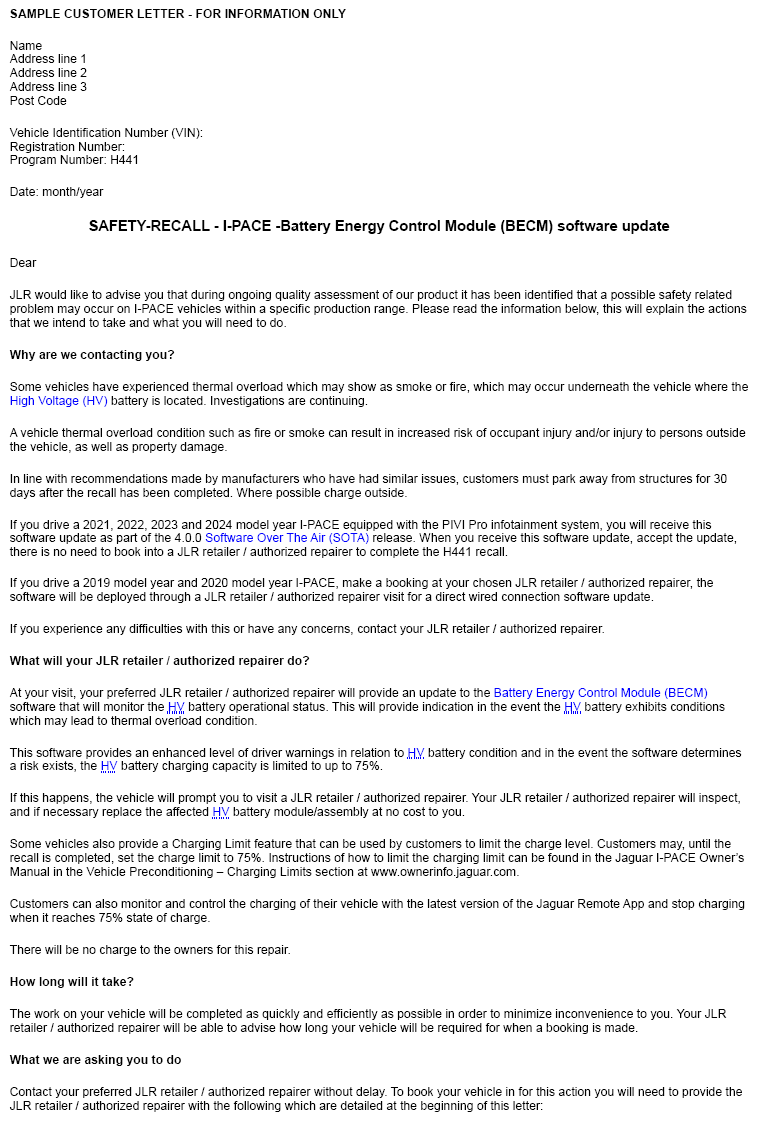

Following procedures appropriate to your market and as required by local legislation, owners of affected vehicles must be contacted requesting that the owner contact their nearest JLR retailer/authorized repairer as soon as possible to arrange for the repair to be completed. The National Sales Companies (NSCs), Importer, Regional Office or Government agency will contact the customers. If you have any questions about this process, contact your NSC/Importer or Regional Office for more information.

Check the JLR Warranty Portal to make sure affected vehicles are correctly identified prior to starting this campaign. The Warranty Portal will be updated to reflect only those vehicles affected.

JLR retailers/authorized repairers are reminded that they must not sell vehicles identified as affected by this campaign until such time as the repair has been successfully completed.

An owner may indicate that a repair has already been completed for this concern, in which case the full cost of the repair should be reimbursed. Refer to the warranty section of this campaign for details of the Customer Reimbursement and Related Damage Process. At the time of confirming a booking for a vehicle repair, make sure you check the Warranty Portal to confirm if there are any other outstanding campaigns, to make sure the correct parts are available and adequate workshop time is allocated for repairs to be completed in one visit.

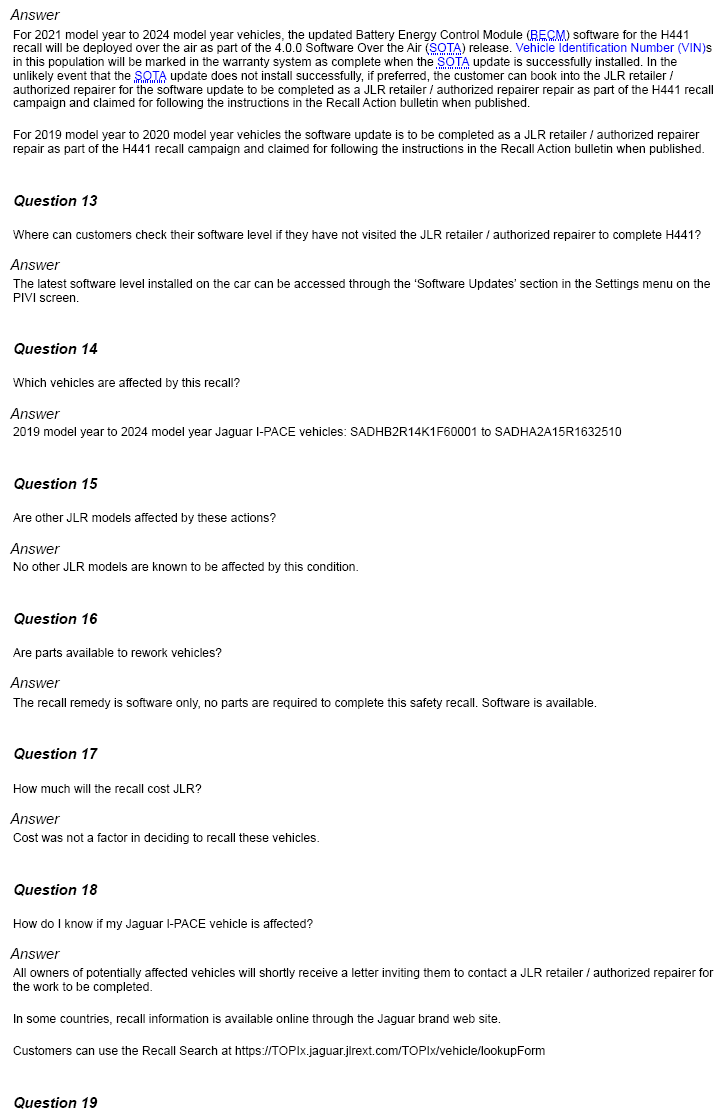

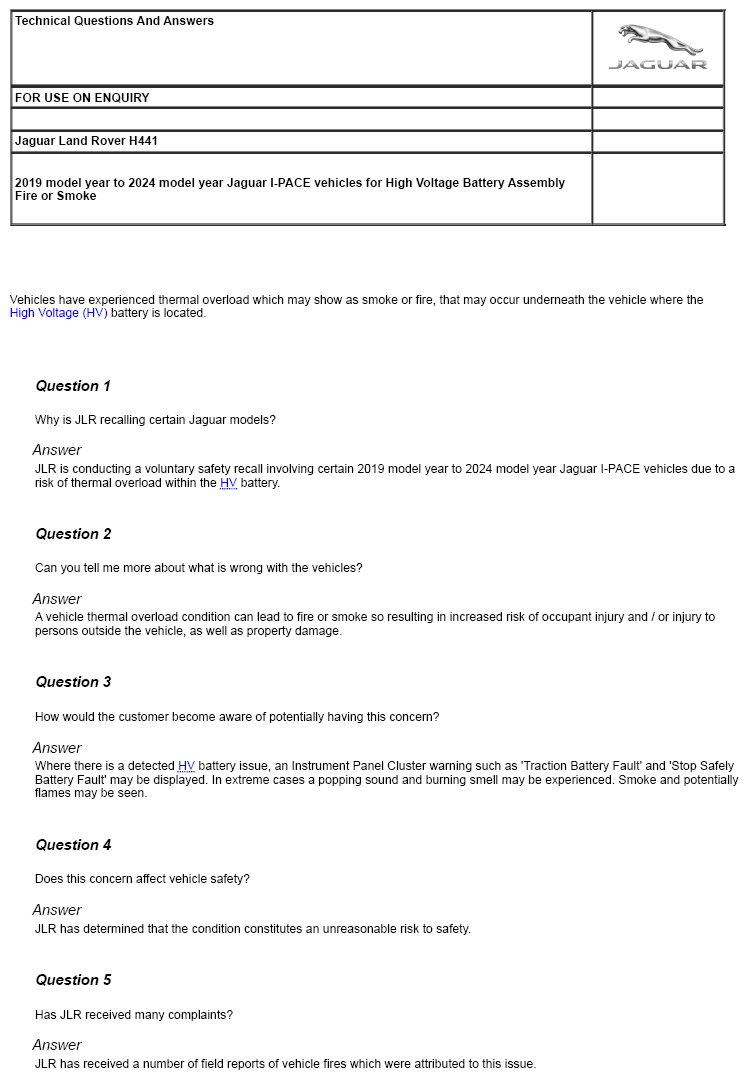

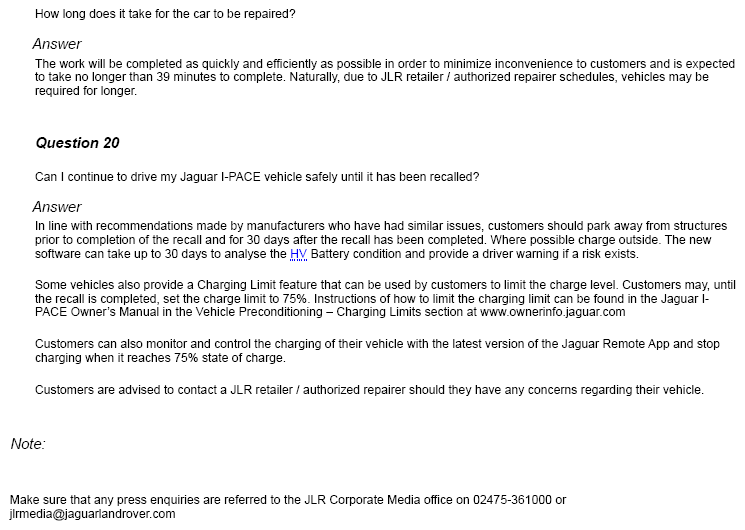

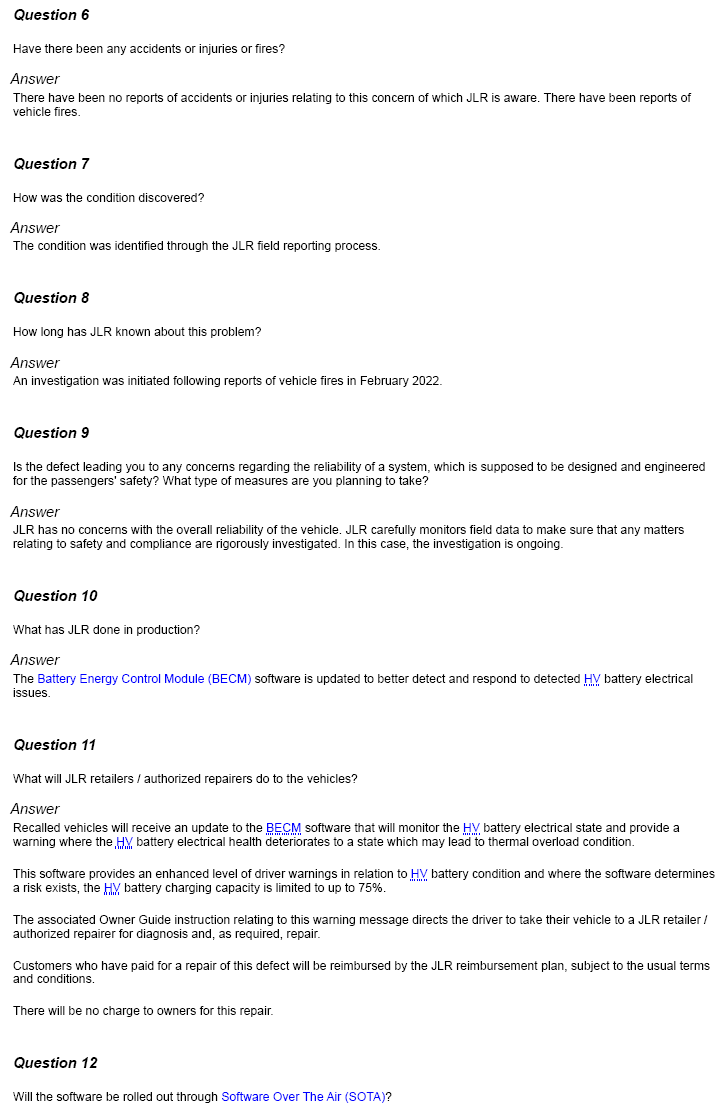

For information purposes, a Technical Question and Answer document is attached.

FOR THE ATTENTION OF NORTH AMERICAN TERRITORIES ONLY:

National Highway Traffic Safety Administration (NHTSA) reference number: 23V-369

Transport Canada (TC) reference number: 2023-302

Visit the British Brands Sales Suite (BBSS) website for a list of affected vehicles at your JLR retailer/authorized repairer. Unsold vehicles must be repaired prior to handover of the vehicle for retail sale.

REGULATORY INFORMATION

Jaguar Land Rover North America, LLC and Jaguar Land Rover Canada ULC have informed the National Highway Traffic Safety Administration (NHTSA) and Transport Canada (TC) of their intent to perform a Safety Recall on certain 2019 model year to 2024 model year I-PACE vehicles imported into the United States and Canadian markets. Information relating to this Safety Recall will be posted on the NHTSA and TC websites. United States Federal regulations require that JLR retailers/authorized repairers must be notified within a reasonable time after the manufacturer decides that a defect that relates to motor vehicle safety or a non-compliance exists. United States Federal Law requires JLR retailers/authorized repairers to complete any outstanding Safety Recall before a new vehicle is delivered to the buyer or lessee. Violation of this requirement by a JLR retailers/authorized repairers, in the USA only, could result in a maximum civil penalty of up to the equivalent of $27,168.00 USD per violation and the equivalent of $135,828,178.00 USD for a related series of violations. This Safety Recall serves as notification to all JLR retailers/authorized repairers in the United States and Federalized Territories and Canada that any affected new vehicles may not be sold and delivered for customer use until the Safety Recall repair is completed.

Jaguar Land Rover North America, LLC and Jaguar Land Rover Canada ULC recommends that affected sales demonstrator and loaner vehicles are repaired before use, and that used vehicles are repaired before sale. JLR retailers/authorized repairers who proceed against this recommendation, where legally permitted, must clearly and conspicuously disclose the open Safety Recall notice to the applicable customers.

Yours faithfully

Steve Oldham

Global Customer Care Quality Director
