Main Current Sensor (G2260677): Removal

WARNING:

This procedure must only be carried out after approval from Jaguar Land Rover (JLR).
Before any component replacement all technicians must follow the correct diagnostic guided flow for the Diagnostic Trouble Codes (DTC's) present on the vehicle.
This procedure must be done in the exact sequence shown below. Failure to do so could result in serious personal injury.
It is the responsibility of the EVCP to make sure they comply with any local legislation regarding working with High Voltages (HV) within this procedure.

NOTE:

This procedure must be done under a Permit To Work (PTW).
All Permit To Work (PTW) documents must be kept for a minimum of 5 years.
This procedure contains illustrations showing certain components removed to provide extra clarity.

This procedure must only be carried out, if directed to do so by the associated diagnostic guided flow .
WARNING: Jaguar Land Rover (JLR) Electric Vehicle Competent Person (EVCP) trained technicians only.
- This procedure involves work on components associated with the High Voltage (HV) system. Only technicians qualified to Electric Vehicle Competent Person (EVCP) level or higher are allowed to do this procedure . It is mandated that all technicians involved with the steps in this procedure have read and understood the EV Safety Rules.
Refer to: ELECTRIC VEHICLE SAFETY RULES .
CAUTION: Electrostatic discharge gloves must be worn.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

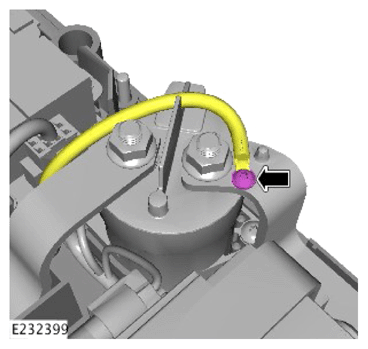

- Remove and discard the temperature sensor bolt.
General Equipment: Electrostatic discharge gloves
CAUTION:
- Electrostatic discharge gloves must be worn.
- Note the orientation of the High Voltage (HV) wiring harness cable shoes before removing.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

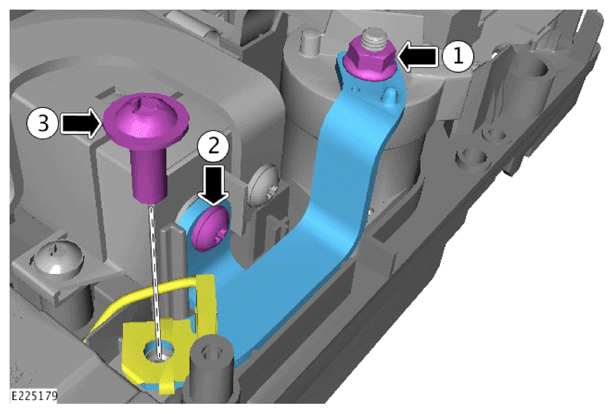

- Remove and discard the busbar nut.
  General Equipment: Electrostatic discharge gloves
- Remove and discard the busbar to auxiliary circuit contactor bolt.
- Remove and discard the busbar to main current sensor bolt.
- Remove the busbar.
CAUTION:
- Electrostatic discharge gloves must be worn.
- Note the orientation of the High Voltage (HV) wiring harness cable shoe before removal.
- Note the orientation of the busbar before removal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

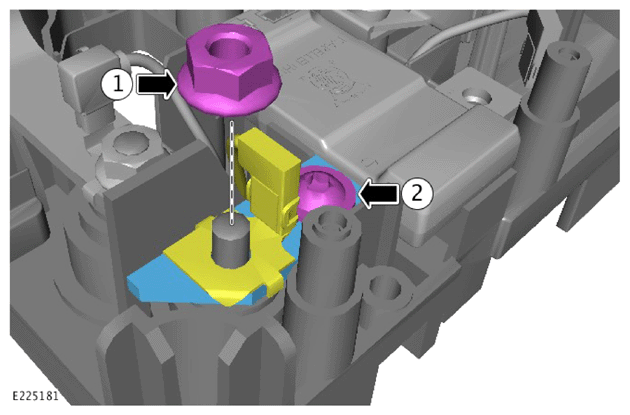

- Remove and discard the busbar nut.
  General Equipment: Electrostatic discharge gloves
- Remove and discard the busbar to main current sensor bolt.
- Remove the busbar.
CAUTION: Electrostatic discharge gloves must be worn.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

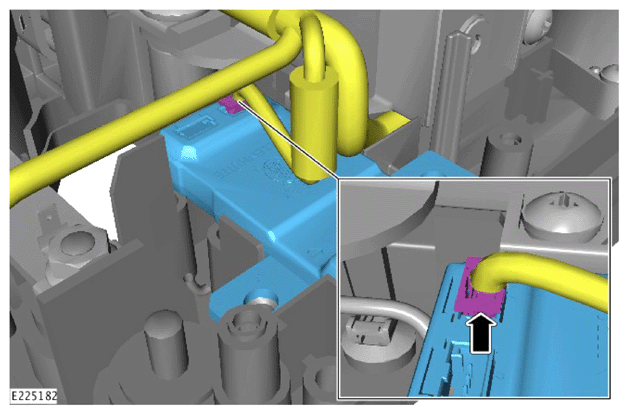

Disconnect the electrical connector.
General Equipment: Electrostatic discharge gloves
Remove the main current sensor.
