Positive Contactor (G2260683): Installation

  1. CAUTION: Electrostatic discharge gloves must be worn.

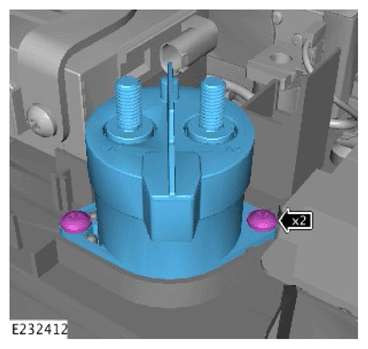

    G13923651Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the positive contactor.

      General Equipment: Electrostatic discharge gloves

    • Install 2 new M5 X 18 bolts.

    Renew Part: Battery Electrical Module (BEM) Positive contactor bolt(s) - M5 X 18  Quantity: 2  .

    Torque  : 4.3Nm

  2. CAUTION:
    • Electrostatic discharge gloves must be worn.
    • Before installing any High Voltage (HV) electrical component make sure the mating surfaces are cleaned using an alcohol based cleaning fluid using a lint free cloth only.

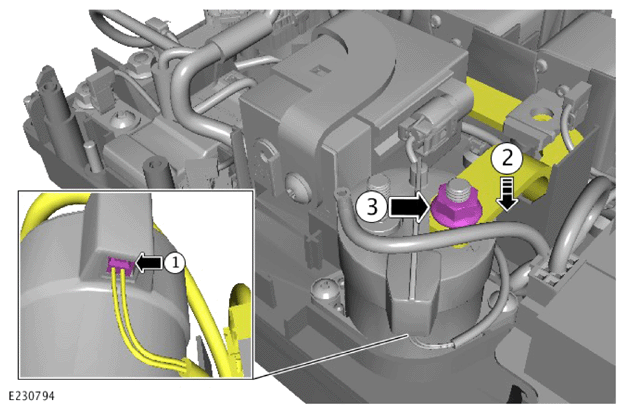

    G13923652Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Connect the electrical connector.

      General Equipment: Electrostatic discharge gloves

    • Position the busbar onto the positive contactor.

      General Equipment: Lint free cloth

      General Equipment: Alcohol based cleaning fluid

    • Install a new M8 nut.

    Renew Part: Battery Electrical Module (BEM) Busbar nut(s) - M8  Quantity: 1  .

    Torque  : 10Nm

  3. CAUTION:
    • Electrostatic discharge gloves must be worn.
    • Before installing any High Voltage (HV) electrical component make sure the mating surfaces are cleaned using an alcohol based cleaning fluid using a lint free cloth only.
    • Make sure the HV wiring harness cable shoe is installed to the correct orientation.

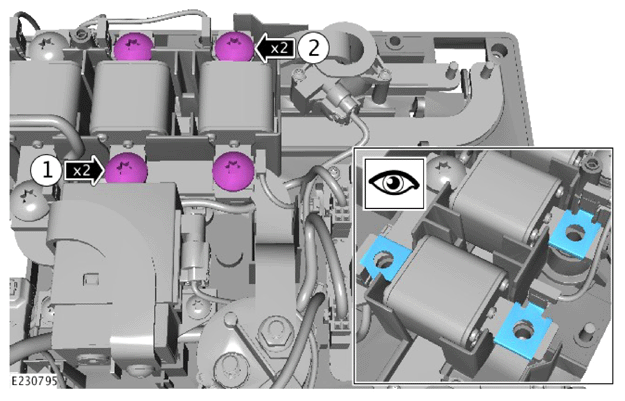

    G13923653Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install and tighten 2 new M10 X 22 fuse bolts.

      General Equipment: Electrostatic discharge gloves

      General Equipment: Lint free cloth

      General Equipment: Alcohol based cleaning fluid

      Renew Part: Battery Electrical Module (BEM) Fuse to busbar bolt(s) - M10 X 22  Quantity: 2  .

      Torque  : 24Nm

    • Tighten the 2 M10 X 22 fuse bolts.

    Torque  : 24Nm

  4. CAUTION:
    • Electrostatic discharge gloves must be worn.
    • Before installing any High Voltage (HV) electrical component make sure the mating surfaces are cleaned using an alcohol based cleaning fluid using a lint free cloth only.
    • Make sure the HV wiring harness cable shoe is installed to the correct orientation.

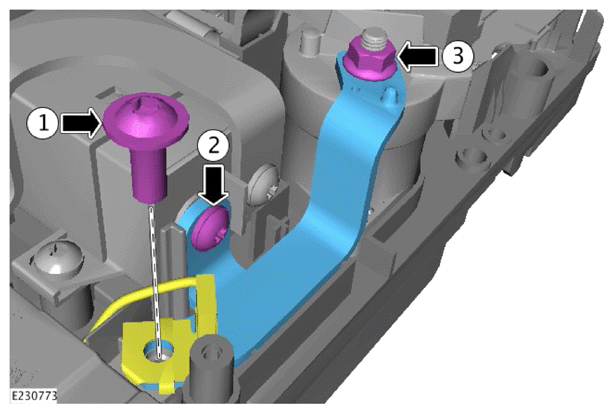

    G13923654Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the busbar.

      General Equipment: Electrostatic discharge gloves

      General Equipment: Lint free cloth

      General Equipment: Alcohol based cleaning fluid

    • Install a new M8 X 20 busbar to main current sensor bolt.

      Renew Part: Battery Electrical Module (BEM) Busbar bolt(s) - M8 X 20  Quantity: 1  .

      Torque  : 19Nm

    • Install a new M6 X 10 busbar to auxiliary circuit contractor bolt.

      Renew Part: Battery Electrical Module (BEM) Busbar bolt(s) - M6 X 10  Quantity: 1  .

      Torque  : 5.5Nm

    • Install a new M8 nut.

    Renew Part: Battery Electrical Module (BEM) Busbar nut(s) - M8  Quantity: 1  .

    Torque  : 10Nm

  5. CAUTION:
    • Electrostatic discharge gloves must be worn.
    • Before installing any High Voltage (HV) electrical component make sure the mating surfaces are cleaned using an alcohol based cleaning fluid using a lint free cloth only.

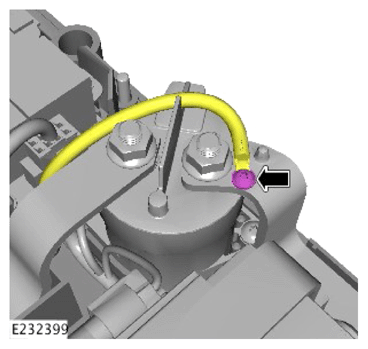

    G13923655Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install a new M3.5 X 5 temperature sensor bolt.

    General Equipment: Electrostatic discharge gloves

    General Equipment: Lint free cloth

    General Equipment: Alcohol based cleaning fluid

    Renew Part: Battery Electrical Module (BEM) Temperature sensor bolt - M3.5 X 5  Quantity: 1  .

    Torque  : 1.5Nm

  6. CAUTION: Electrostatic discharge gloves must be worn.

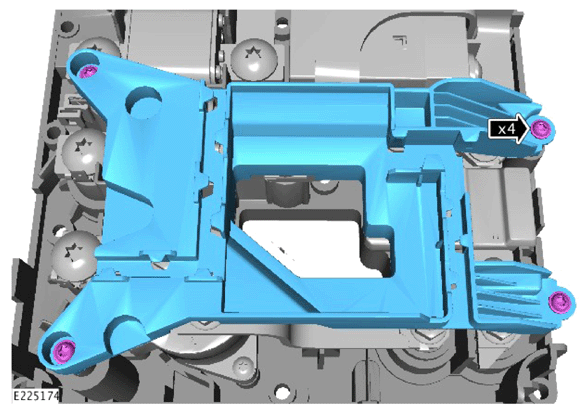

    G13923656Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the Battery Energy Module (BEM) harness support bracket.

      General Equipment: Electrostatic discharge gloves

    • Install 4 new 5 X 16 screws.

    Renew Part: Battery Electrical Module (BEM) harness support bracket bolt(s) - 5 X 16  Quantity: 4  .

    Torque  : 5Nm

  7. CAUTION: Electrostatic discharge gloves must be worn.

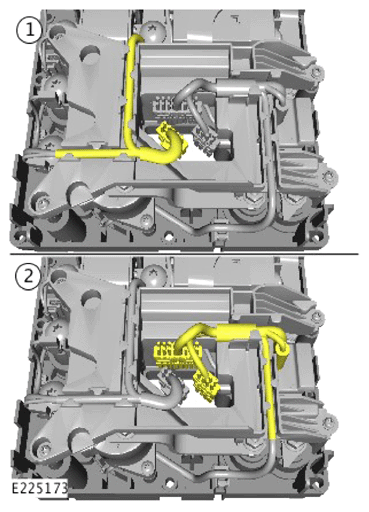

    G13923657Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the HV wiring harness on to the harness support bracket.

      General Equipment: Electrostatic discharge gloves

    • Install the low voltage wiring harness on to the harness support bracket.
  8. CAUTION:
    • Electrostatic discharge gloves must be worn.
    • Take care not to damage the High Voltage (HV) electrical connector wiring harness.

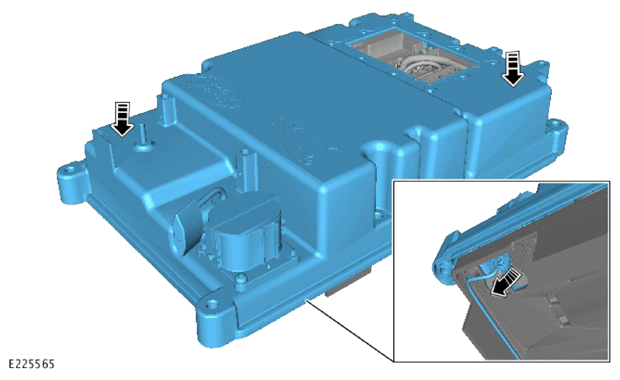

    G13923658Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the BEM cover.

      General Equipment: Electrostatic discharge gloves

    • Install the HV connector wiring harness to the BEM base.
  9. CAUTION: Make sure that both the Battery Energy Module (BEM) lid and BEM base are held as the BEM is turned over.

    Carefully turn the BEM over.

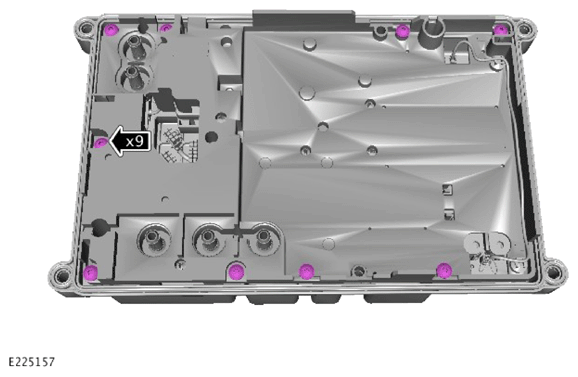

  10. G13923659Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install 9 new M6 X 28 BEM base bolts.

    Renew Part: Battery Electrical Module (BEM) Baseplate bolt(s) - M6 X 28  Quantity: 9  .

    Torque  : 8.5Nm

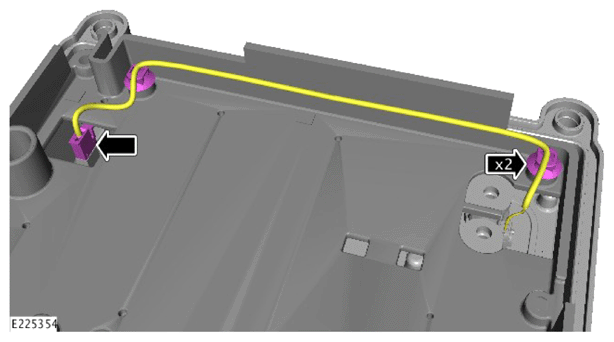

  11. G13923660Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the wiring harness on to the BEM base.
    • Connect the electrical connector to the printed circuit board.
  12. CAUTION: Before installing any High Voltage (HV) electrical component make sure the mating surfaces are cleaned using an alcohol based cleaning fluid using a lint free cloth only.

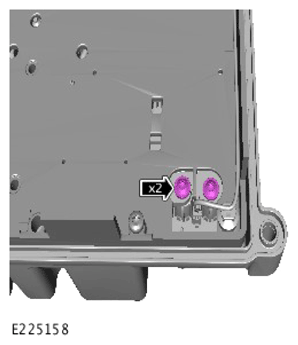

    G13923661Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install 2 new M6 X 16 busbar to HV electrical connector bolts.

    General Equipment: Lint free cloth

    General Equipment: Alcohol based cleaning fluid

    Renew Part: Battery Electrical Module (BEM) High Voltage connector to busbar bolt(s) - M6 X 16

    Quantity: 2  .

    Torque  : 9.5Nm

  13. Install the BEM.

    Refer to: BATTERY ELECTRICAL MODULE .
