Locking Hubs - Warn Selective Spring-Lock: Identification

All Warn Hubs employ BRASS control knobs to engage and disengage locking mechanism. Model number of hub is stamped into recesses of control knob. Model numbers for Warn Selective Spring-Lock Hubs are as follows:

M166, M167, M175, M197

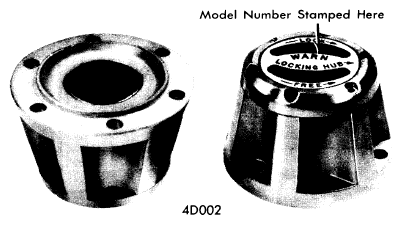

Fig 1: INTERNAL TYPE SPRING-LOCK HUB

Courtesy of NOT AVAILABLE

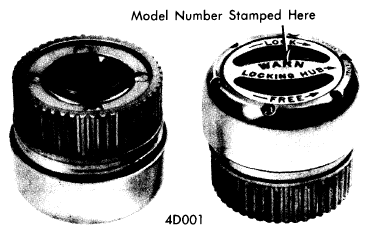

Fig 2: EXTERNAL TYPE SPRING-LOCK HUB

Courtesy of NOT AVAILABLE
