Tune-Up - 6 CYL: Distributor

Point Gap .016"
Cam Angle 29°
Breaker Arm Spring Tension 17-22 ozs.
Condenser Capacity .25-.28 mfd.

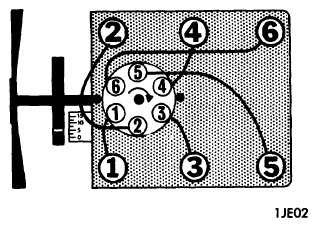

Fig 1: Firing Order & Timing Marks
G09324945Courtesy of CHRYSLER GROUP, LLC
