Tailgate Window: Description

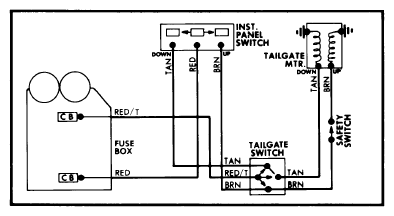

System consists of an electrically operated tailgate window utilizing two operating circuits. Window is operated by an instrument panel switch with the ignition switch at "ON" position, or an external key switch mounted in the tailgate door. A safety switch prevents operation of the window by either switch when tailgate is open. Window is controlled by a gearbox type regulator and 12 volt DC reversible direction motor with protection by a 30 ampere circuit breaker located at the fuse block. Window retracts into the tailgate door.
