Removal & Installation

Remove air cleaner and disconnect motor connector. Remove retaining screw and unit from carburetor. To install, reverse removal procedure and tighten screw to 25 INCH Lbs.

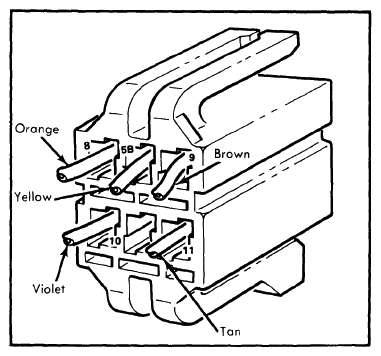

Fig 1: Stepper Motor Connector Terminal Identification
G09337300Courtesy of CHRYSLER GROUP, LLC
