Power Windows: Description
All Cherokee and Wagoneer models have a tape driven window regulator system. When motor is activated, the drive gear moves the flex rack along a T-track and raises or lowers the window glass.

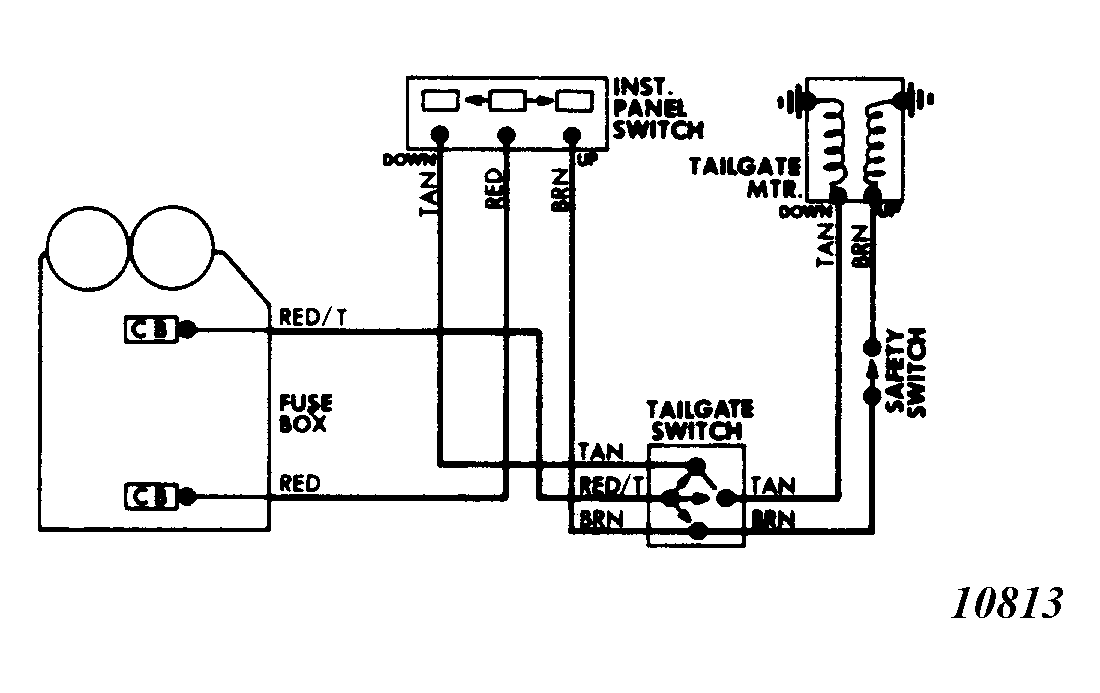

On Grand Wagoneer, the system consists of an electrically-operated tailgate window and individual motors at all side windows. Tailgate window operates on 2 circuits, from an instrument panel switch or an external key switch at the tailgate.

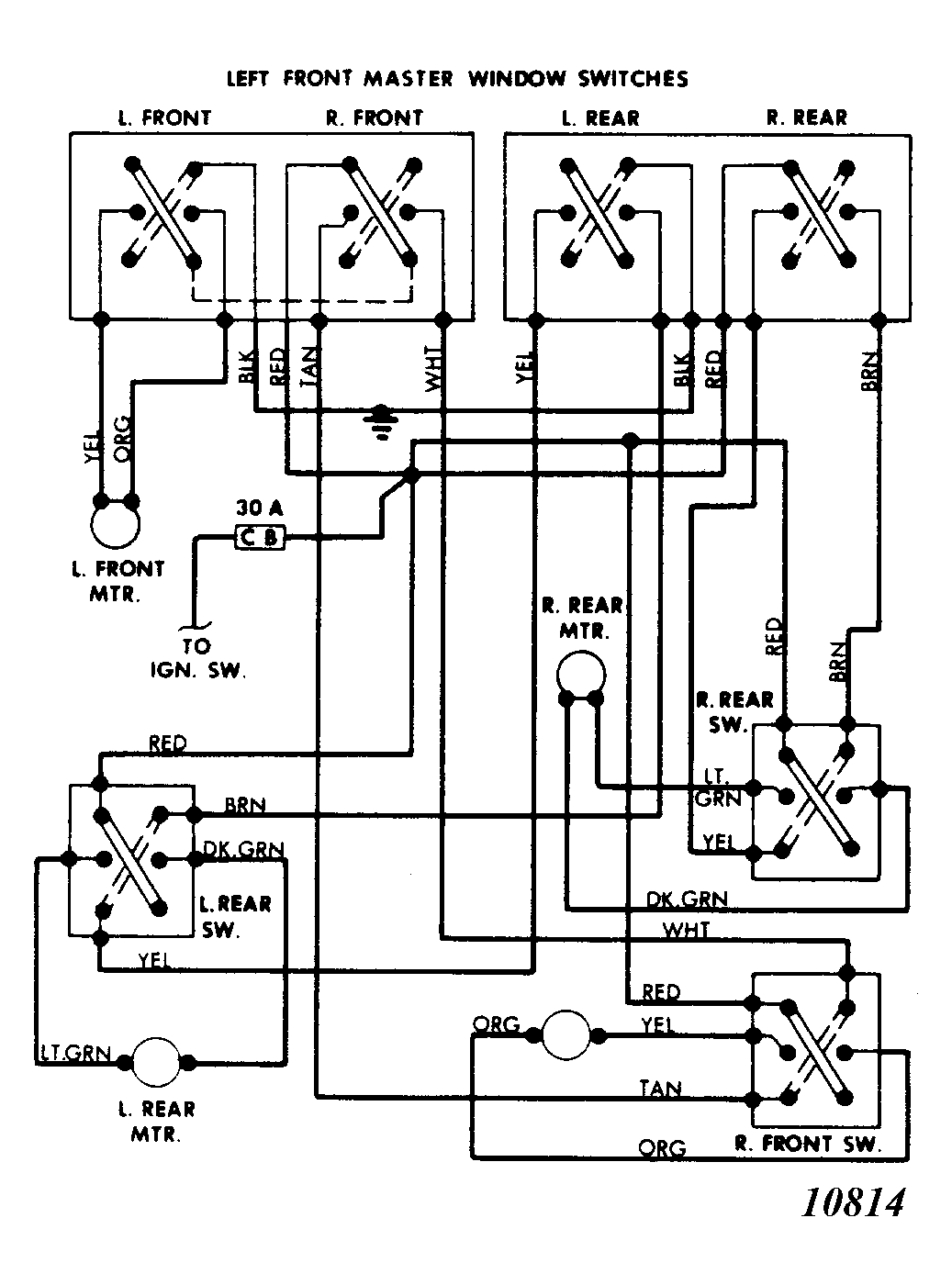

Side windows are operated by individual switches at each door, or by a complete set of control switches at the instrument panel. The electric tailgate window system consists of a safety switch, gearbox-type regulator, 12-volt DC motor, wiring, connections and a 30-ampere circuit breaker at the fuse block.
The electric side window system consists of regulator motors, switches, actuators and actuator rods, wiring and connections, and a 30-ampere circuit breaker located at the fuse block.
