Test 3: Ignition On: Input

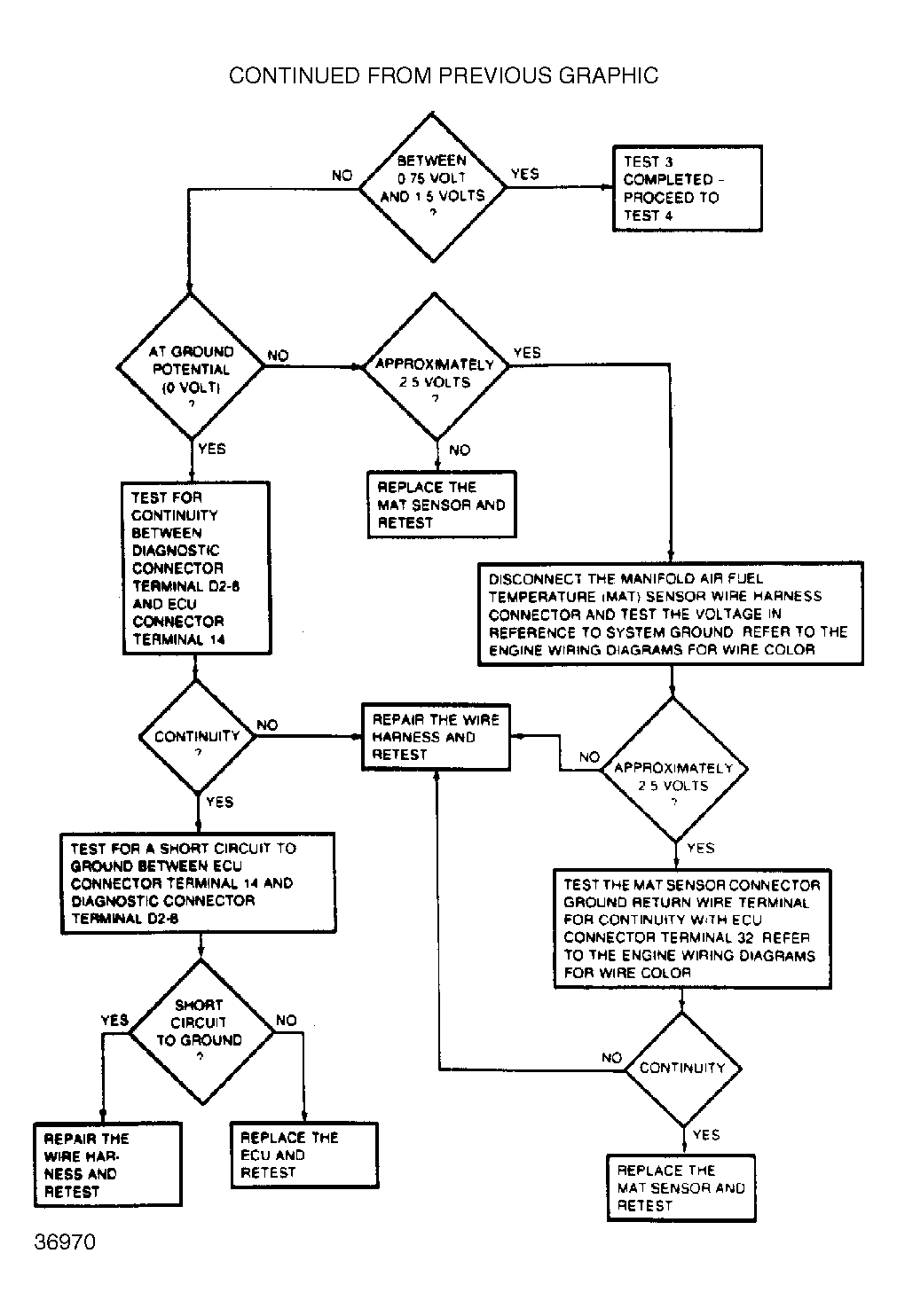

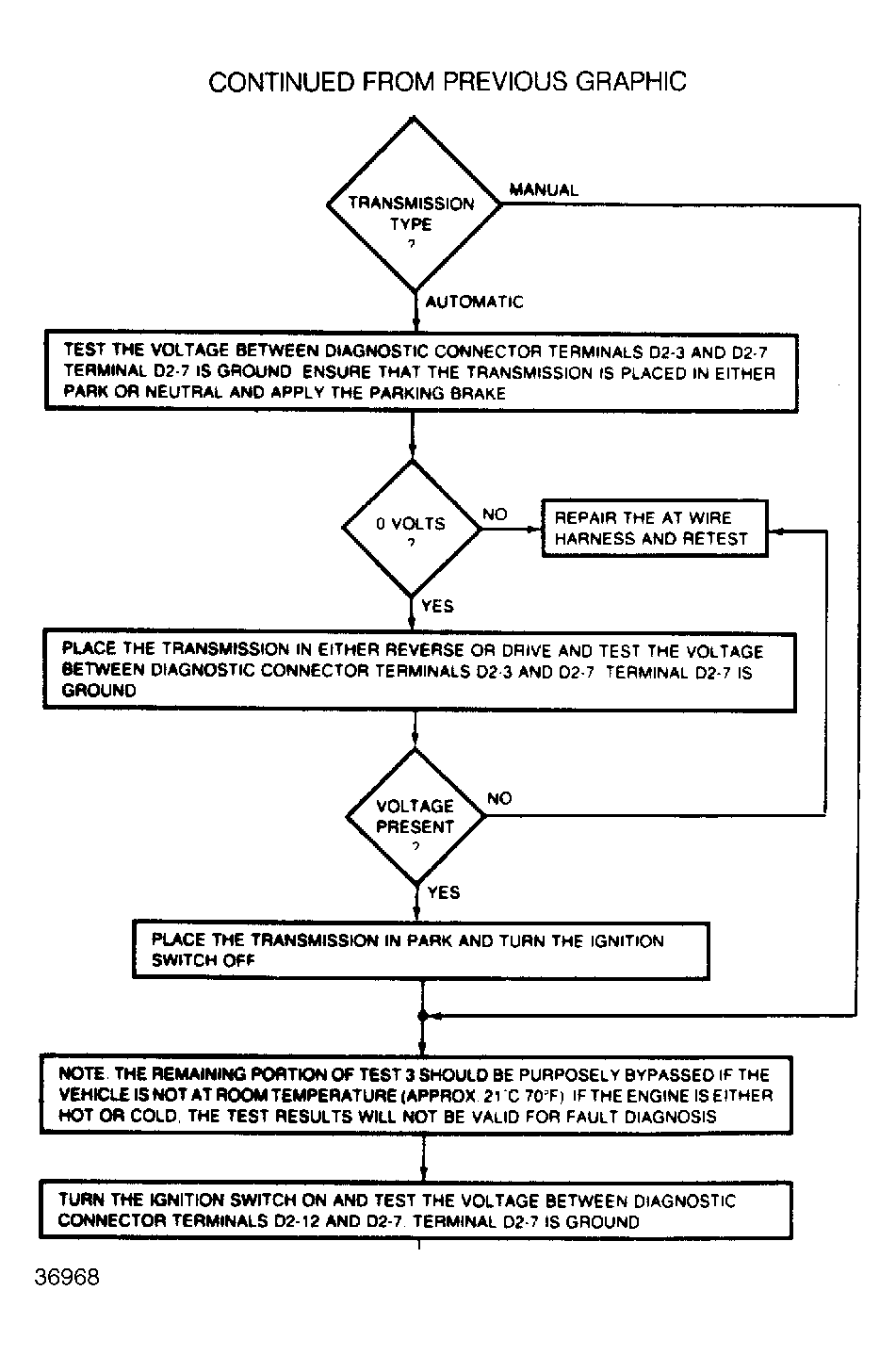

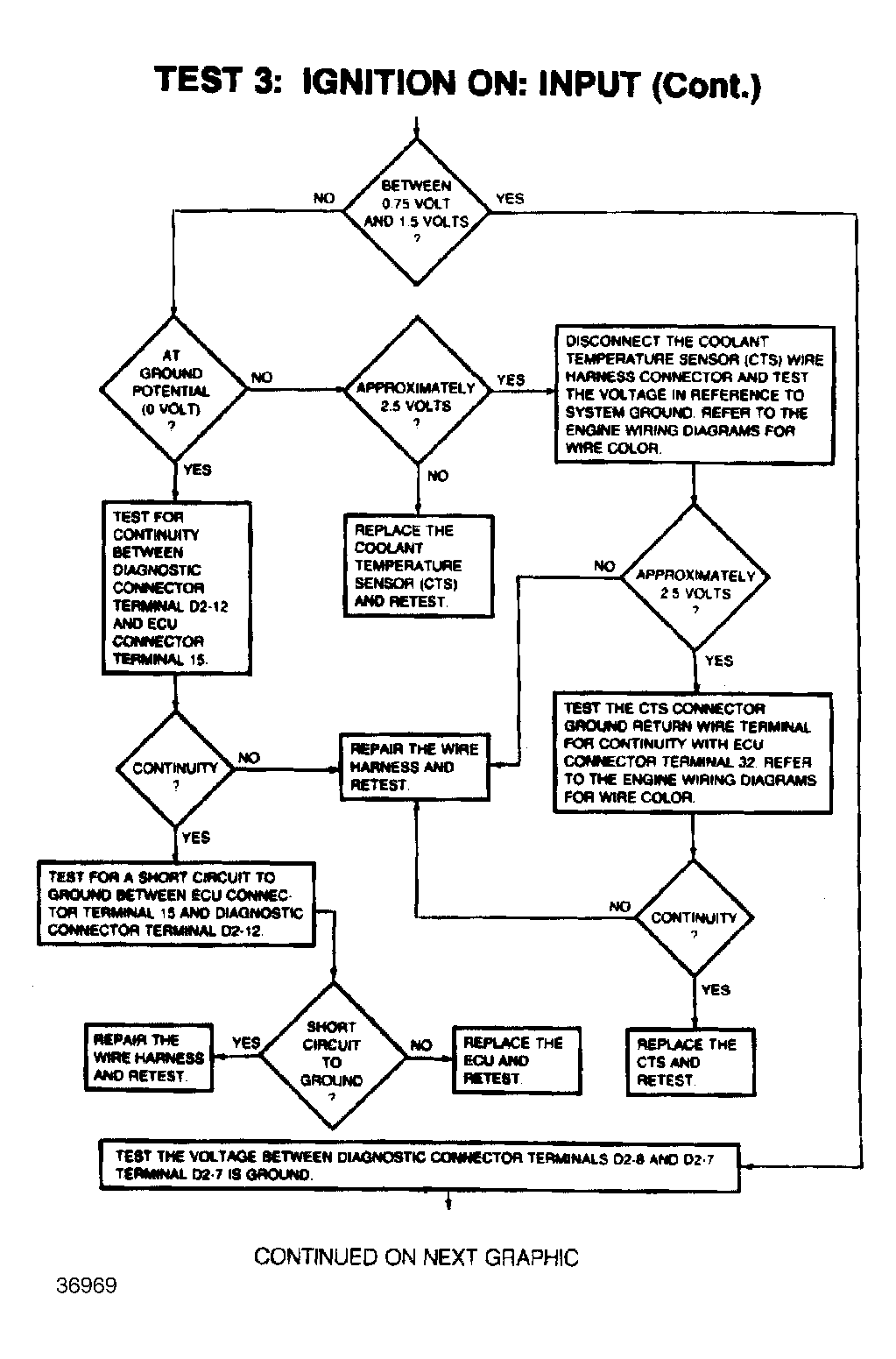

Fig 1: Test 3: Ignition On: Input (1 of 6)

Fig 2: Test 3: Ignition On: Input (2 of 6)

Fig 3: Test 3: Ignition On: Input (3 of 6)

Fig 4: Test 3: Ignition On: Input (4 of 6)

Fig 5: Test 3: Ignition On: Input (5 of 6)

Fig 6: Test 3: Ignition On: Input (6 of 6)
