Connector Identification

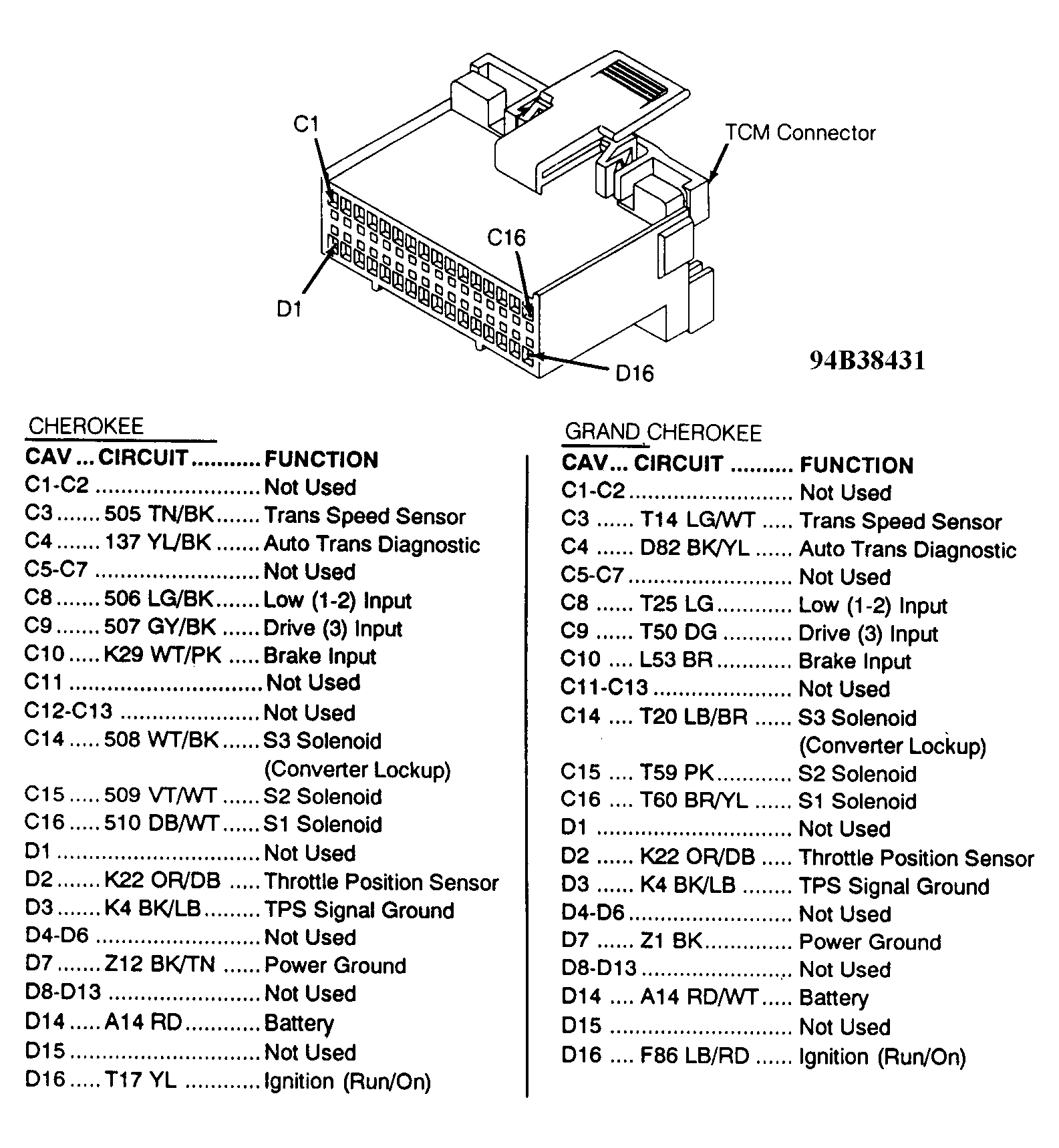

Fig 1: TCM Connector Terminals I.D., Circuits & Functions
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
