Control Switch Continuity (Except Wrangler)

Use a 12-volt test light to test control switch continuity. Connect test light to wires as indicated in CONTROL SWITCH CONTINUITY TEST CHART. See Fig 1 .

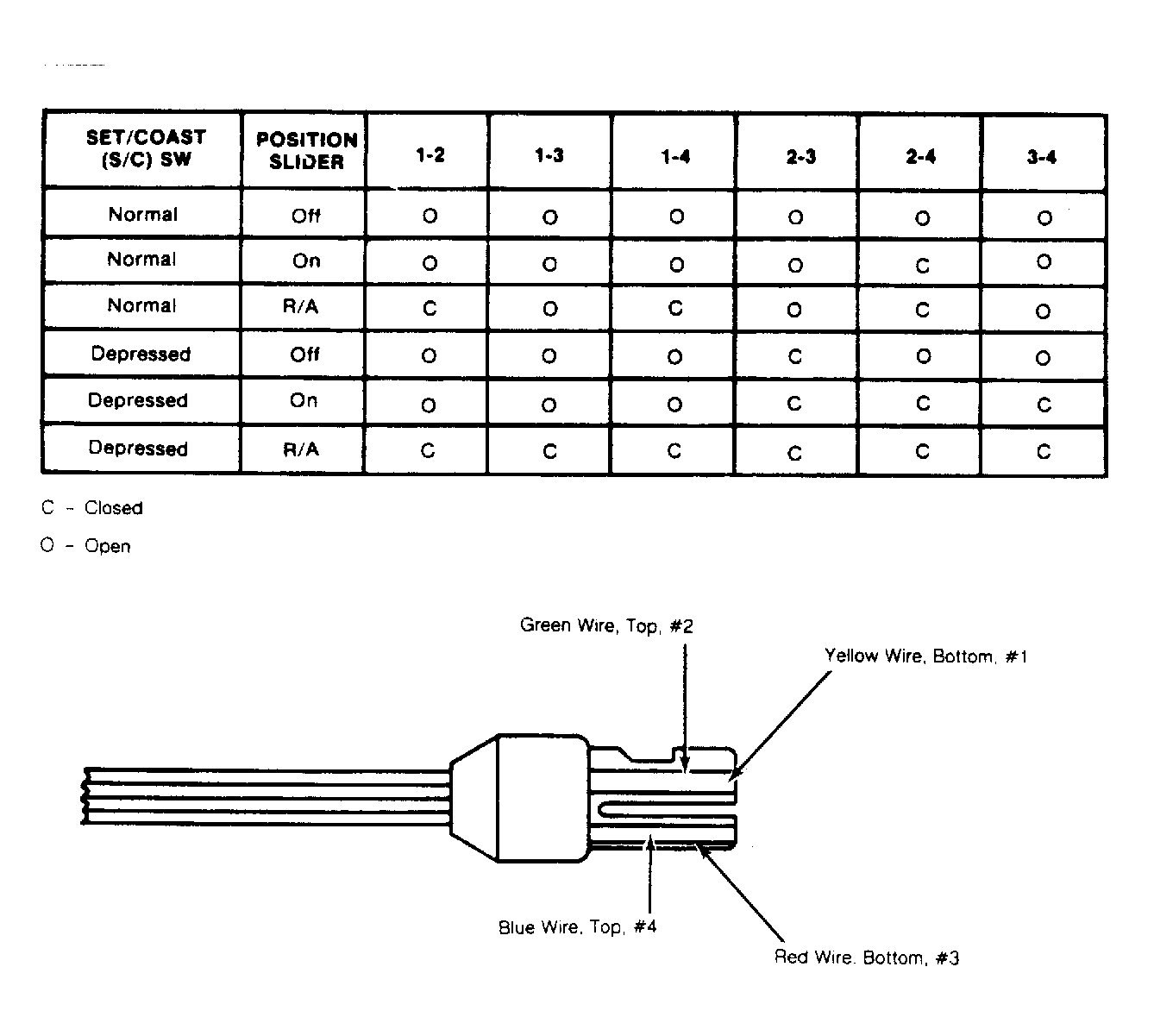

Fig 1: Cherokee, Comanche, Wagoneer & Wrangler Control Switch Continuity Test Chart

Courtesy of AMERICAN MOTORS/JEEP CORP.

WRANGLER CRUISE CONTROL TESTING

Conditions

Lights "ON"

Control Switch "ON" & Set Switch Depressed

No. 1

Control Switch "ON"

No. 2

Ignition "ON" & Brake or Clutch Pedal Depressed

No. 3 & No. 4

Cruise Control & Resume/Accel "ON"

No. 5 & No. 6

Cruise & Resume/Accel "ON" & Engine Running ⁽¹⁾

No. 5 & No. 6

⁽¹⁾	Servo will pull throttle wide open. Keep RPM at a safe level by releasing cruise control switch.
