Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| Cruise Control Module | Below fuse block. | |
| Ignition Module | ||

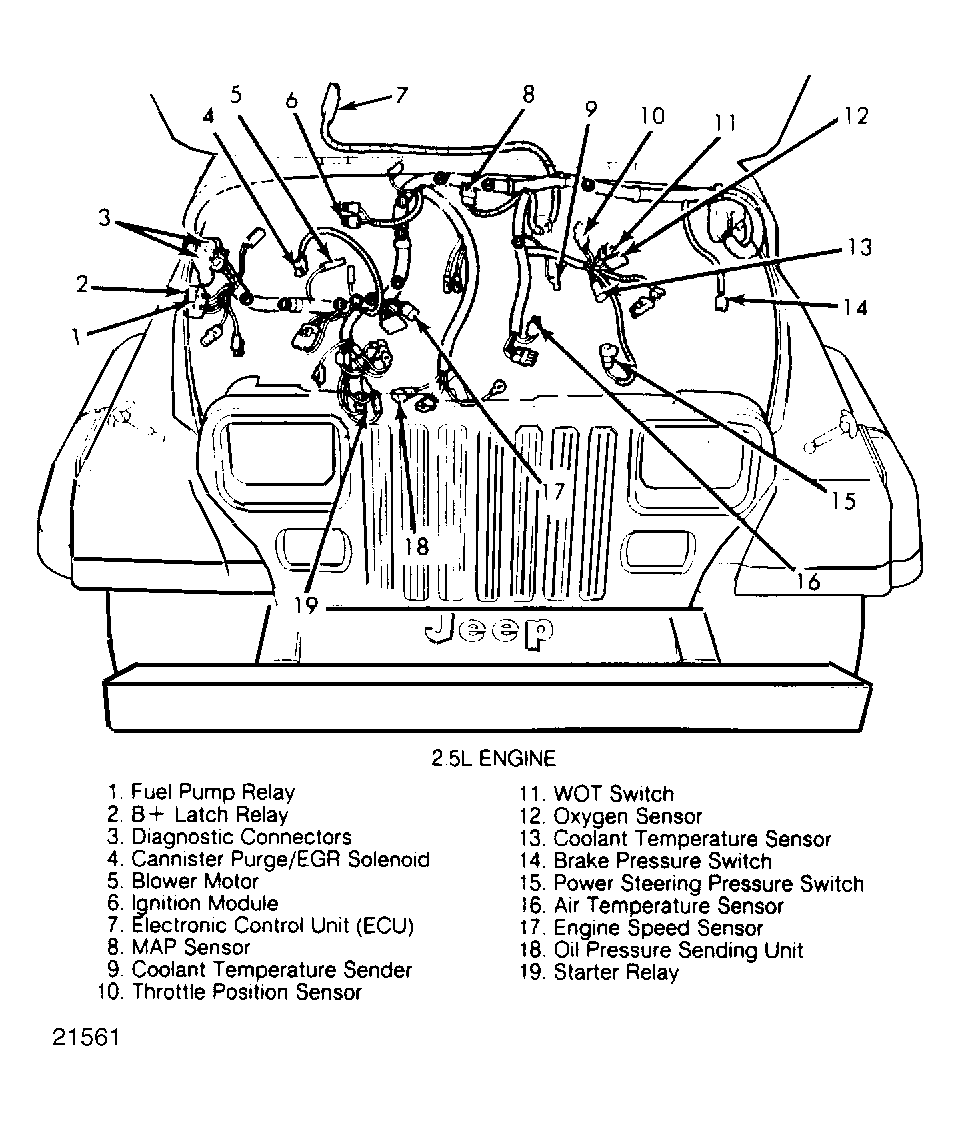

| 2.5L | Left side of firewall. See Figure. | |

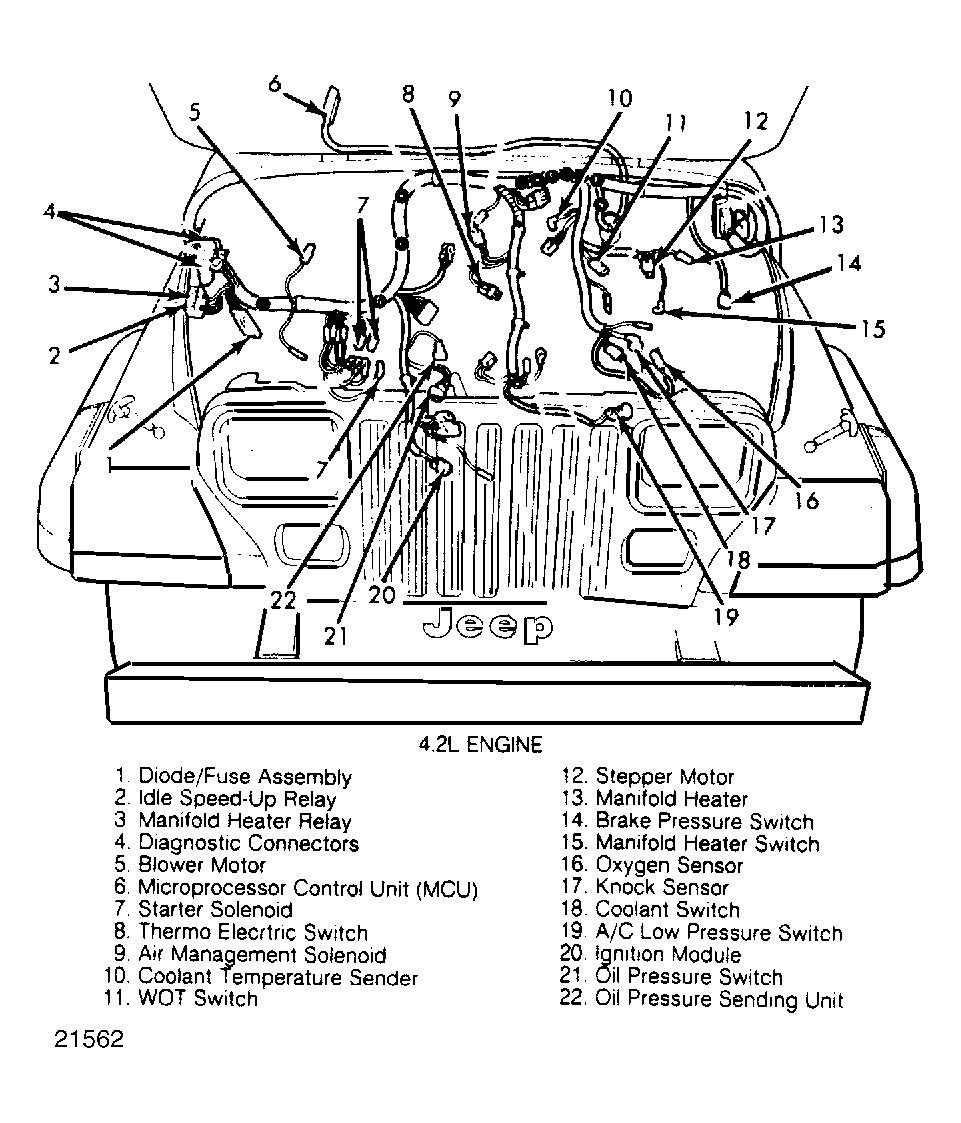

| 4.2L | Left side of wheel well. See Figure. | |
| Micro Computer Unit (MCU) (4.2L) | Underneath center of instrument panel. | |
| Windshield Wiper Delay Module | Under lower left side of instrument panel. | |
