AX4 Transmission - Exploded Views
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

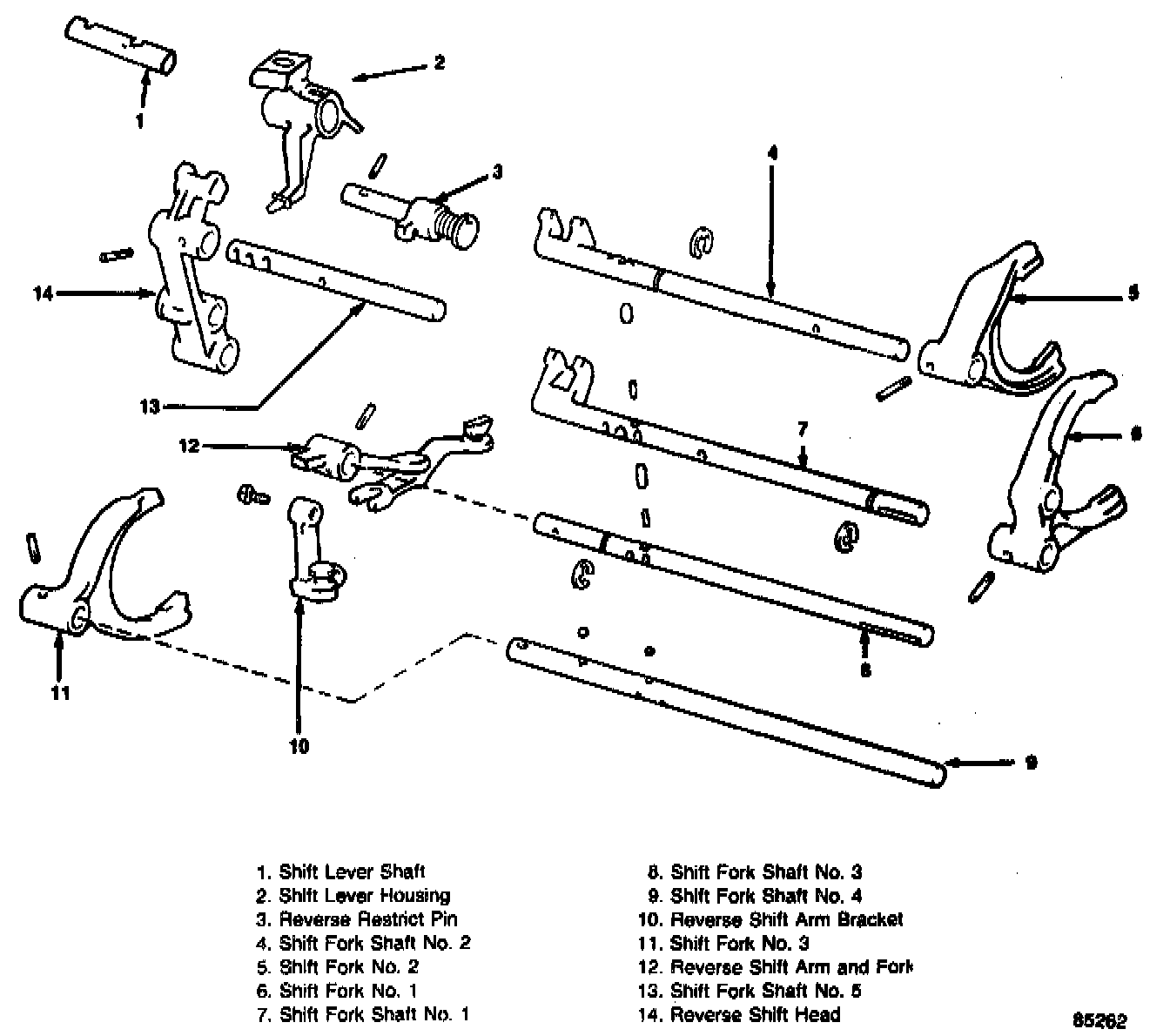

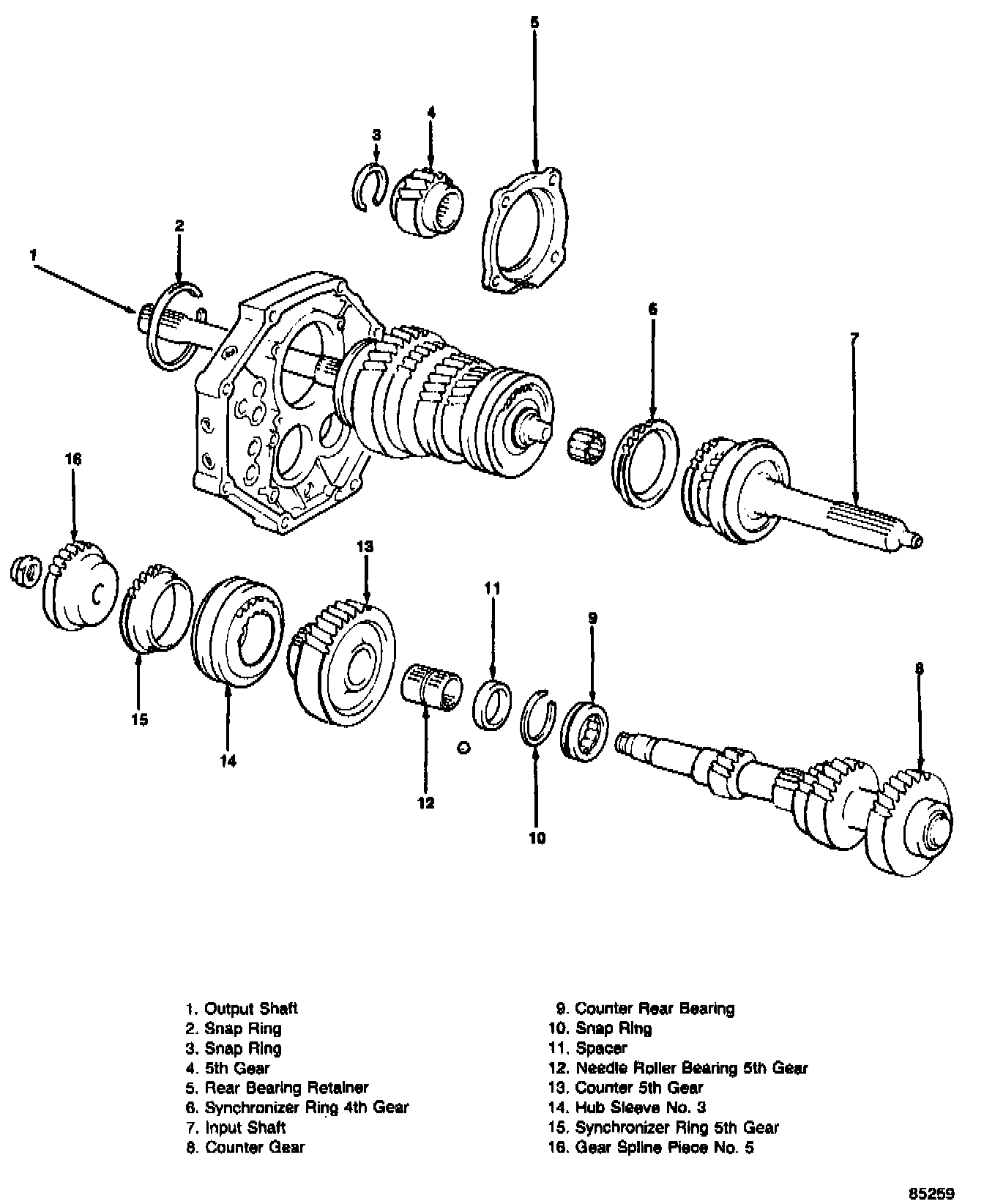

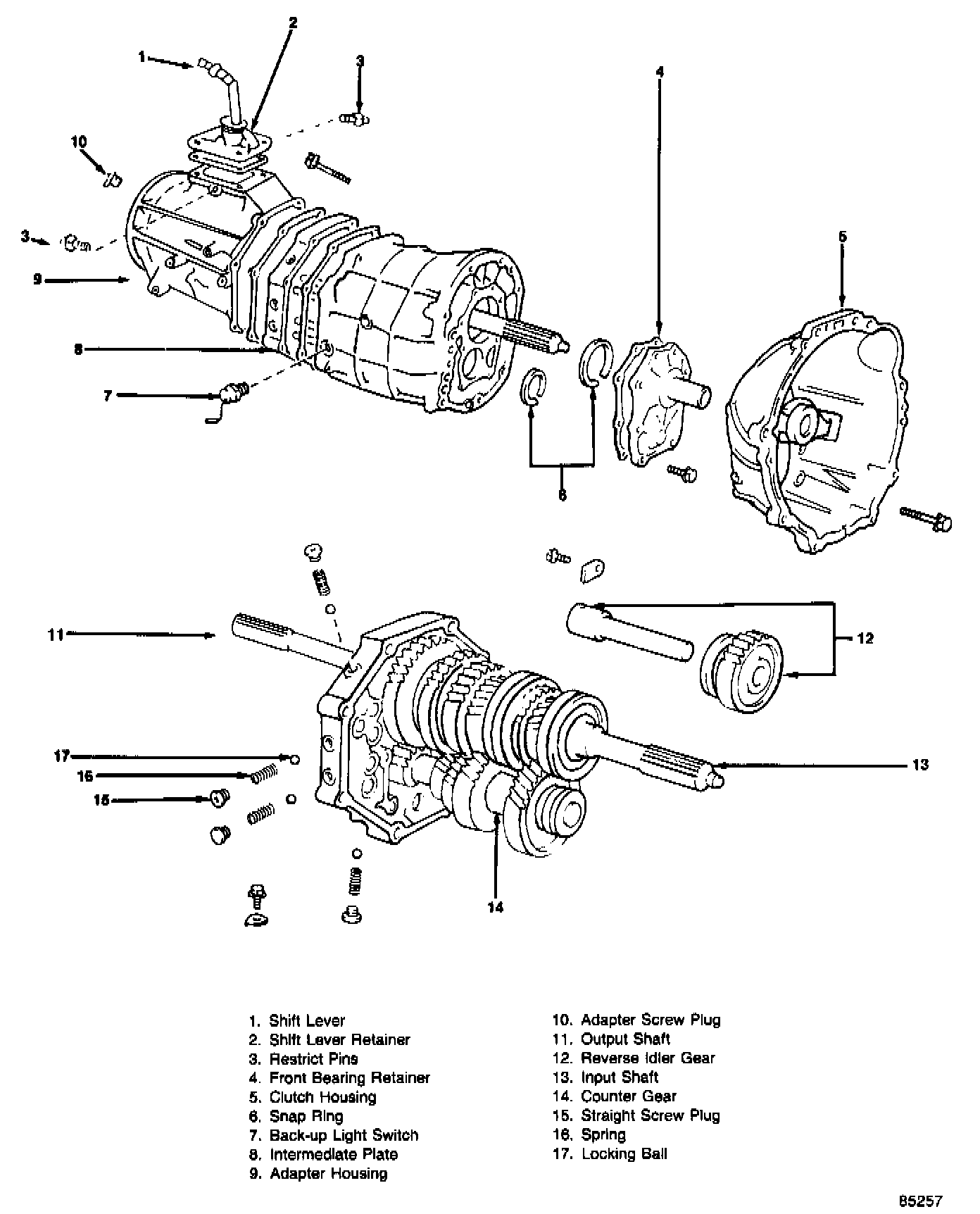

AX4 Transmission - Exploded Views
