Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Circuit Breakers | ||
| Power Accessories | In fuse block. | |
| Power Window | In fuse block. | |
| Trailer Towing | Above left rear wheelwell. See Figure . | |
| Windshield Wiper | On side of fuse block. | |
| Fuse Block | Under left side of dash. | |

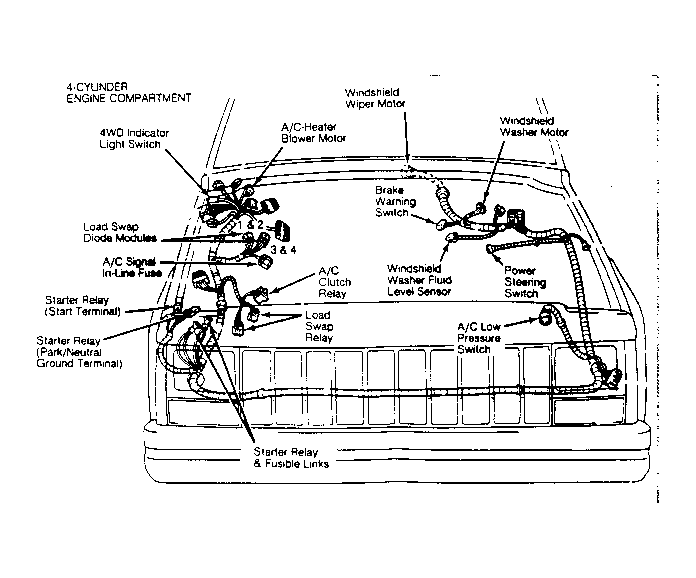

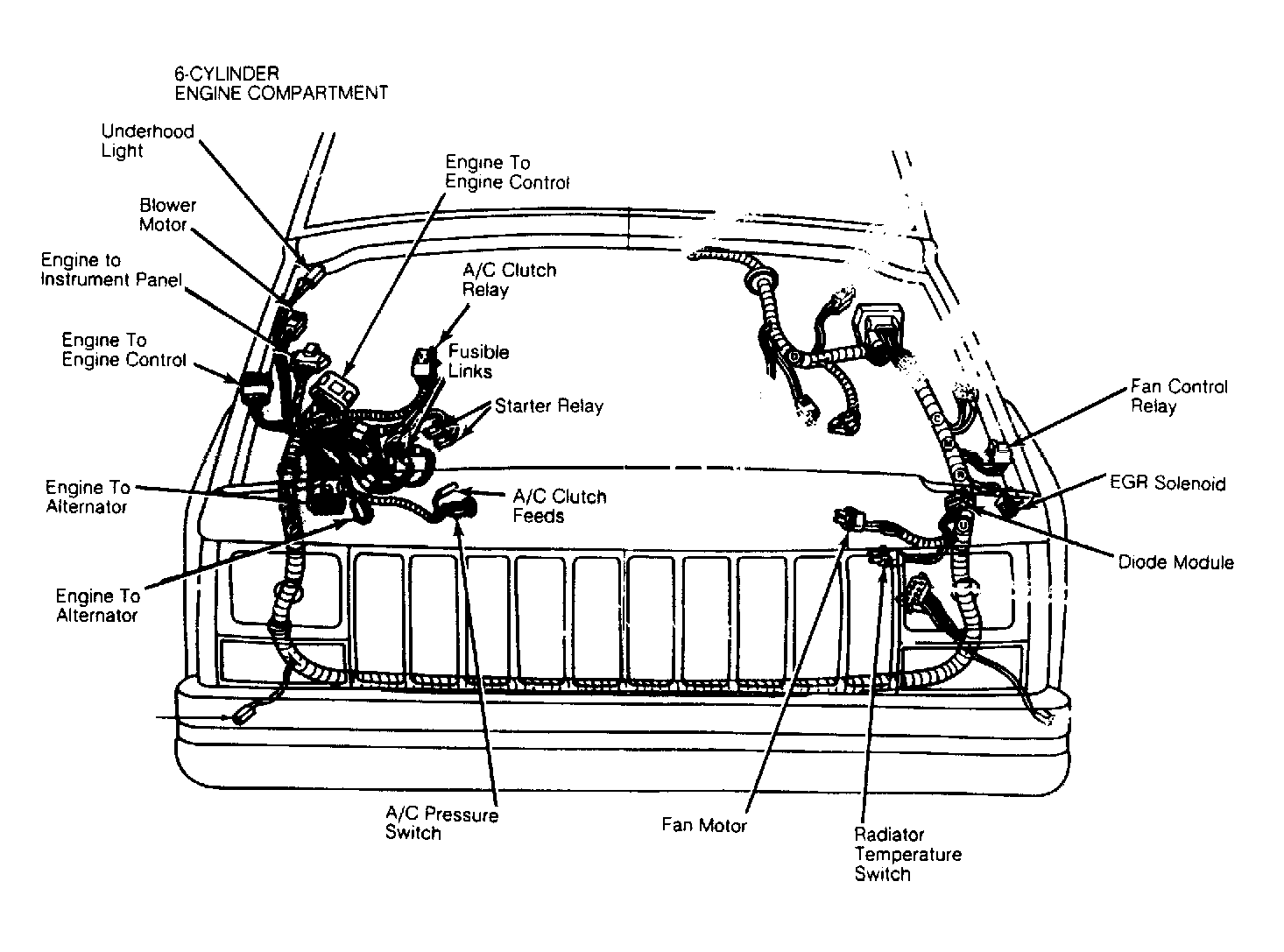

| Fusible Links | At starter relay. See Figure & Figure . | |
| In-Line Fuses | ||
| A/C Signal Fuse | Near diode modules or above left front wheelwell. See Figure . | |
| Fuses A & B | Taped to engine wiring harness, near thermo-electric switch. | |
| Fuse C | Taped to engine wiring harness, by alternator. | |
| Fuse D | Taped to engine wiring harness, near power steering switch. | |
| Cruise Control | Under left side of dash, near brake pedal. | |
| Radio | Under center of dash, behind radio. | |
