Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Audio Alarm Module | On side of fuse block. |
| Cruise Control Regulator Module | Under dash, above brake pedal. |

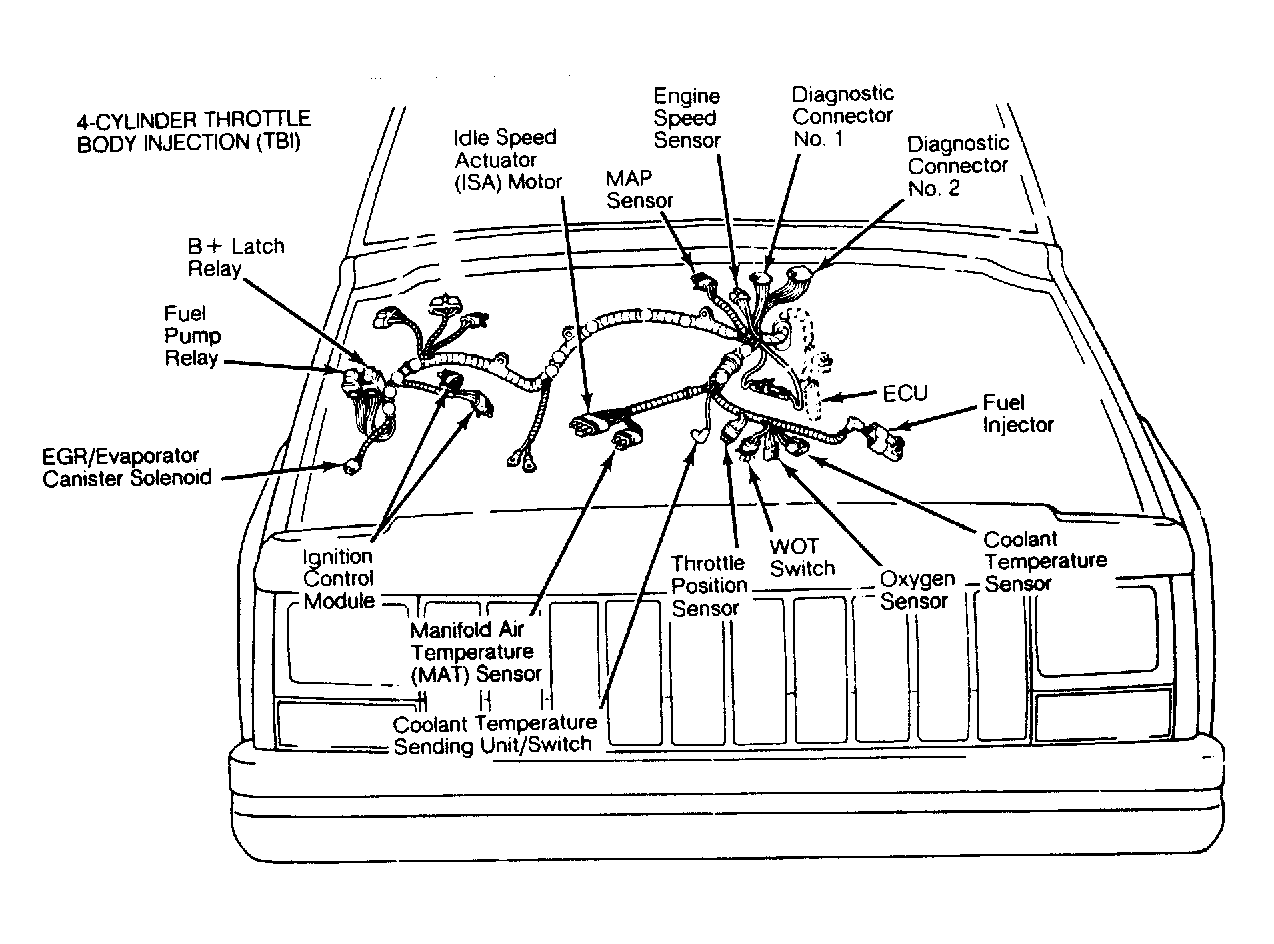

| Elect. Control Unit (ECU) | Under dash, above accelerator pedal. See Figure . |
| Ignition Control Module | In engine bay, on right wheelwell. See Figure . |
| Intermittent Wiper Module | Under left side of dash, above brake pedal. |
| Keyless Entry Receiver | Between sun visors. |
| Maint. Reminder Module | Under dash, to right of steering column. See Figure . |
| Sentinel Light Module | Under left side of dash, near headlight switch. |
| System Sentry Control Module | Under dash, to right of steering column. |
