Code 808 - Pressure Modulator Fault

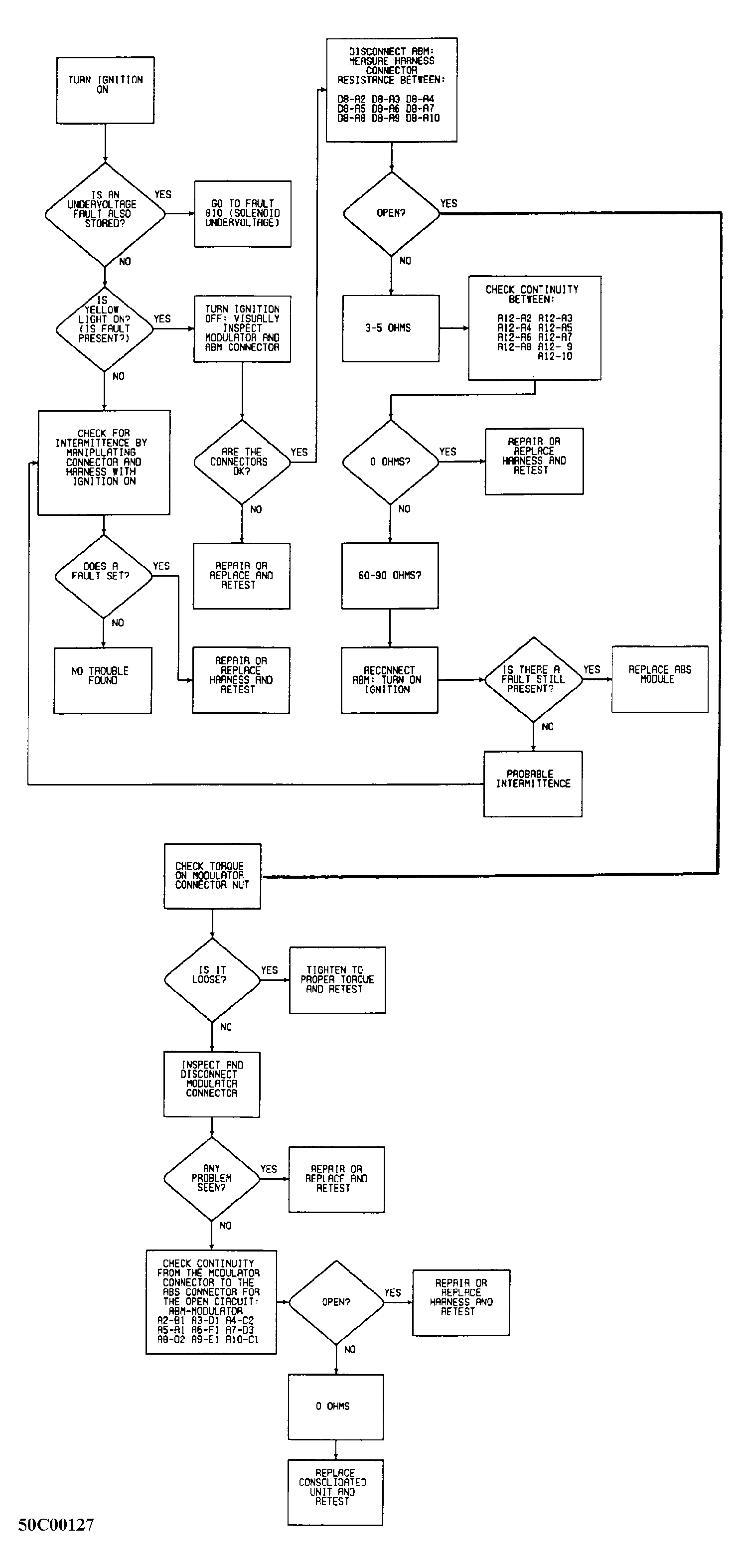

Fig 1: Code 808: Pressure Modulator Fault

G50C00127

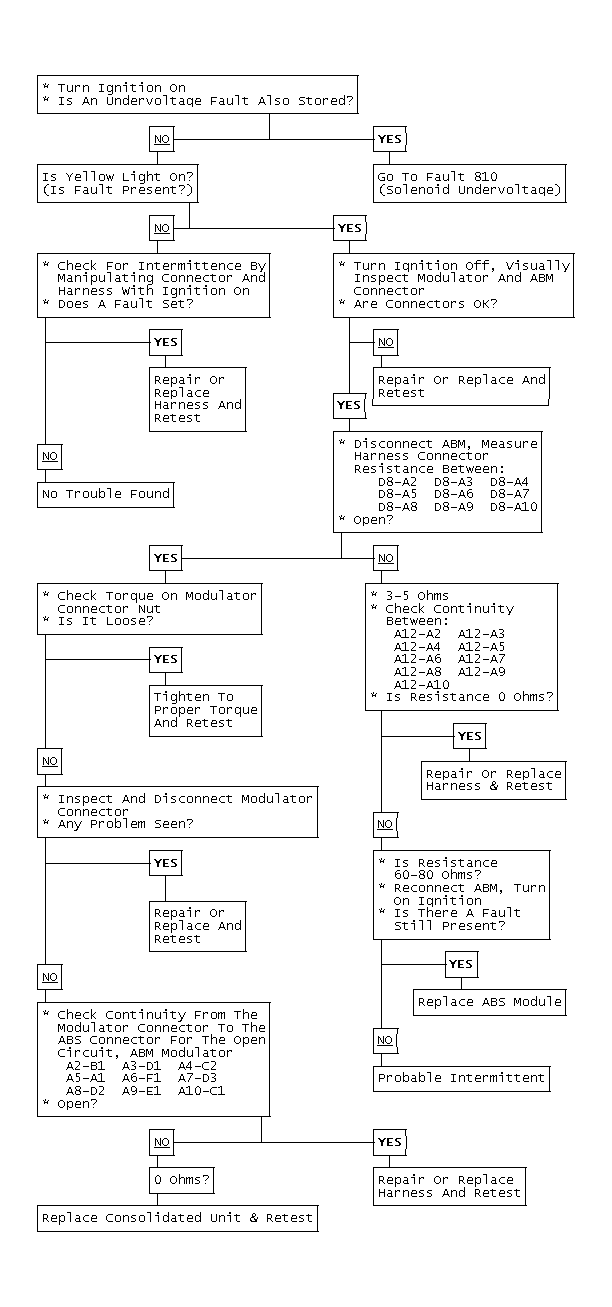

Fig 2: Code 808: Pressure Modulator Fault

GB0010694
