Code 811 - Relay Fault

Fig 1: Modulator Power Relay Connector

G93H45572

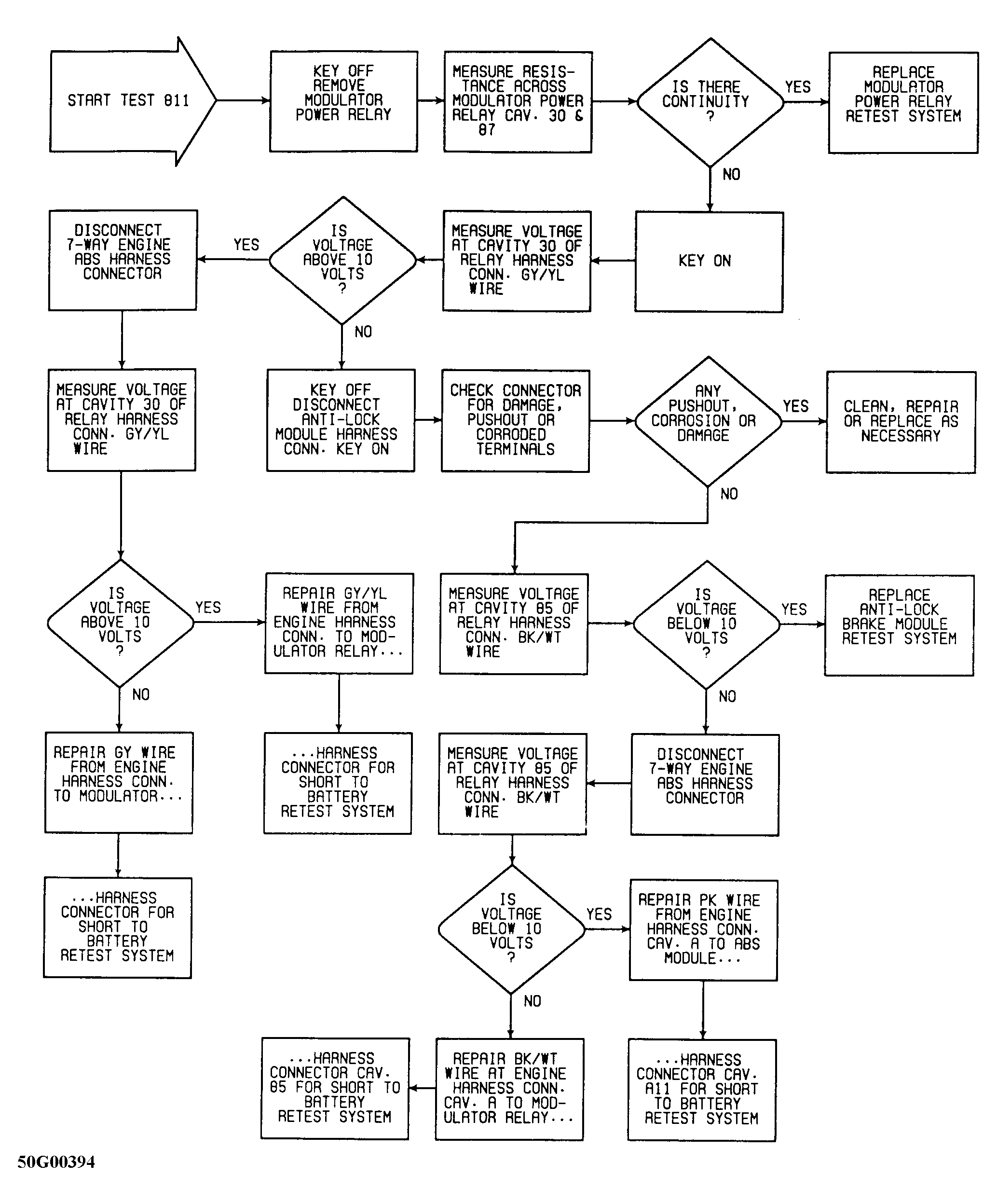

Fig 2: Fault 811: Relay Fault

G50G00394

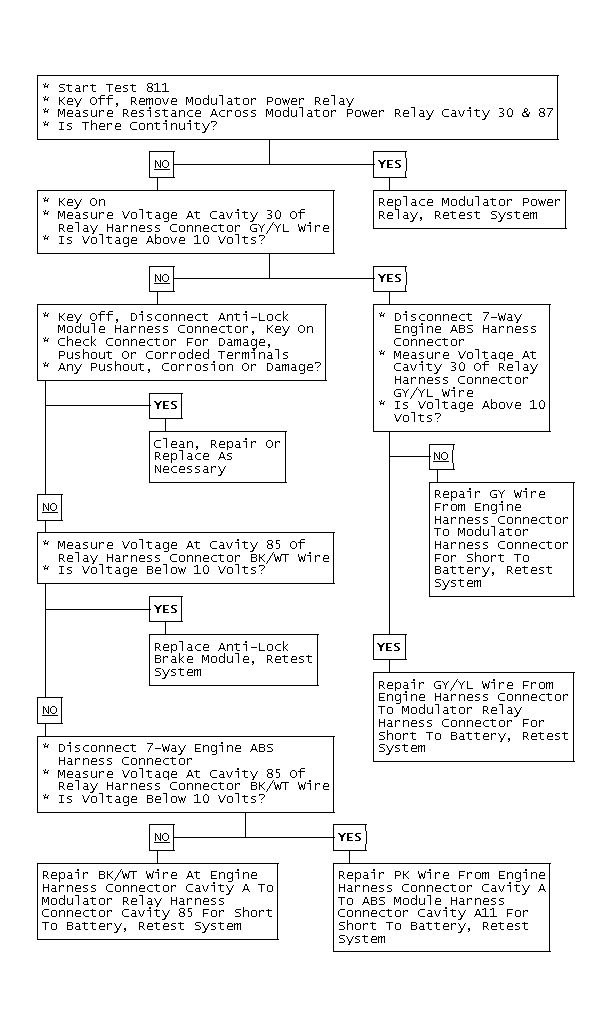

Fig 3: Fault 811: Relay Fault

GB0010721
