Code 818 - Left Front Wheel Speed Sensor Fault

Fig 1: ABS Module Connector

G93A45559

Fig 2: Speed Sensor Connector (Harness Side)

G93E45561

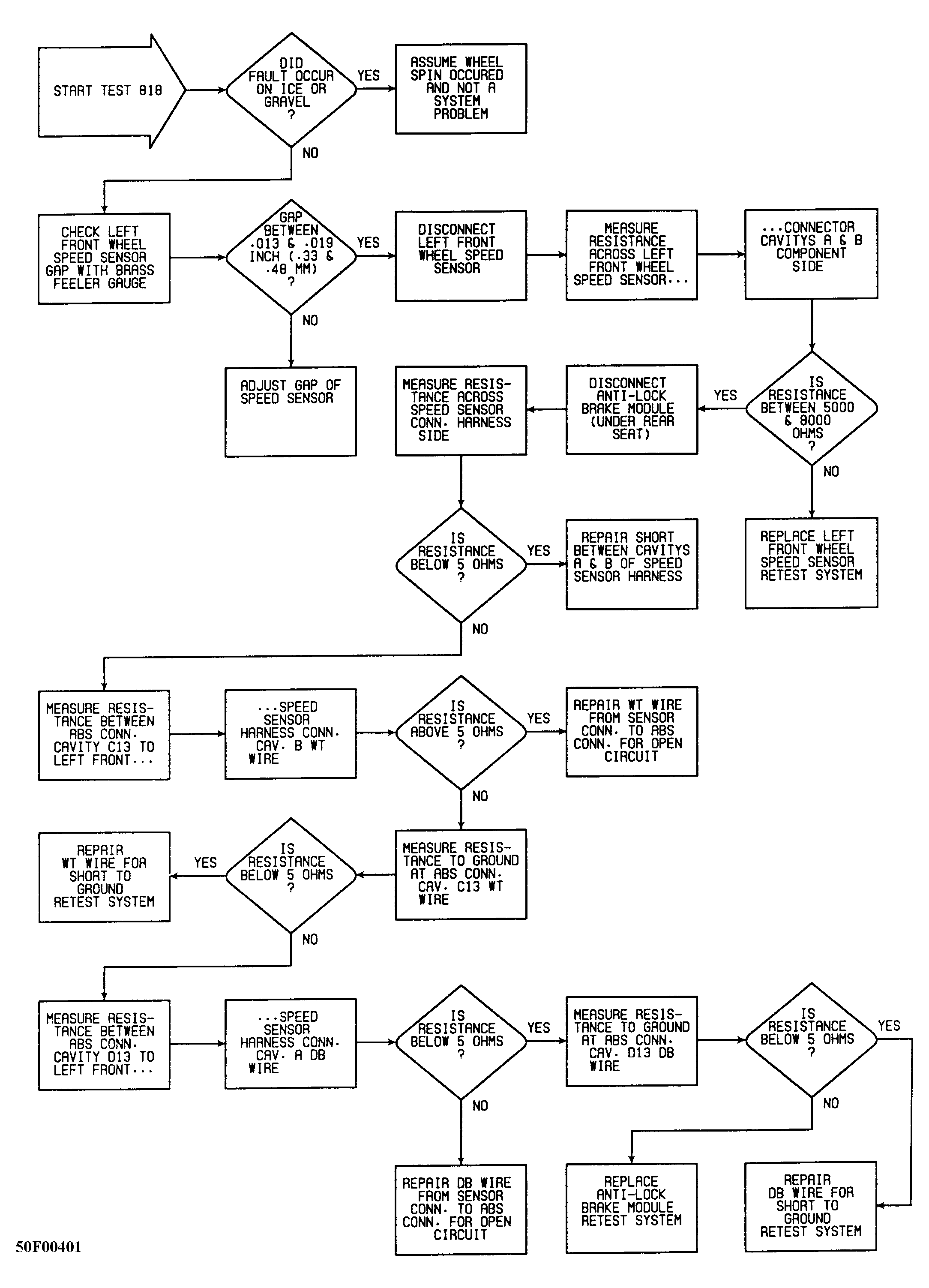

Fig 3: Fault 818: Left Front Wheel Speed Sensor Fault

G50F00401

Fig 4: Fault 818: Left Front Wheel Speed Sensor Fault

GB0010728
