Visual Check

Ensure master cylinder reservoir is full, to the "V" mark on the reservoir. If reservoir is not full, check for leaks and repair (if necessary). Check all mechanical components and electrical connectors. Repair or replace any defective mechanical component. Check ABS warning lights and system operation. See Fig 1 .

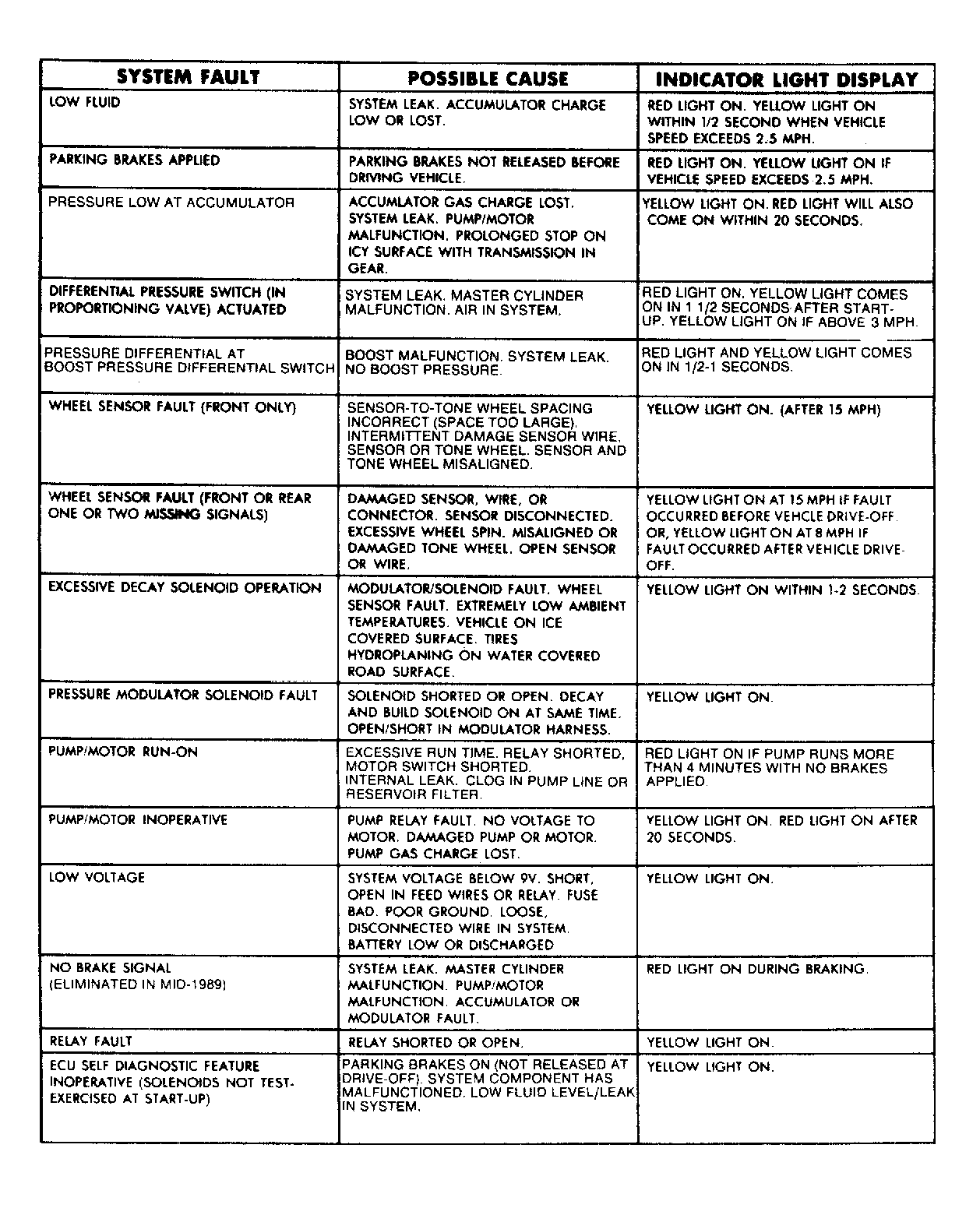

Fig 1: ABS Trouble Shooting Chart
G90H06331Courtesy of CHRYSLER MOTORS.
