Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Anti-Lock Brake (ABS) Module | Behind rear seat. |

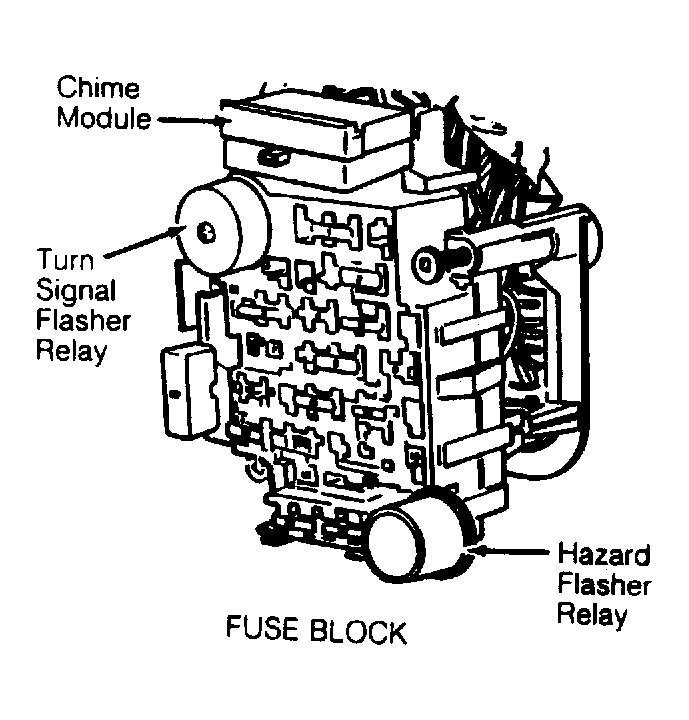

| Chime Module | On top of fuse block. See Figure . |
| Cruise Control Module | Under dash, above brake pedal. |
| Daytime Running Lights Module (1990) | In engine bay, on top of left wheelwell. |
| ECAT Module | Behind right side of dash. |
| Electronic Control Unit (ECU) | Behind left side of dash, above gas pedal. |

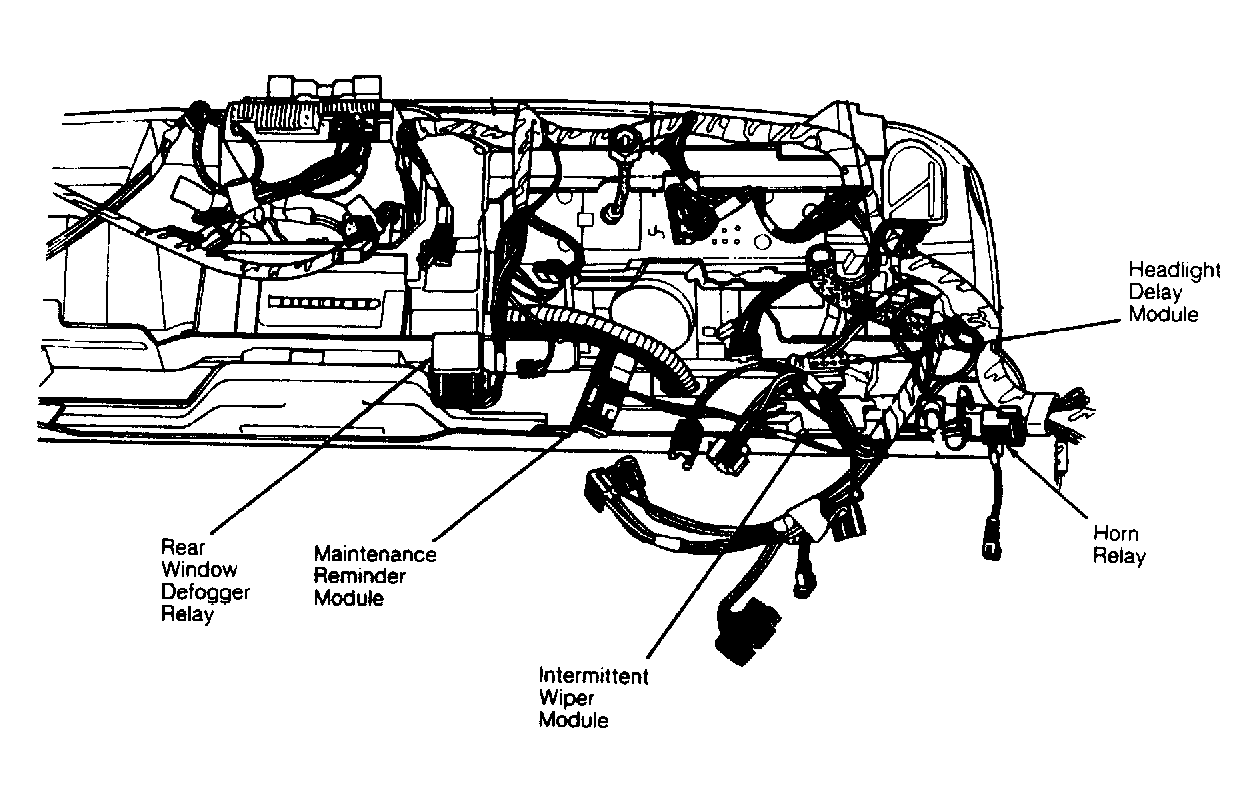

| Headlight Delay Module | Under left side of dash, above intermittent wiper module. See Figure . |

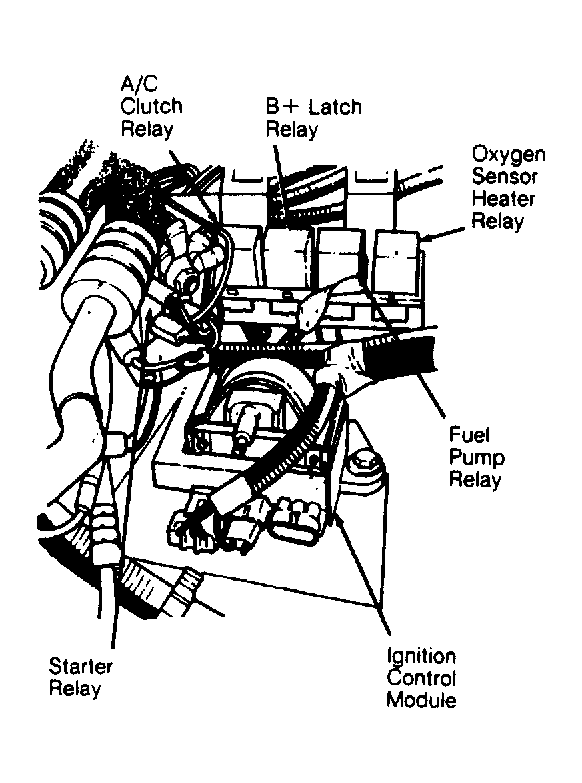

| Ignition Control Module | On right wheelwell, in front of relay block. See Figure . |
| Intermittent Wiper Module | Under left side of dash, to right of fuse block. See Figure . |
| Keyless Entry Module | Between sun visors. |
| Maintenance Reminder Module | Under dash, to right of steering column. See Figure . |
| Transmission Control Unit (TCU) | Under dash on passenger's side. |
