Starter - BOSCH/MITSUBISHI: Overhaul: Notes

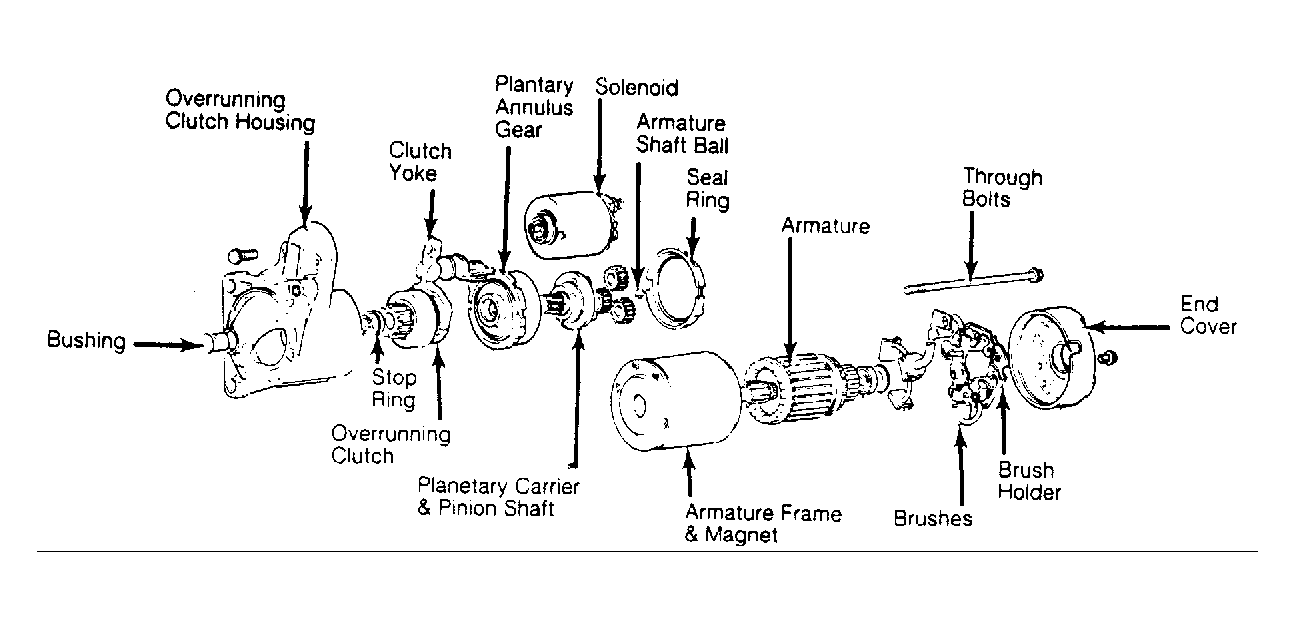

Fig 1: Exploded View of Mitsubishi Starter
G71058Courtesy of CHRYSLER MOTORS.

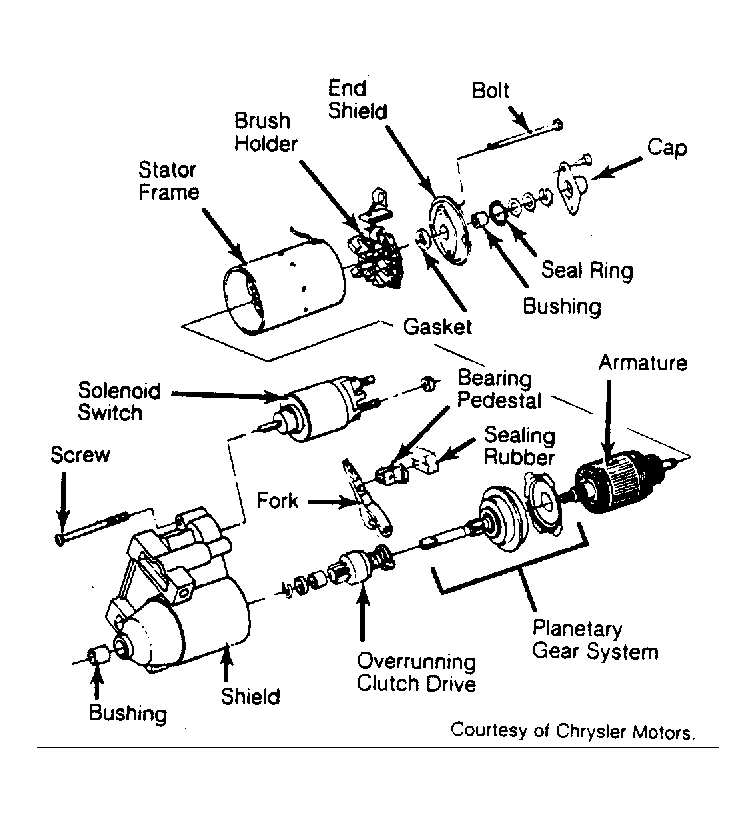

Fig 2: Exploded View of Bosch Starter
G71056Courtesy of CHRYSLER MOTORS.
