Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS | Under left rear seat. |
| Chime Module | On top of fuse block. See Figure. |
| ECAT Module | Behind right side of dash. |
| Headlight Delay Module | Under dash, next to headlight switch. |
| Intermittent Wiper Module | Under left side of dash, left of steering column. |
| Keyless Entry Module | Between sun visors. |
| Security System Module | On bracket, left side of A/C-heater housing. |

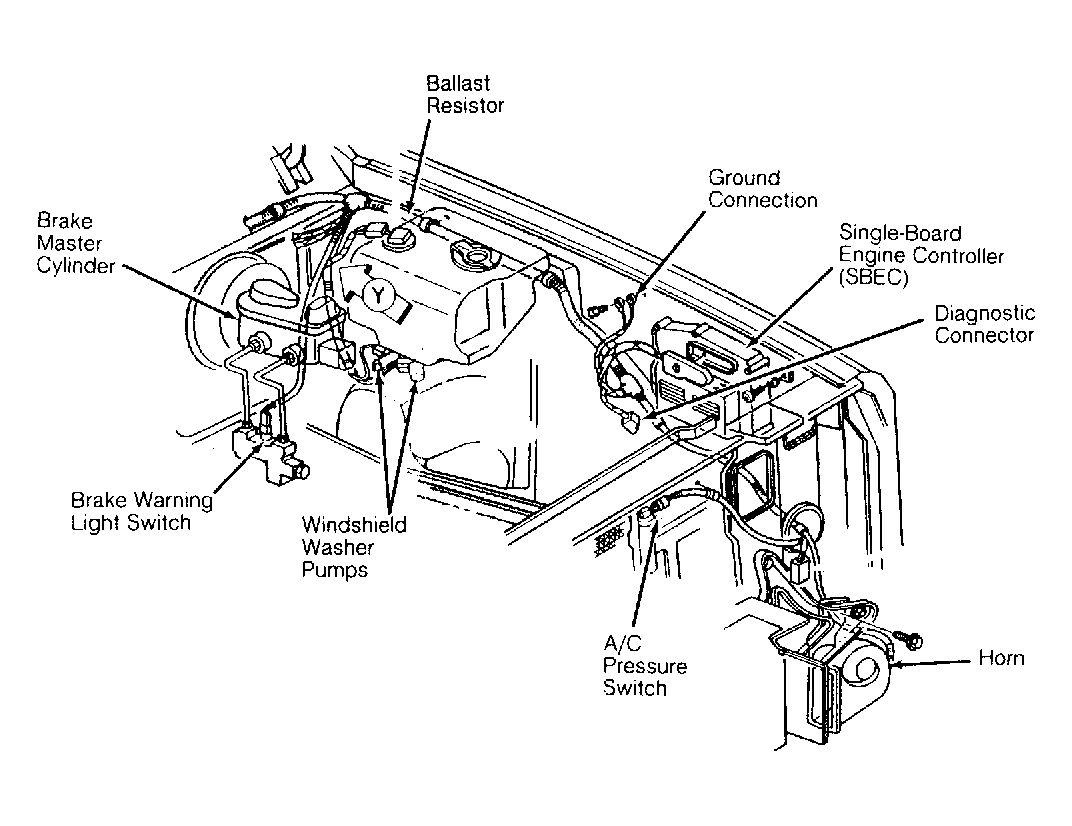

| Single-Board Engine Controller (SBEC)/Engine Control Unit (ECU) | On left front fender apron, behind air cleaner. See Figure. |
| Speed Control Module | Function of SBEC engine controller. |
