Connector Identification

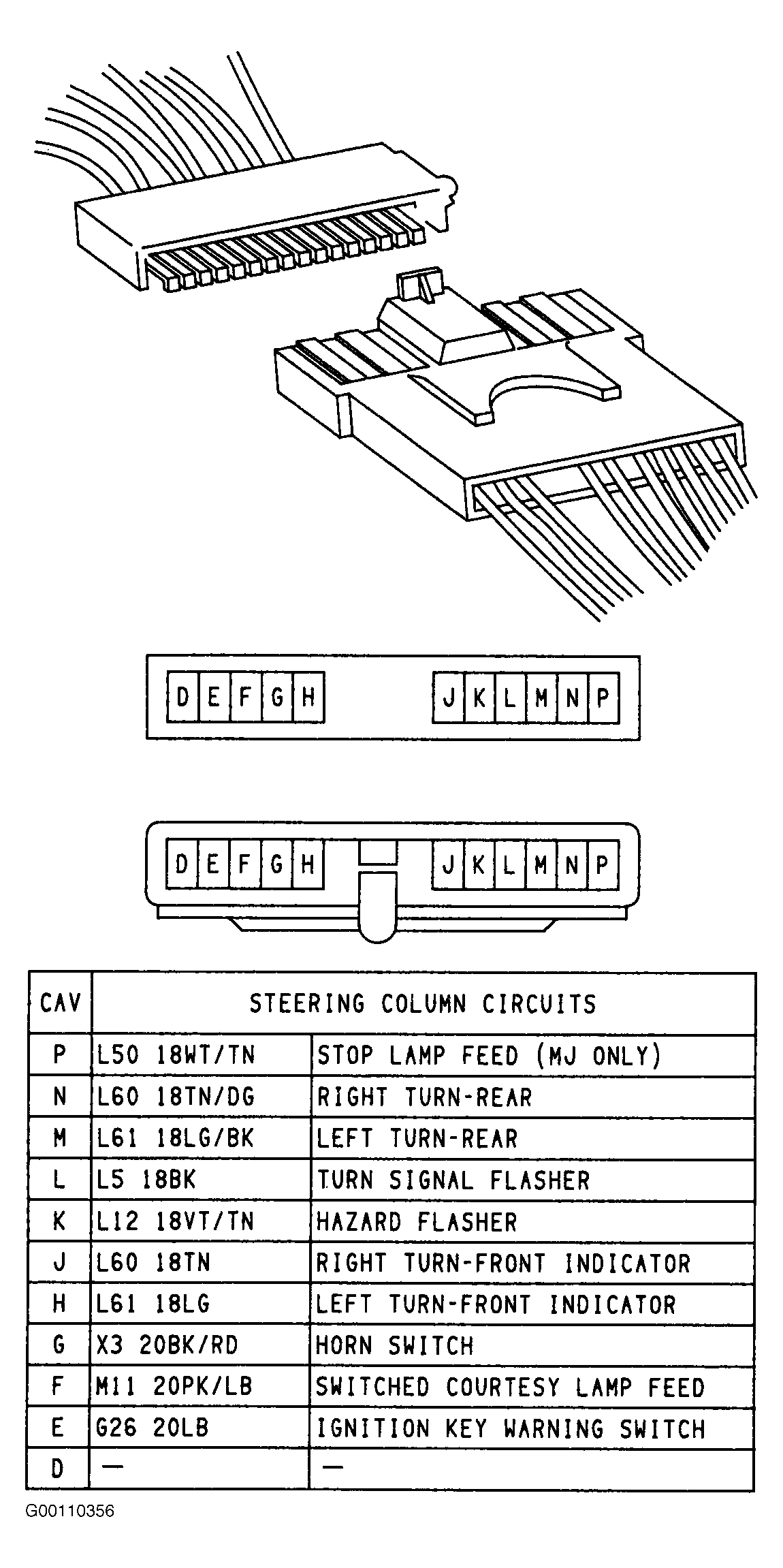

Fig 1: Identifying Steering Column Connector Terminals

G00110356

Courtesy of CHRYSLER CORP.
