System Tests: Notes

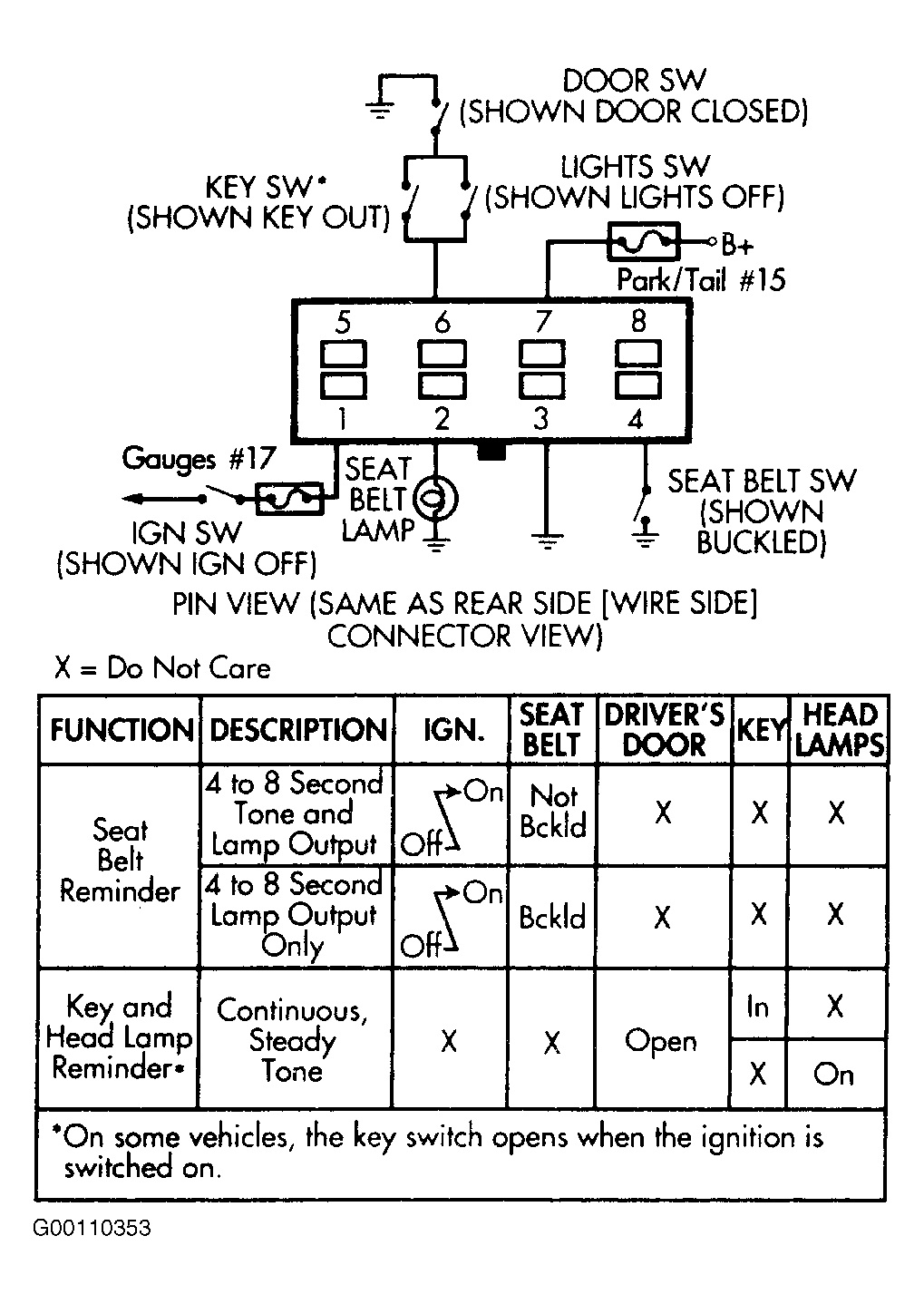

If the buzzer/chime unit does not operate as described, check the two fuses for pins 1 and 7 and replace as required. See Figure . If the fuses are not defective, perform the following test to determine if the problem is in the module or in the wiring. Before starting these tests, the module must be unplugged. Using a flat-head screwdriver, release the locking plastic clip while carefully pulling out the module. Plug in a known-good module and check system operation. If the problem is not corrected by replacing the module, remove the module and continue to voltage tests. See VOLTAGE TEST  .
