System Tests

Refer to Anti-Theft System Trouble Shooting Charts. See Fig 1 and Fig 2 .

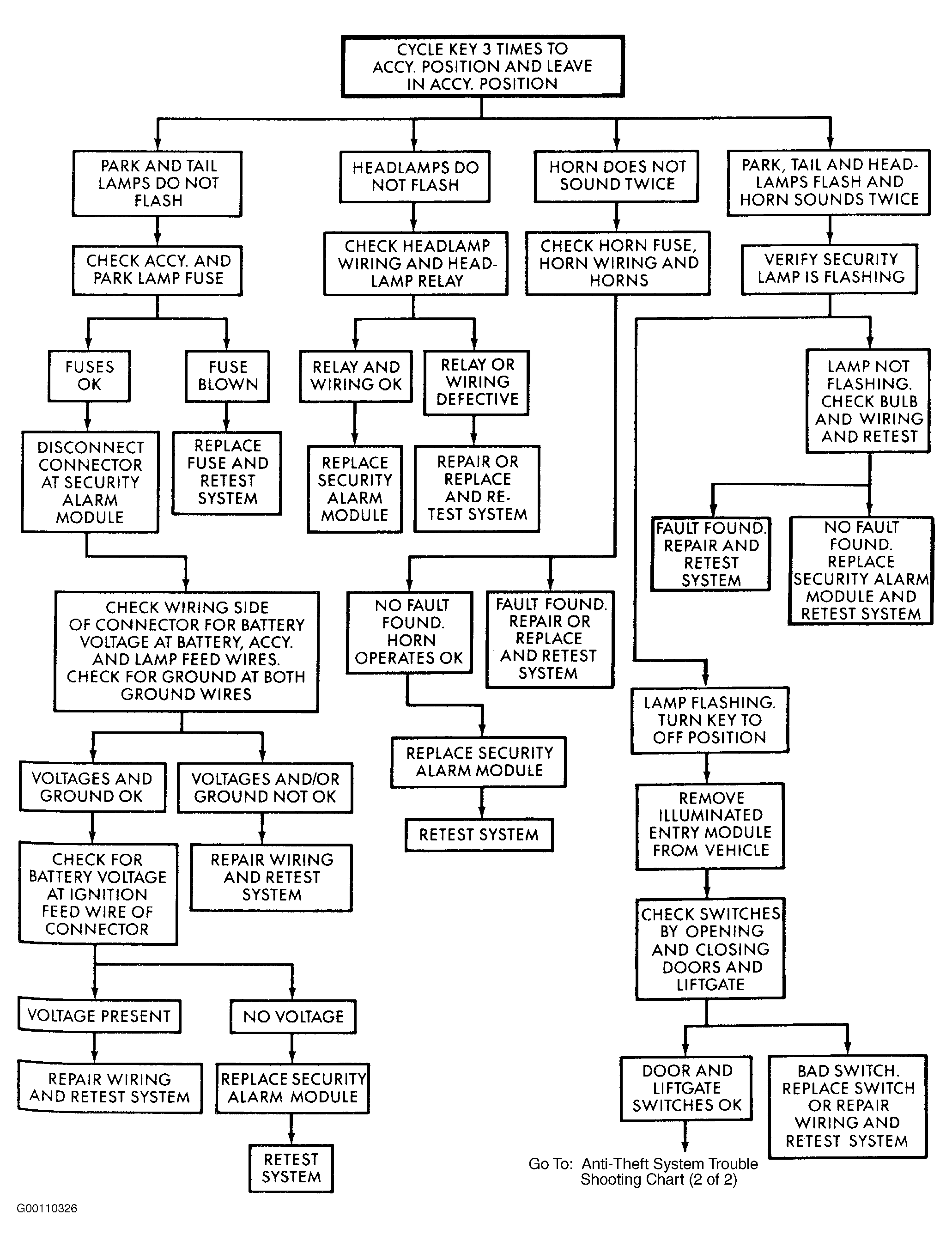

Fig 1: Anti-Theft System Trouble Shooting Chart (1 Of 2)

Courtesy of CHRYSLER CORP.

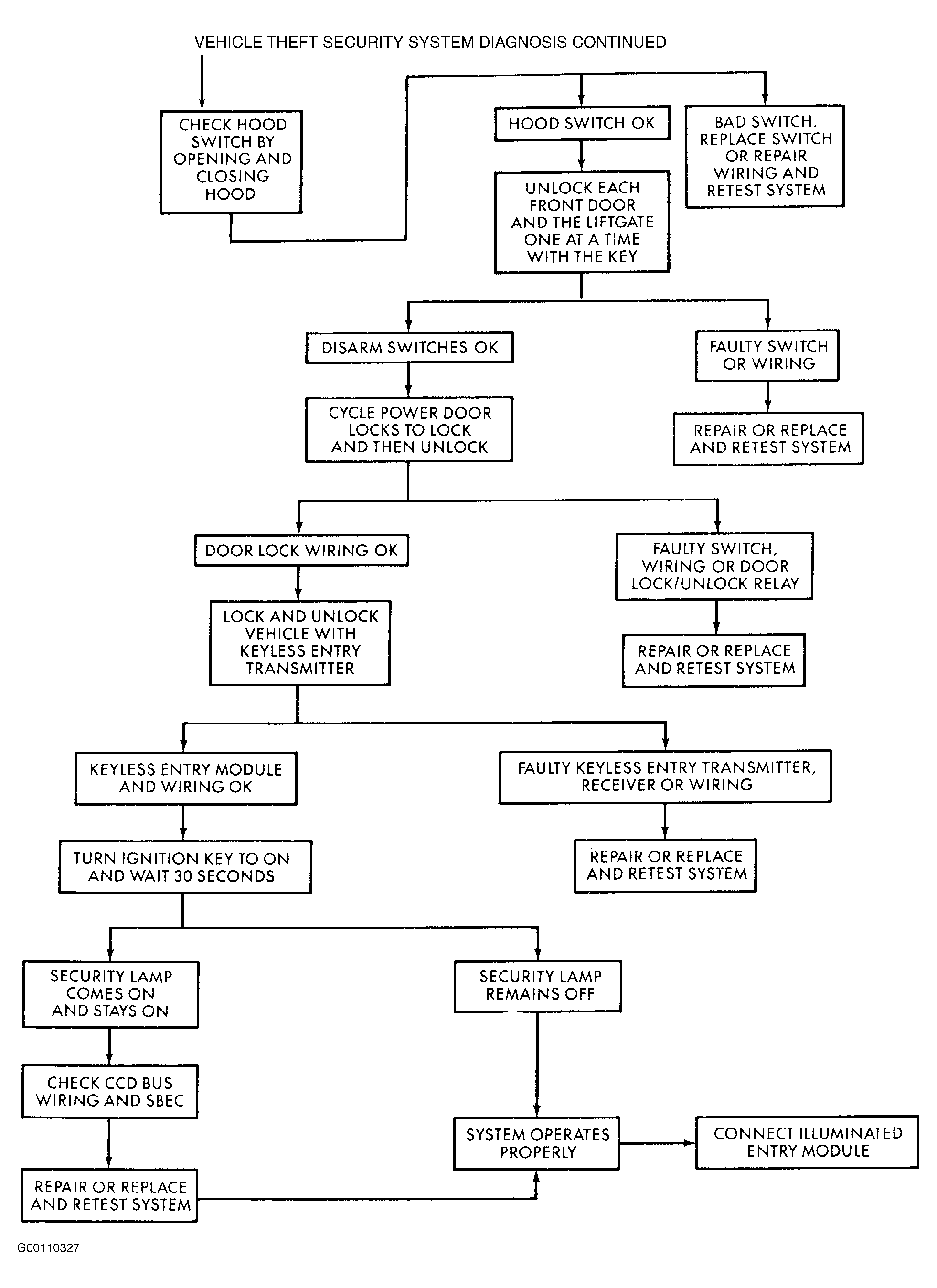

Fig 2: Anti-Theft System Trouble Shooting Chart (2 Of 2)

Courtesy of CHRYSLER CORP.
