Power Seat Switch

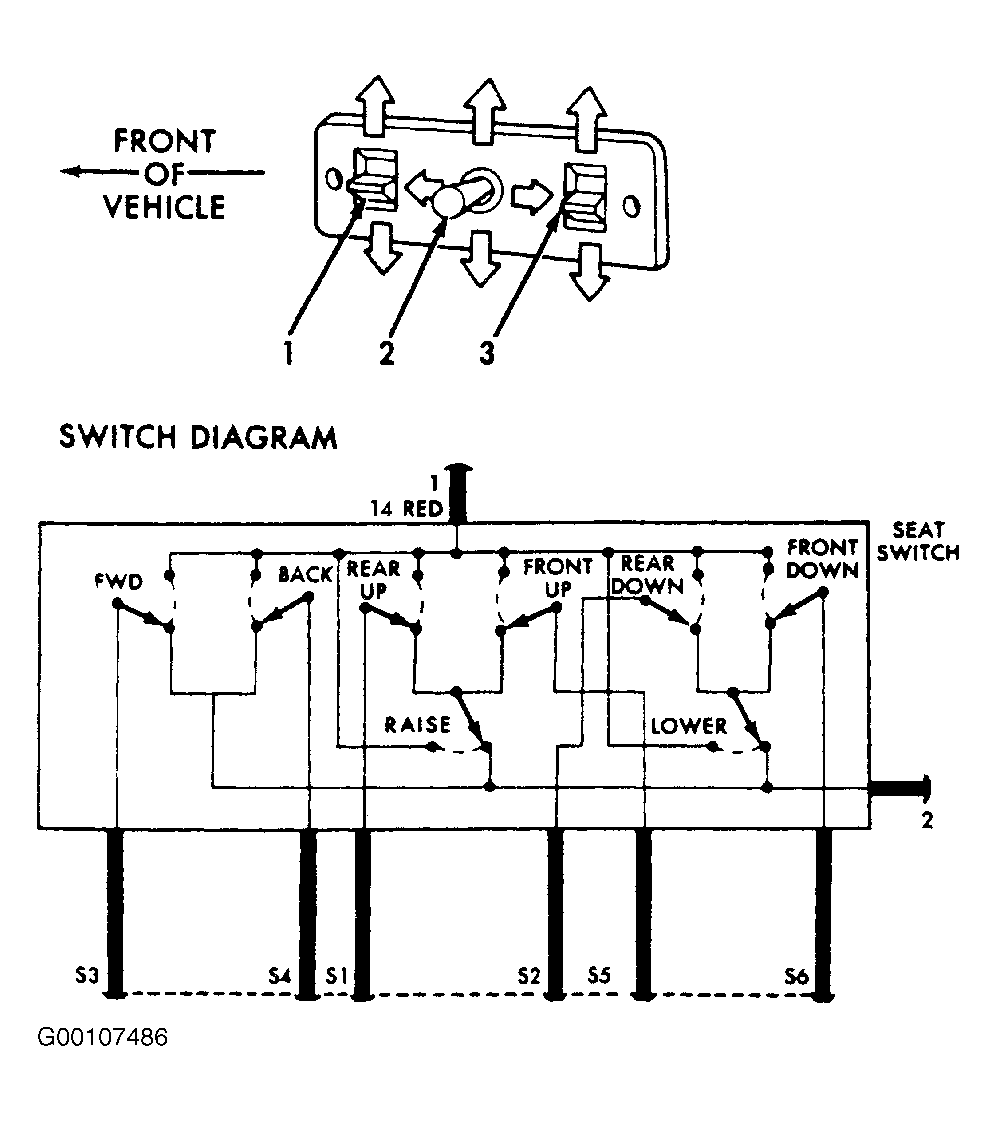

Fig 1: Identifying Power Seat Switch Operation
G00107486Courtesy of CHRYSLER CORP.

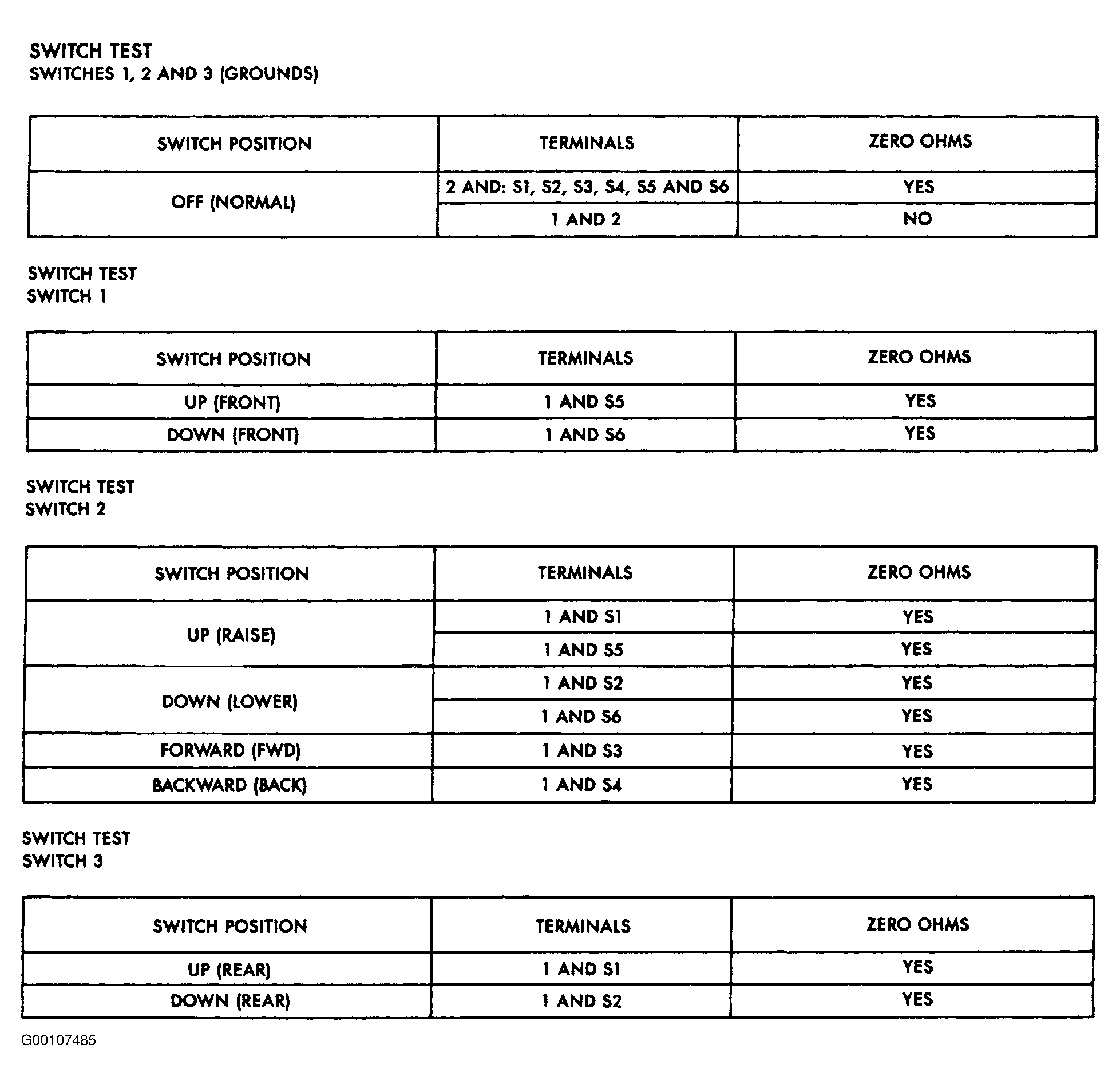

Fig 2: Testing Power Seat Switch
G00107485Courtesy of CHRYSLER CORP.
