Connector Identification

NOTE: The following terminals are shown as viewed from harness side of connector. If actual connector wire colors differ from those shown in illustration, see wiring diagram in the WIRING DIAGRAMS article to ensure correct circuit is being tested.

CONNECTOR IDENTIFICATION DIRECTORY

Connector	See Fig.
A/C Clutch Relay	Fig 1
ASD Relay	Fig 2
Battery Temperature Sensor	Fig 3
Brake Lamp Switch	Fig 4
Camshaft Position (CMP) Sensor	Fig 5
Center Oxygen Sensor (O2S)	Fig 6
Crankshaft Position (CKP) Sensor	Fig 7
Data Link Connector (DLC)	Fig 8
Downstream Oxygen Sensor (O2S)	Fig 9
EGR Solenoid	Fig 10
Engine Coolant Temperature (ECT) Sensor	Fig 11
EVAP Purge Solenoid	Fig 12
Fuel Pump Module	Fig 13
Fuel Pump Relay	Fig 14
Idle Air Control (IAC) Motor	Fig 15
Intake Air Temperature (IAT) Sensor	Fig 16
Leak Detection Pump (LDP)	Fig 17
Left Oxygen Sensor (O2S)	Fig 18
MAP Sensor	Fig 19
Message Center	Fig 20
Overdrive (O/D) Off Switch	Fig 21
Park/Neutral (P/N) Switch	Fig 22
Power Steering (P/S) Switch	Fig 23
Powertrain Control Module (PCM)	Fig 24
Radiator Cooling Fan Relay	Fig 25
Right Oxygen Sensor (O2S)	Fig 26
Speed Control (S/C) Servo	Fig 27
Speed Control (S/C) Switch	Fig 28
Throttle Position (TP) Sensor	Fig 29
Torque Converter Clutch (TCC) Solenoid	Fig 30
Transmission Governor Pressure Sensor	Fig 31
Transmission Output Speed Sensor	Fig 32
Transmission Solenoid	Fig 33
Upstream Oxygen Sensor (O2S)	Fig 34
Vehicle Speed Sensor (VSS)	Fig 35
Water-In-Fuel Sensor	Fig 36

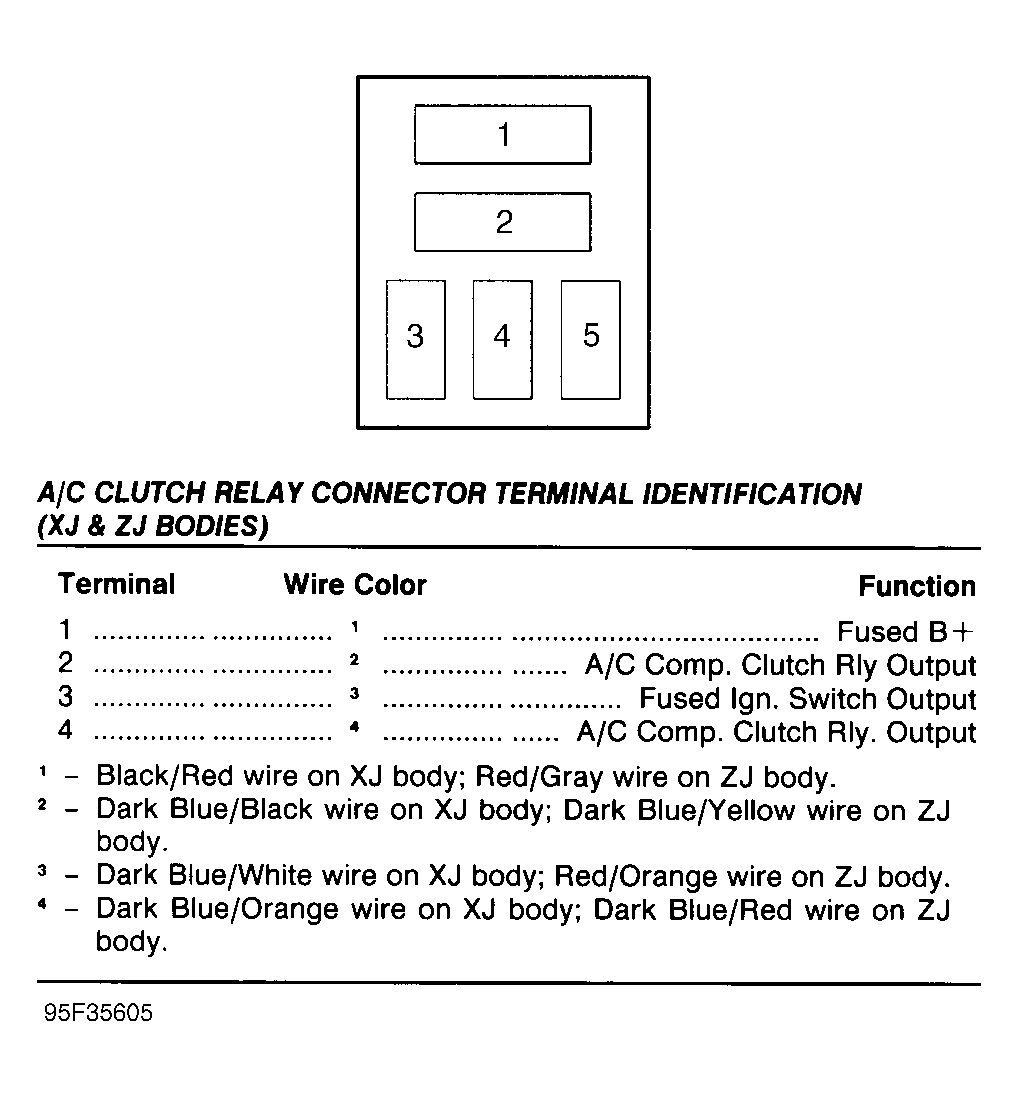

Fig 1: A/C Clutch Relay Connector Terminals

Courtesy of CHRYSLER CORP.

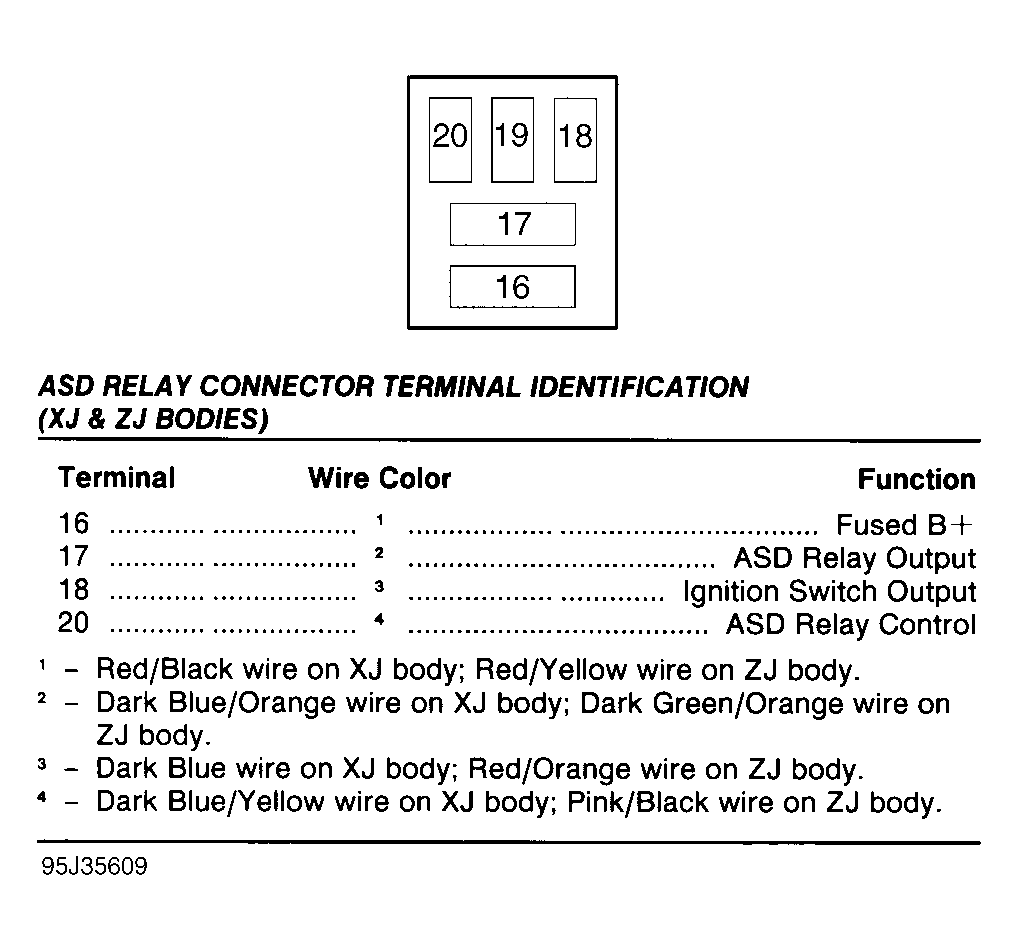

Fig 2: ASD Relay Connector Terminals

Courtesy of CHRYSLER CORP.

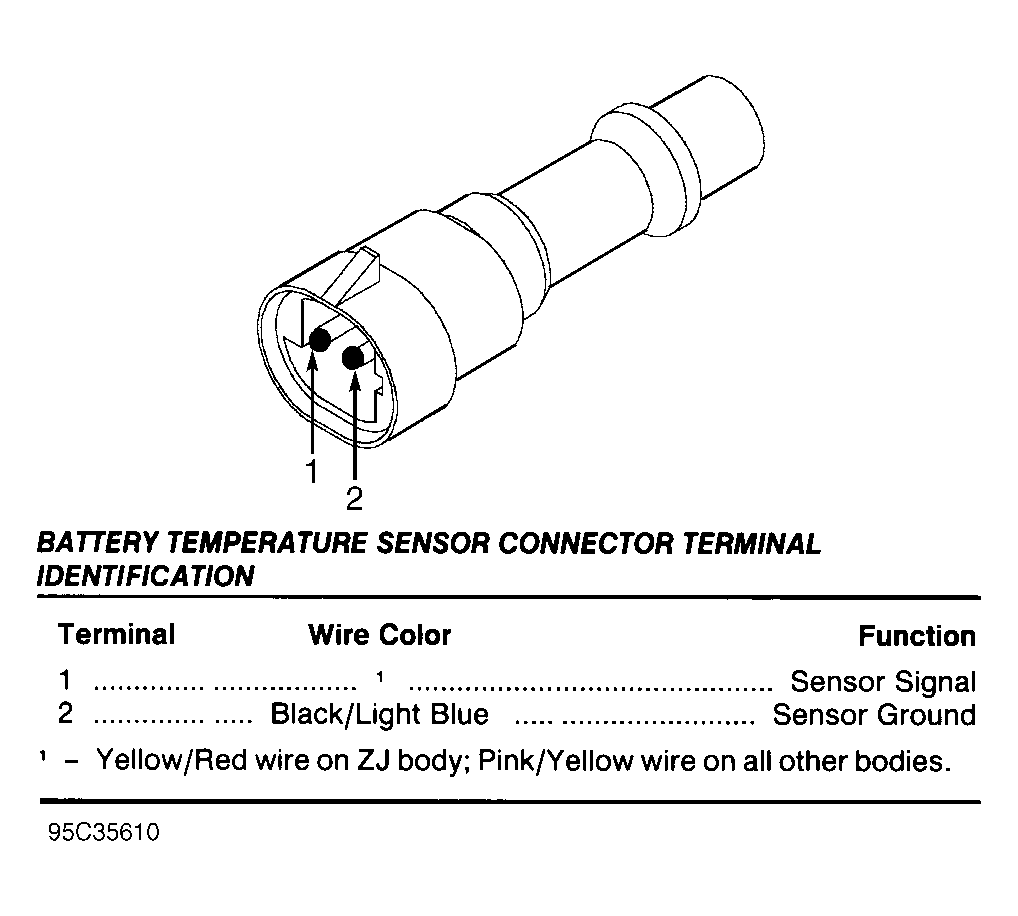

Fig 3: Battery Temperature Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

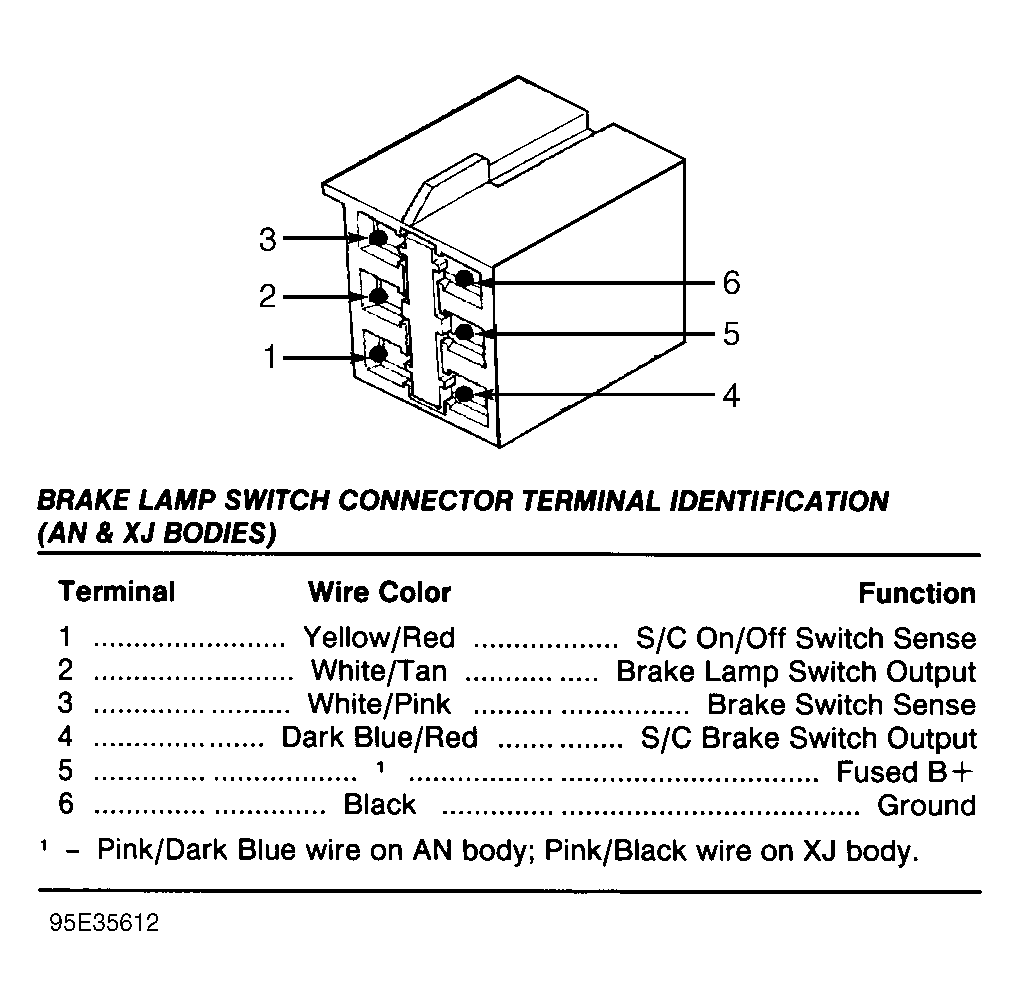

Fig 4: Brake Lamp Switch Connector Terminals

Courtesy of CHRYSLER CORP.

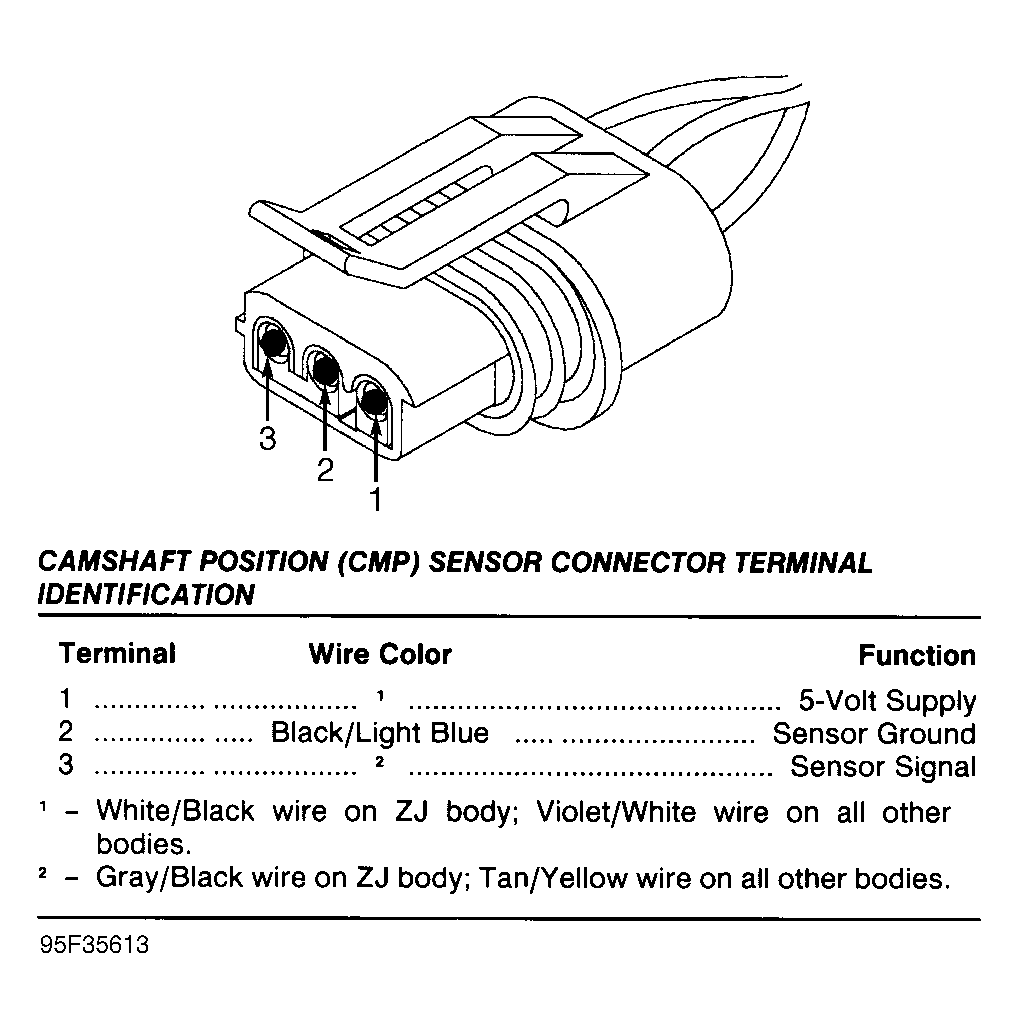

Fig 5: Camshaft Position (CKP) Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

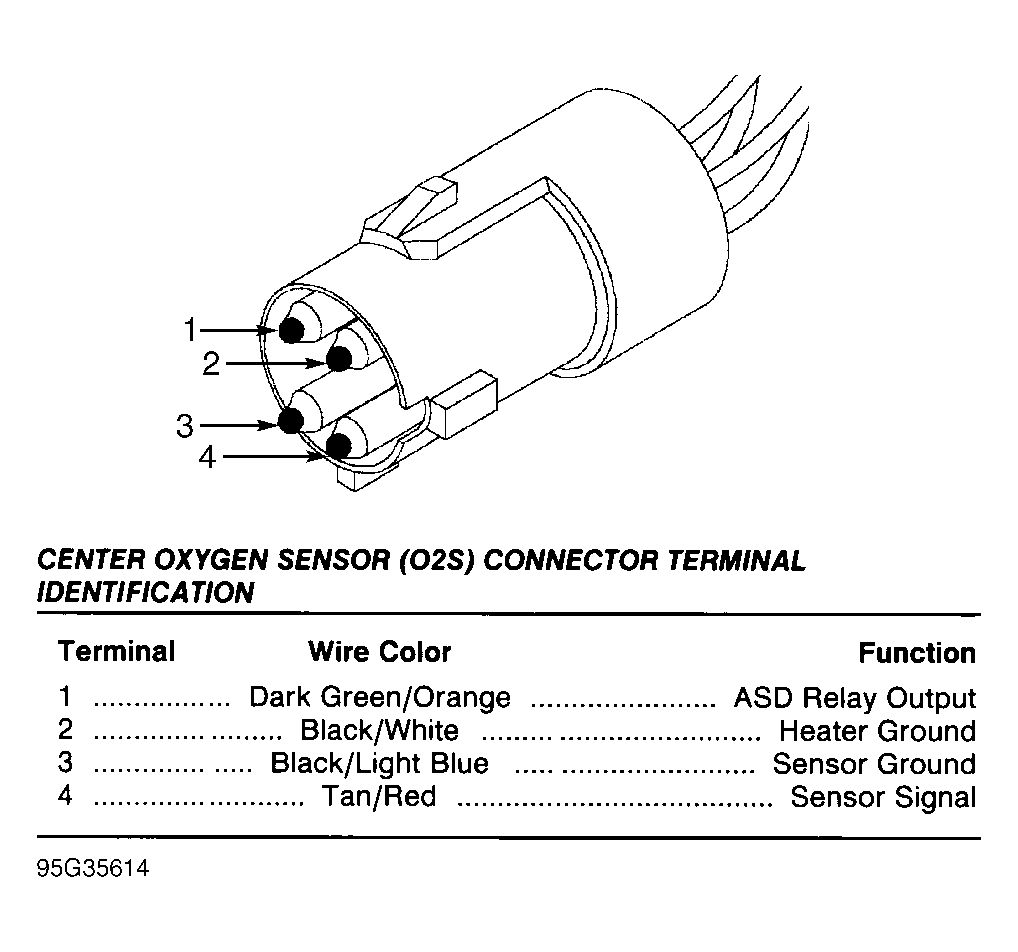

Fig 6: Center Oxygen Sensor (O2S) Connector Terminals

Courtesy of CHRYSLER CORP.

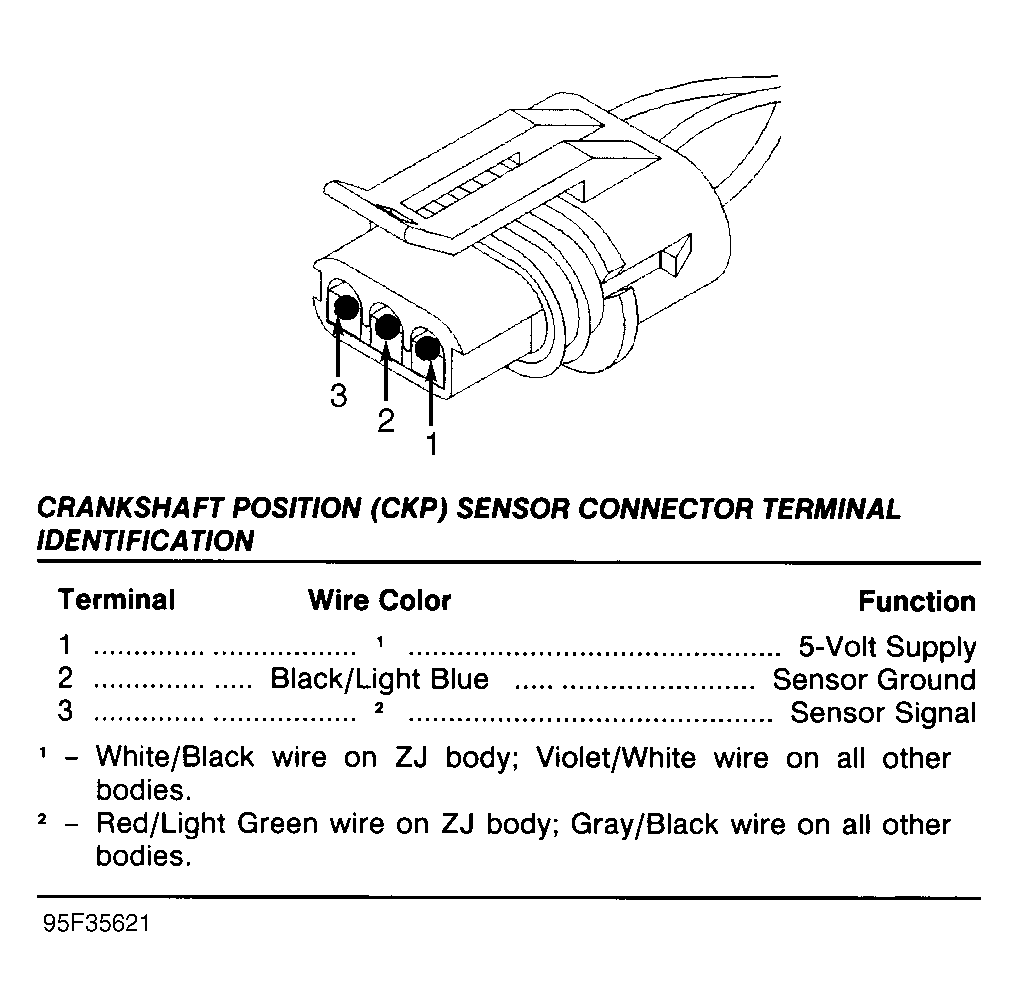

Fig 7: Crankshaft Position (CKP) Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

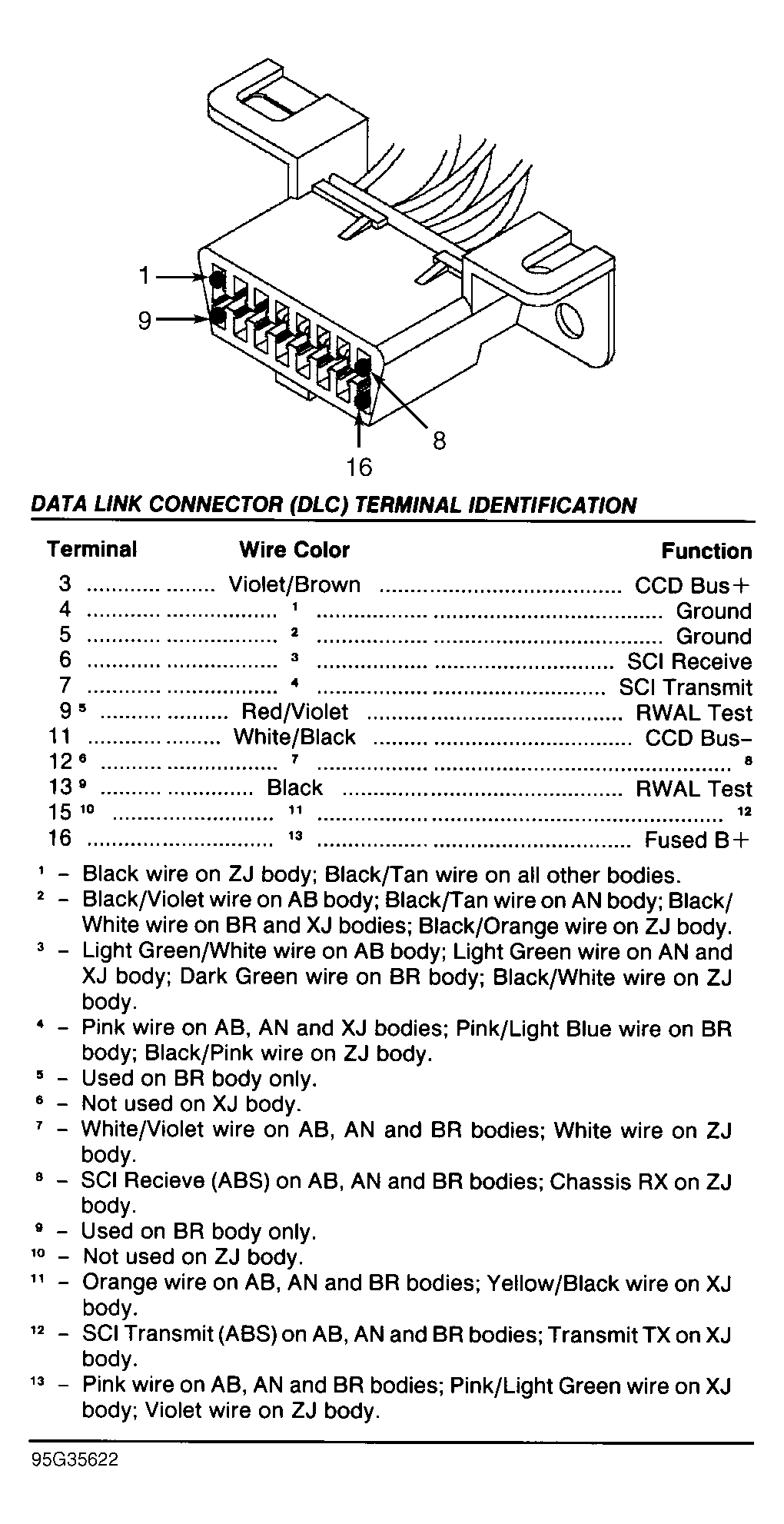

Fig 8: Data Link Connector (DLC) Terminals

Courtesy of CHRYSLER CORP.

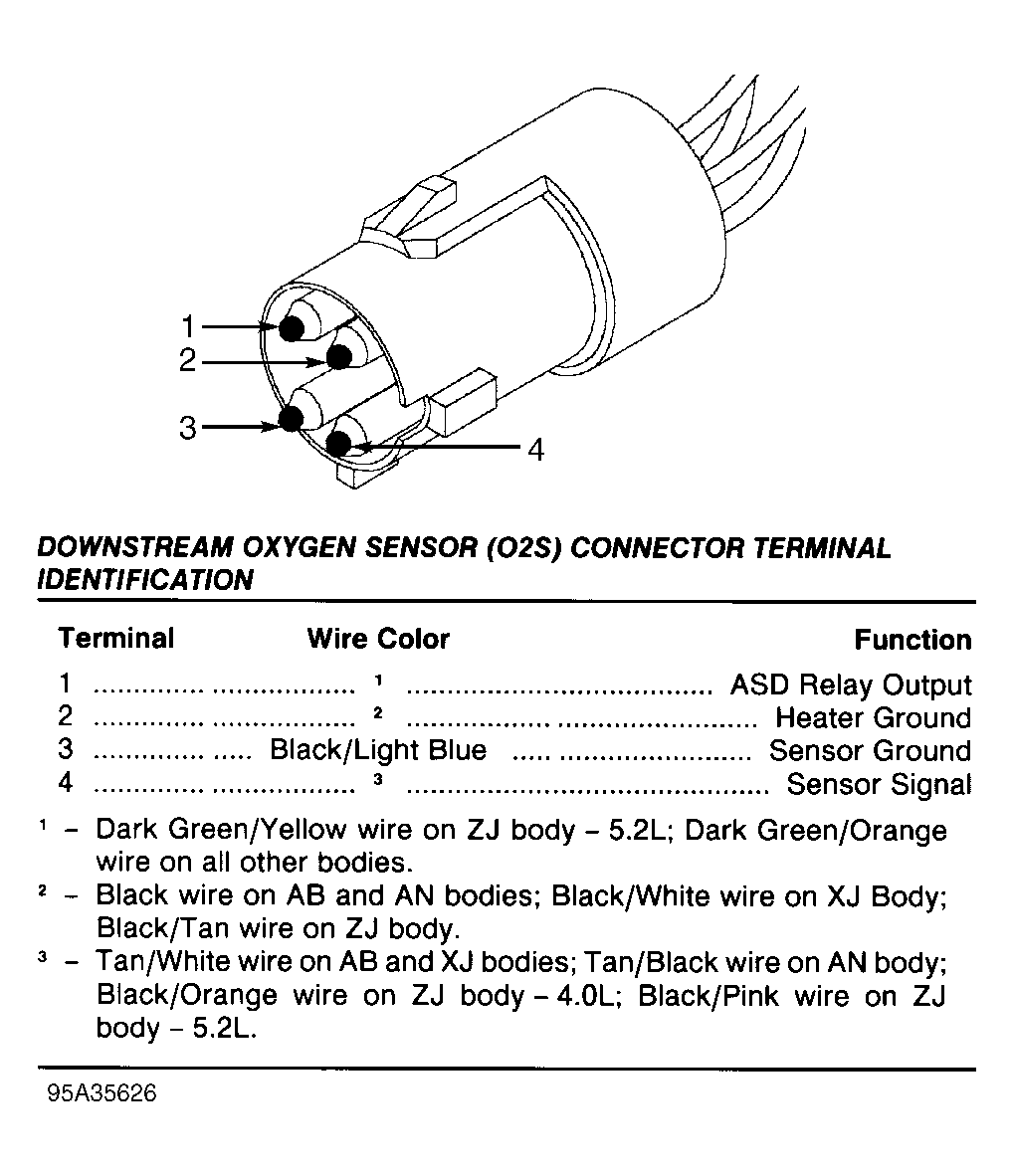

Fig 9: Downstream Oxygen Sensor (O2S) Connector Terminals

Courtesy of CHRYSLER CORP.

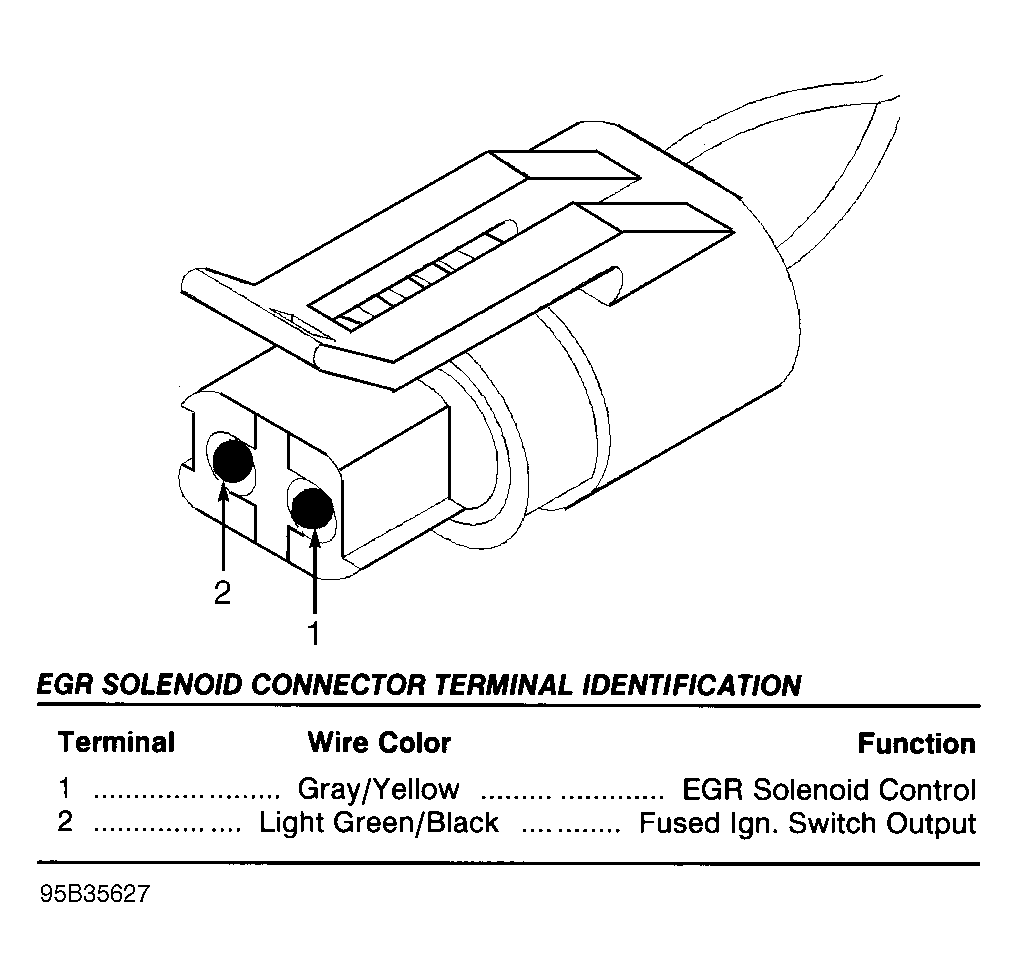

Fig 10: EGR Solenoid Connector Terminals

Courtesy of CHRYSLER CORP.

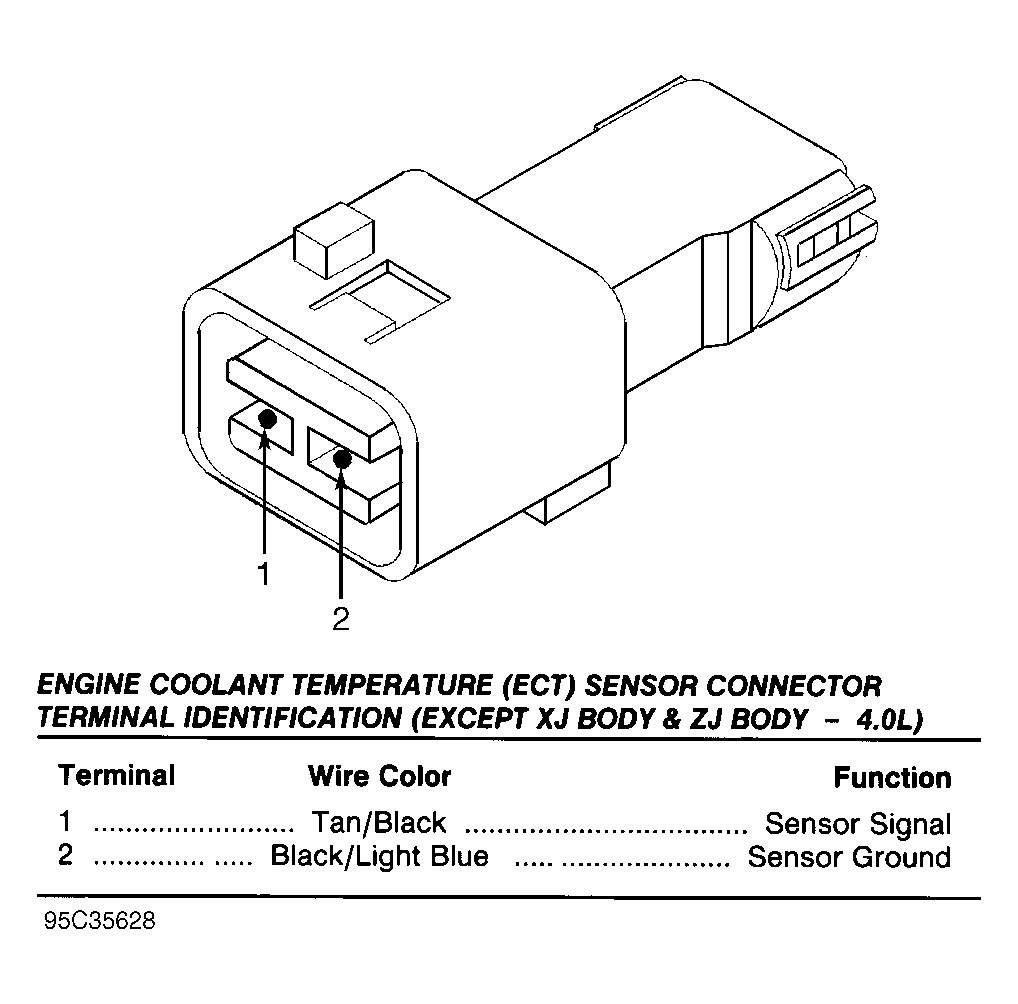

Fig 11: Engine Coolant Temp (ECT) Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

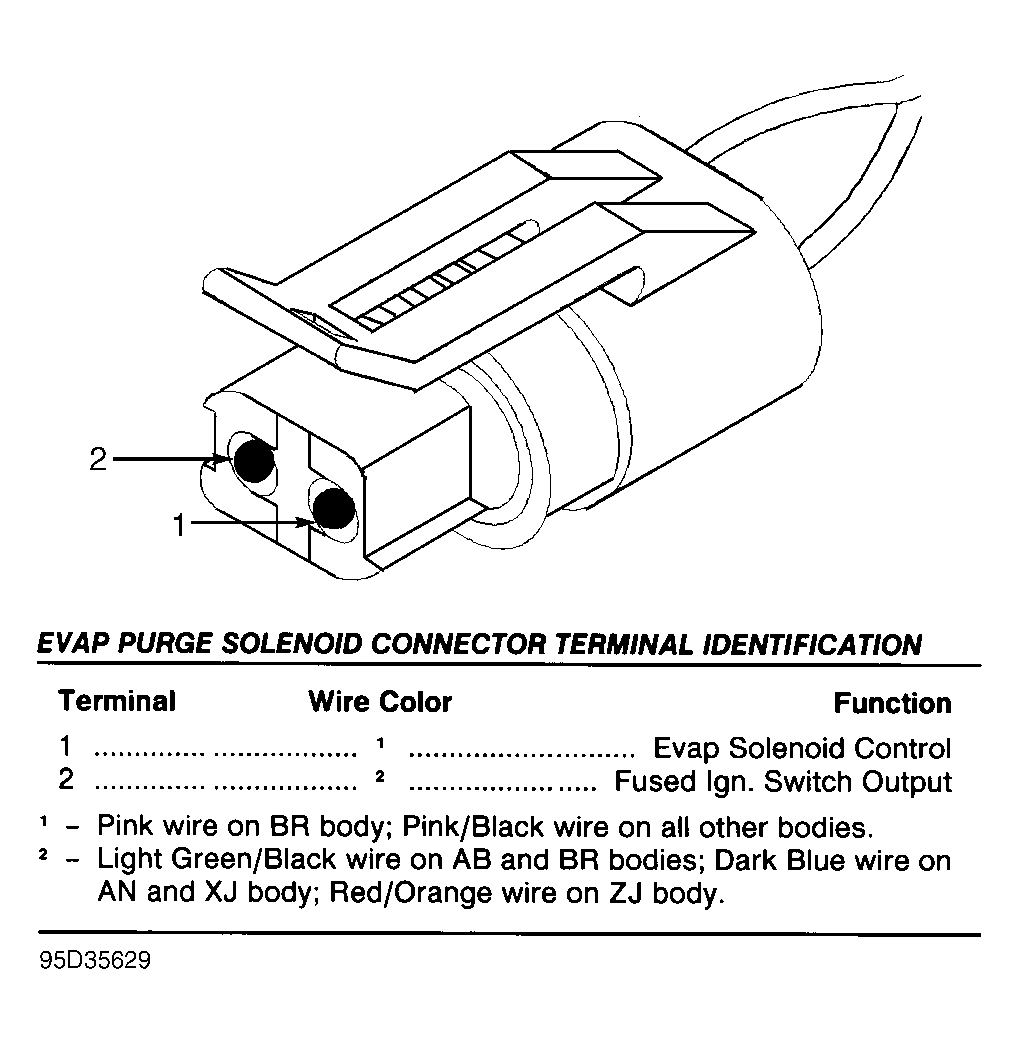

Fig 12: EVAP Purge Solenoid Connector Terminals

Courtesy of CHRYSLER CORP.

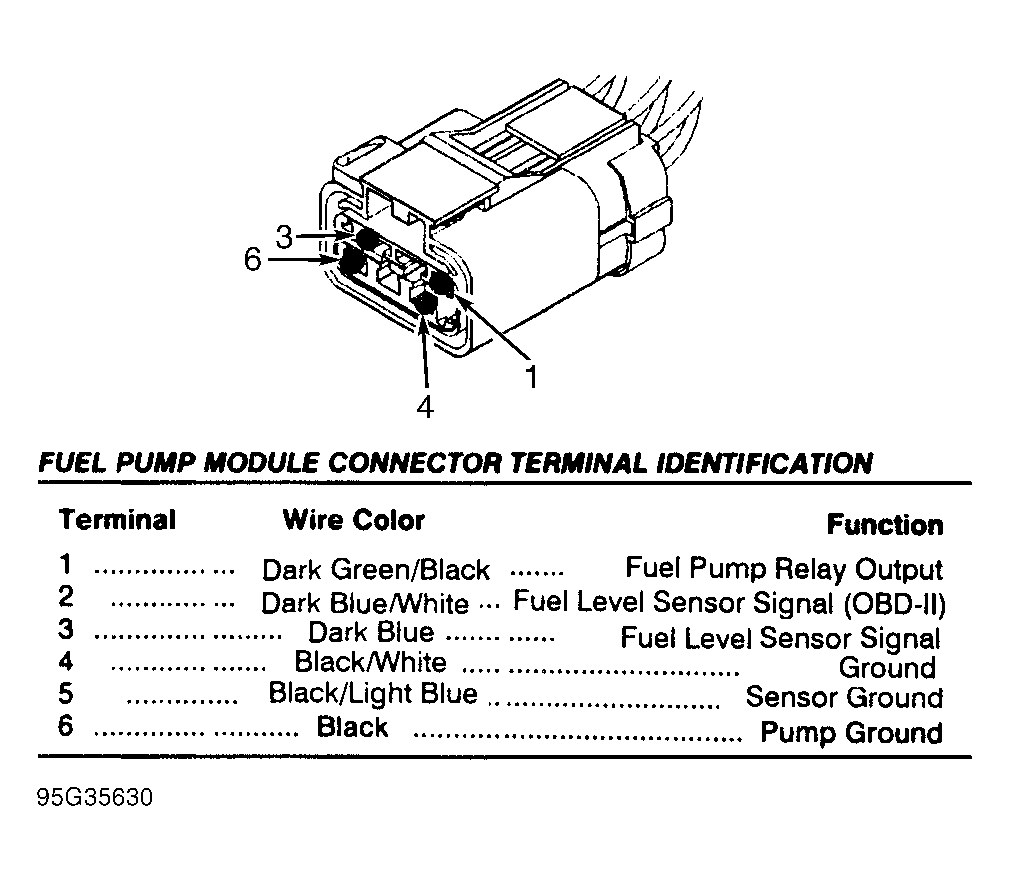

Fig 13: Fuel Pump Module Connector Terminals

Courtesy of CHRYSLER CORP.

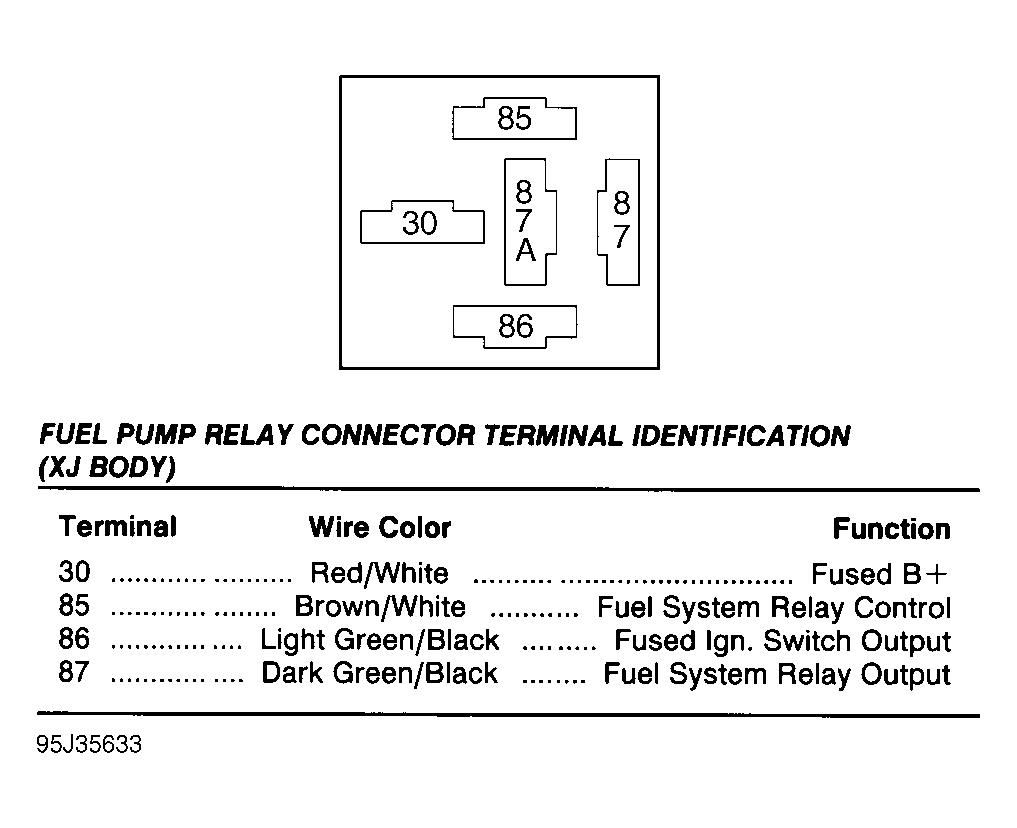

Fig 14: Fuel Pump Relay Connector Terminals

Courtesy of CHRYSLER CORP.

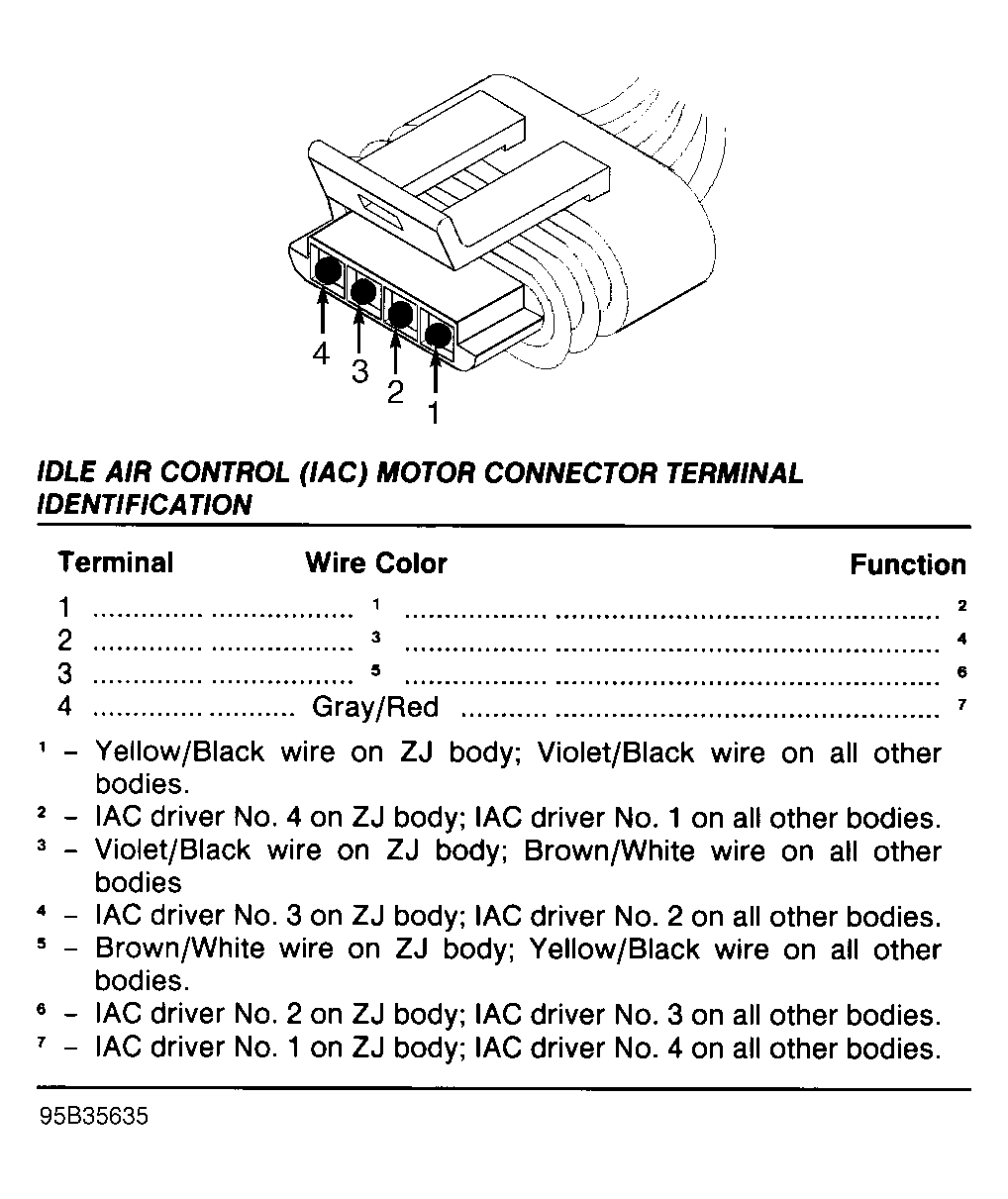

Fig 15: Idle Air Control (IAC) Motor Connector Terminals

Courtesy of CHRYSLER CORP.

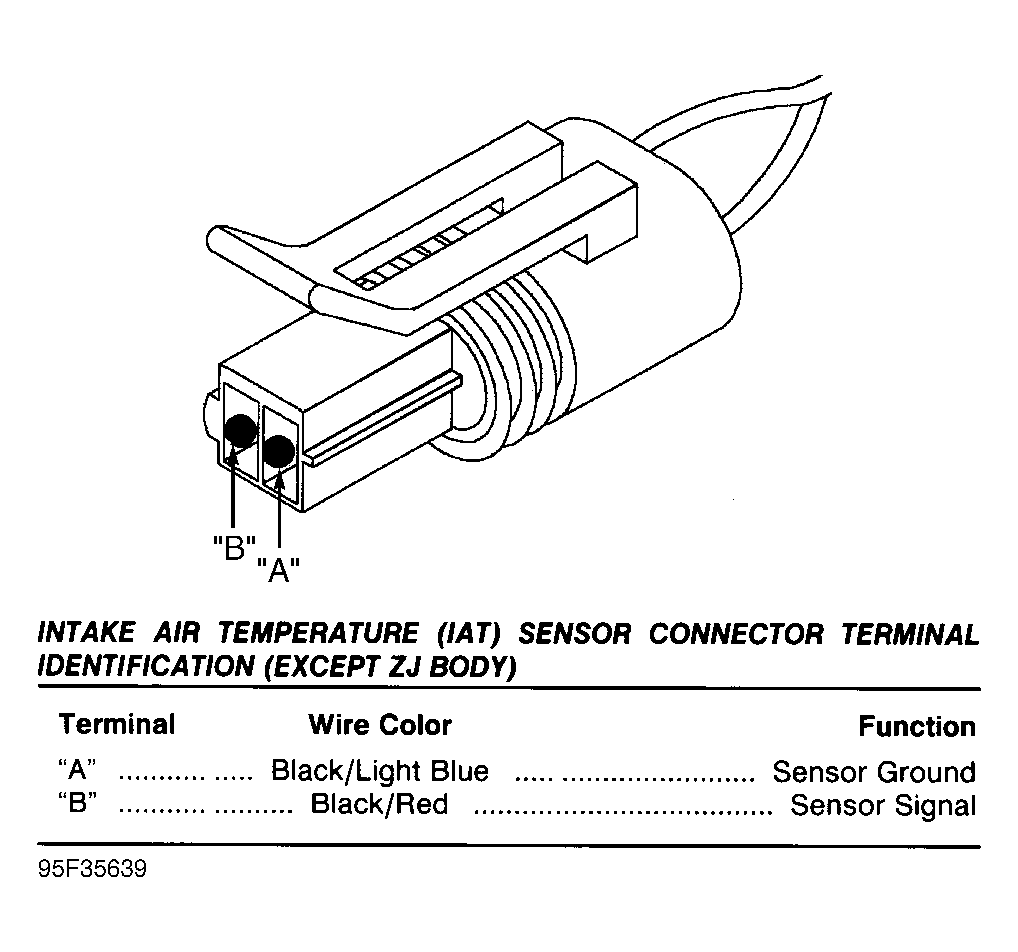

Fig 16: Intake Air Temperature Sensor (IAT) Connector Terminals

Courtesy of CHRYSLER CORP.

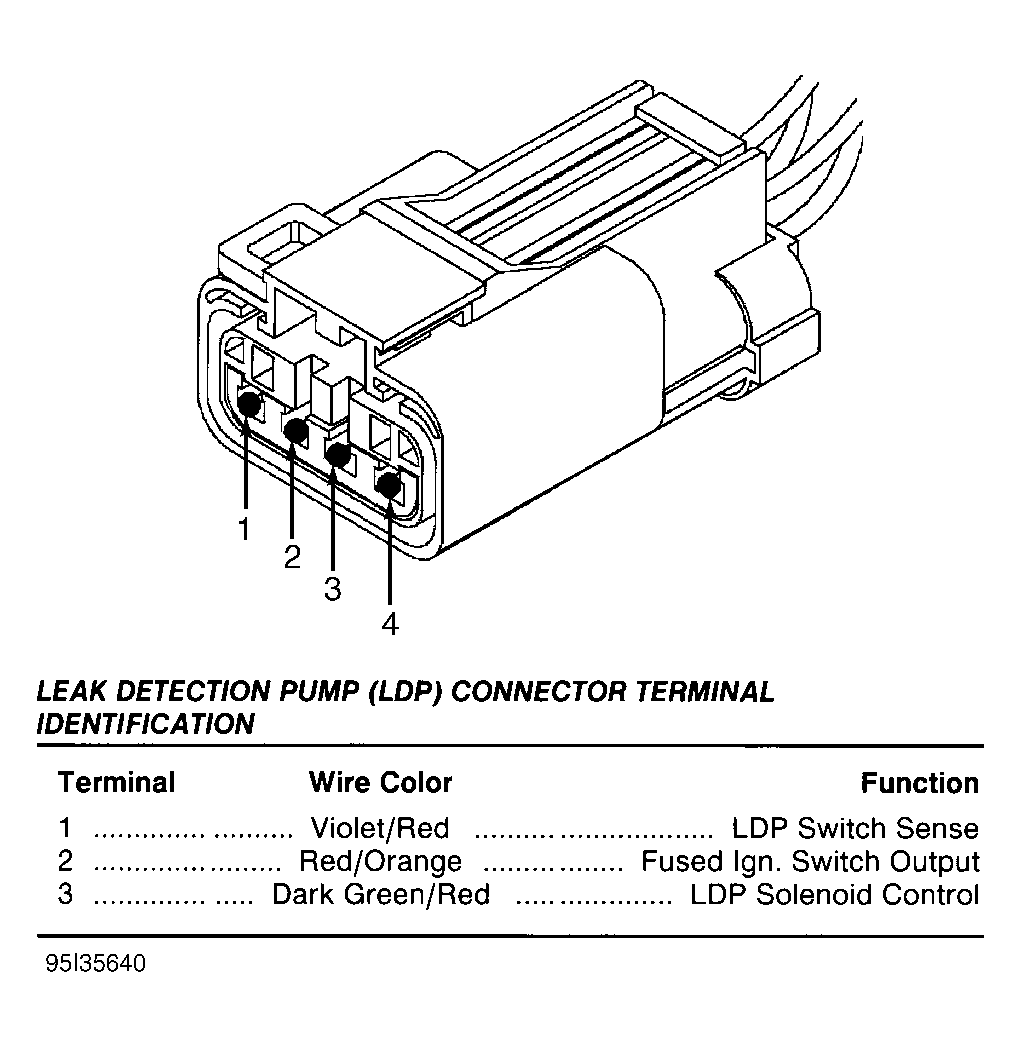

Fig 17: Leak Detection Pump (LDP) Connector Terminals

Courtesy of CHRYSLER CORP.

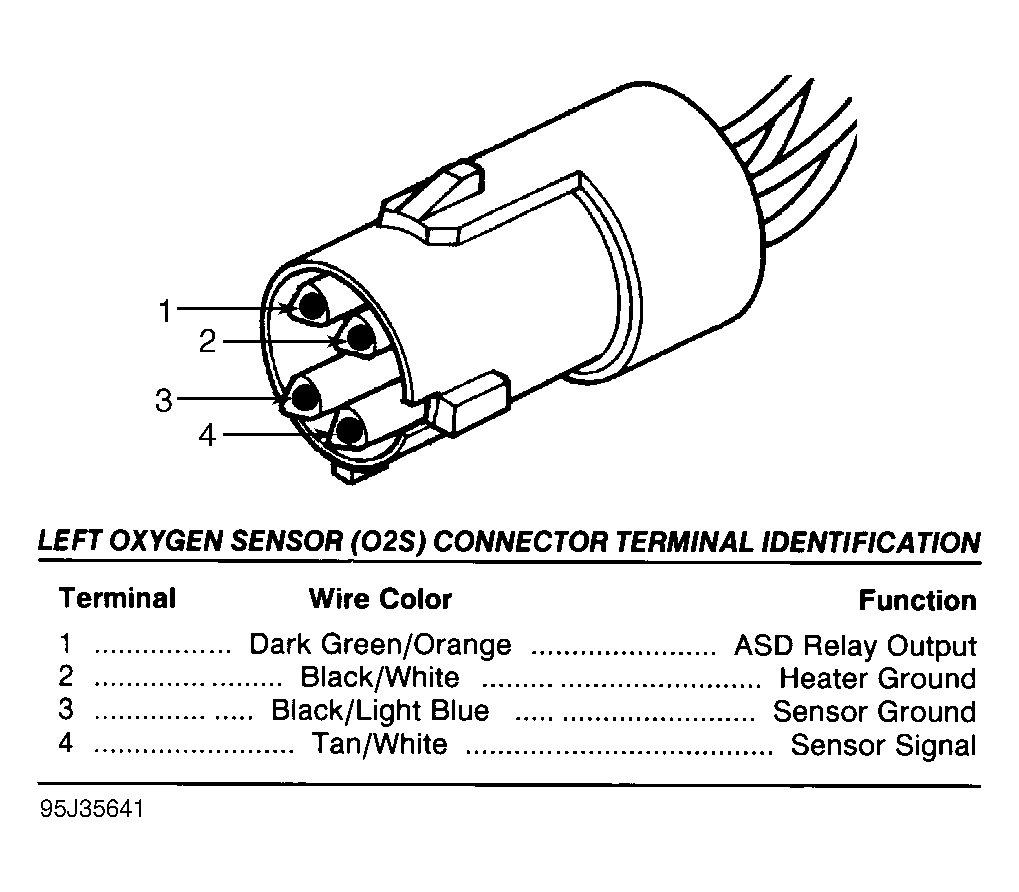

Fig 18: Left Oxygen Sensor (O2S) Connector Terminals

Courtesy of CHRYSLER CORP.

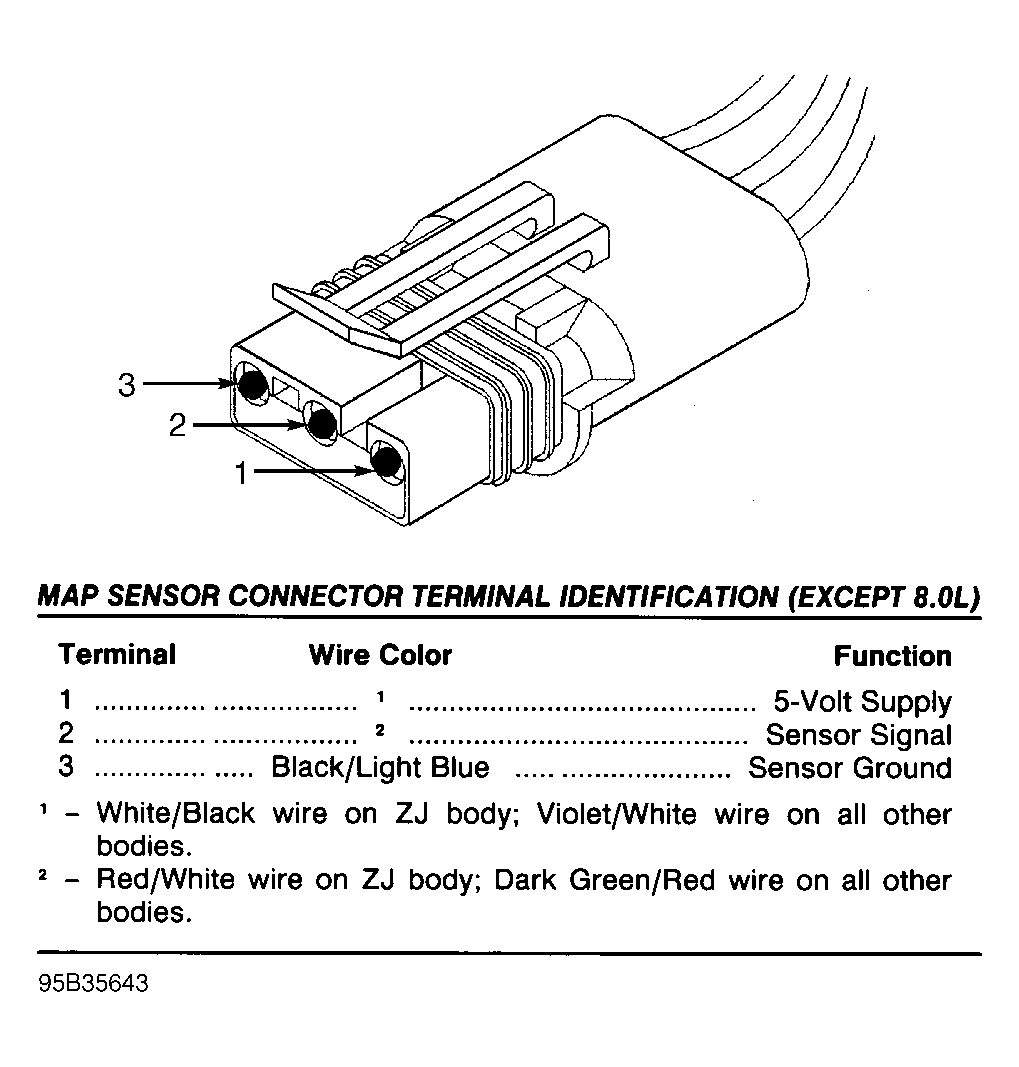

Fig 19: MAP Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

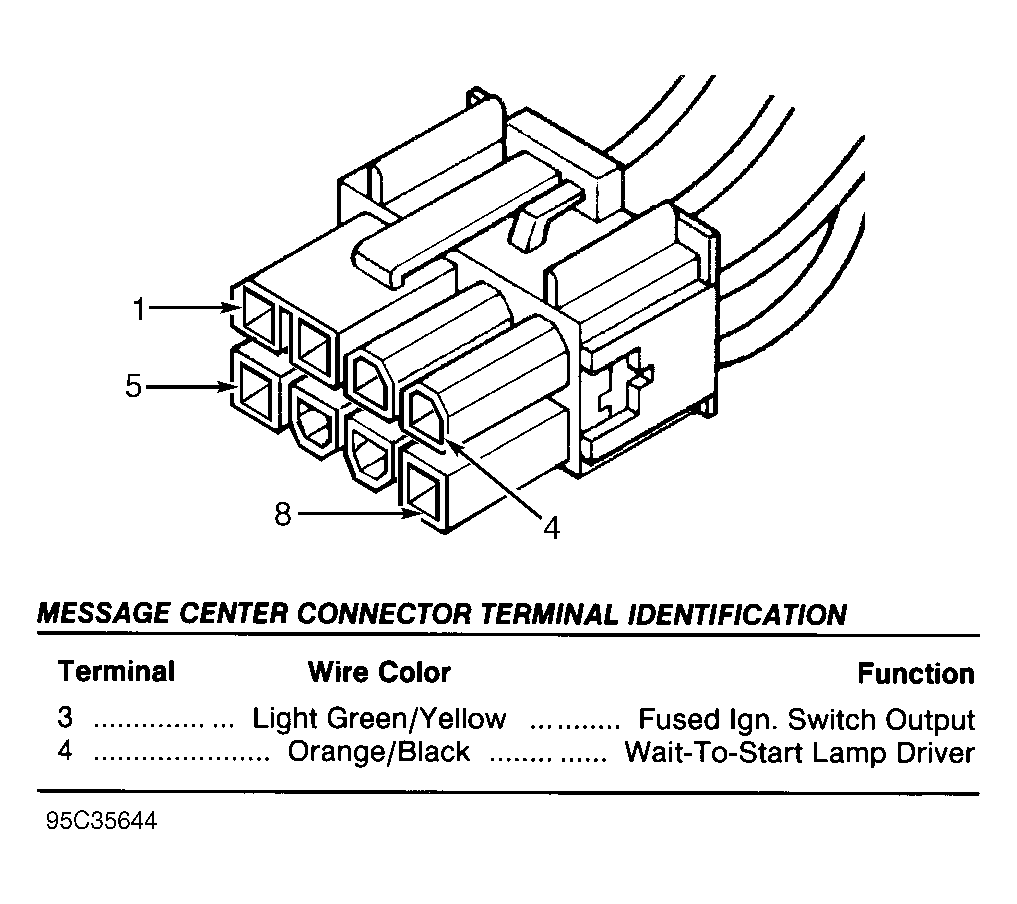

Fig 20: Message Center Connector Terminals

Courtesy of CHRYSLER CORP.

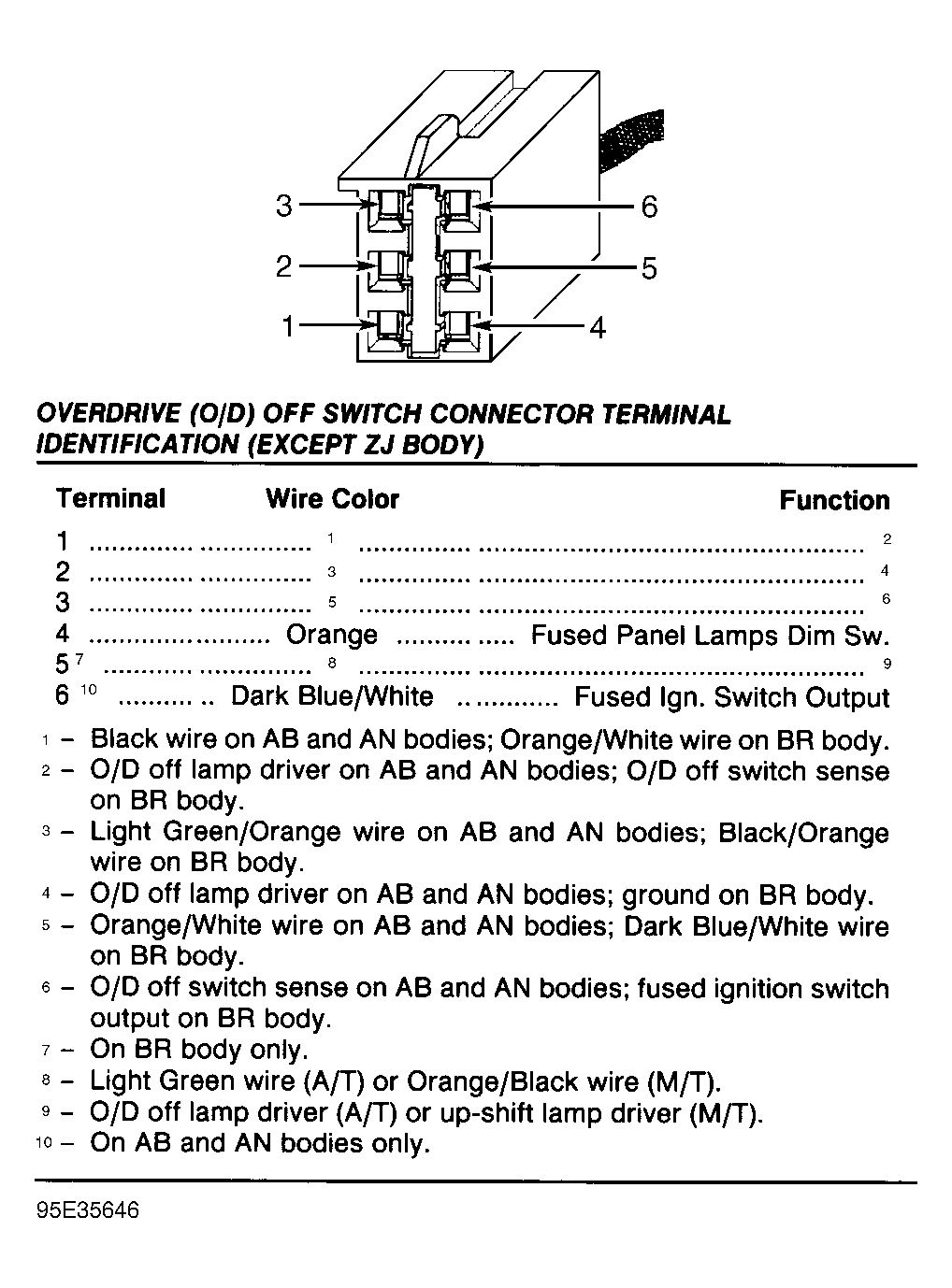

Fig 21: Overdrive (O/D) Off Switch Connector Terminals

Courtesy of CHRYSLER CORP.

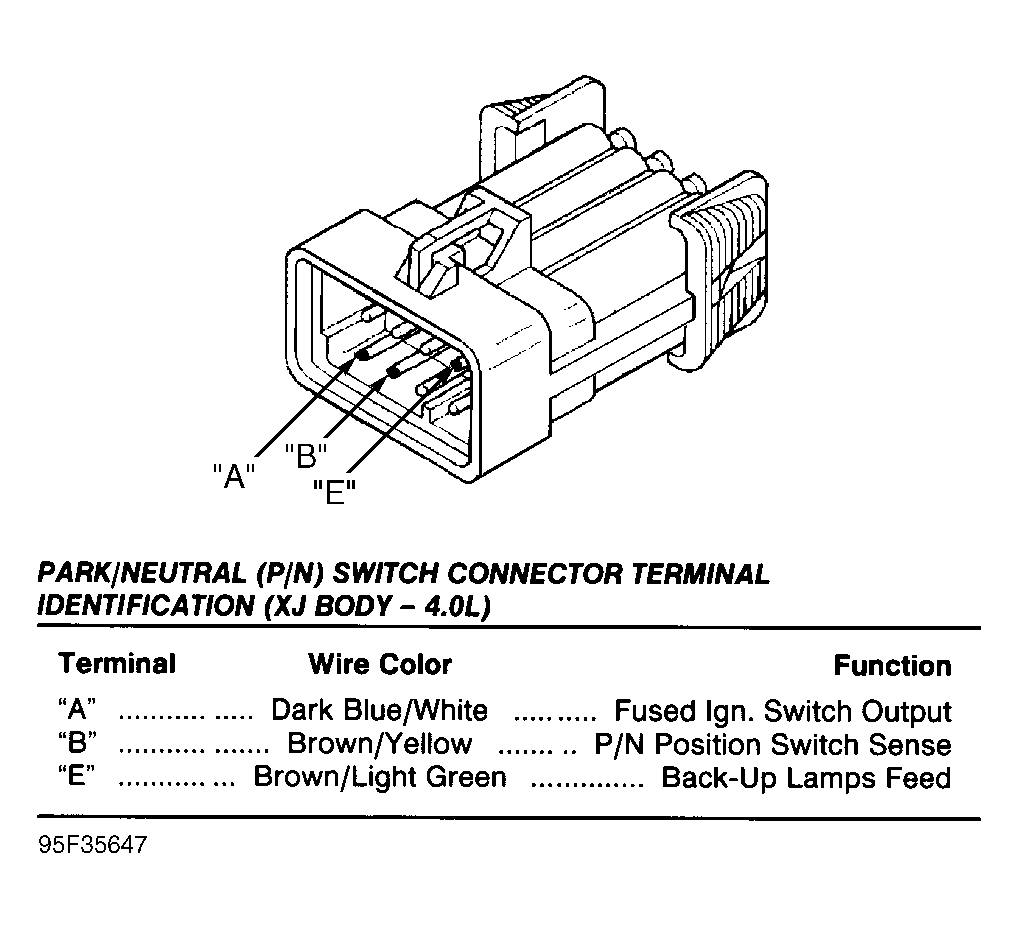

Fig 22: Park/Neutral (P/N) Switch Connector Terminals

Courtesy of CHRYSLER CORP.

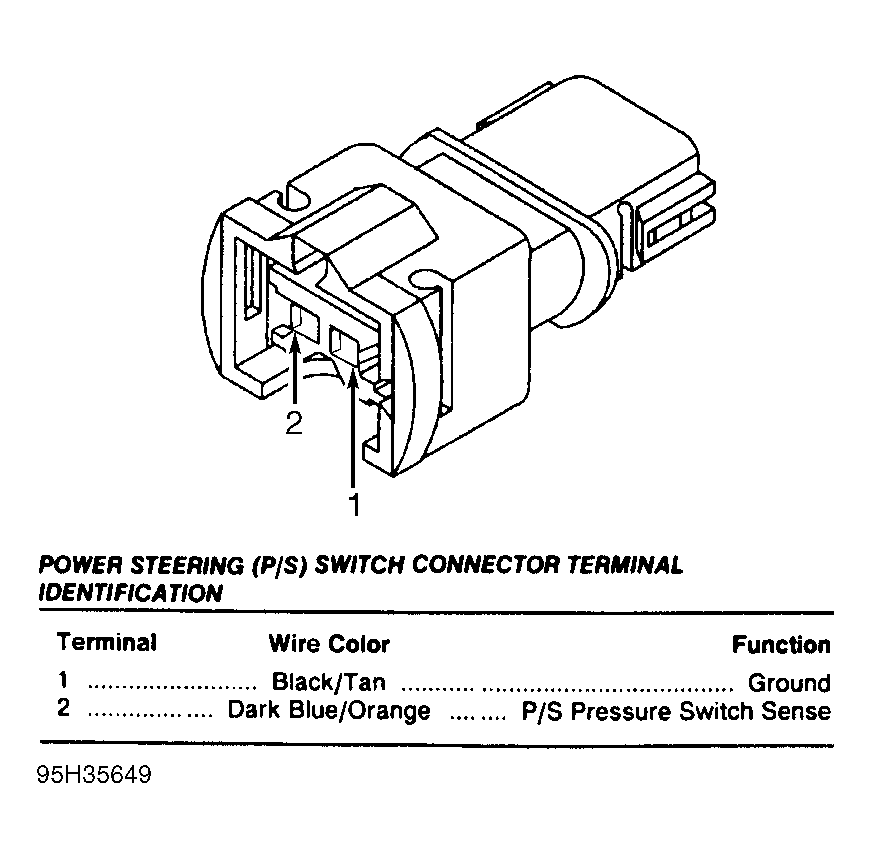

Fig 23: Power Steering (P/S) Switch Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 24: Powertrain Control Module (PCM) Connector Terminals

Courtesy of CHRYSLER CORP.

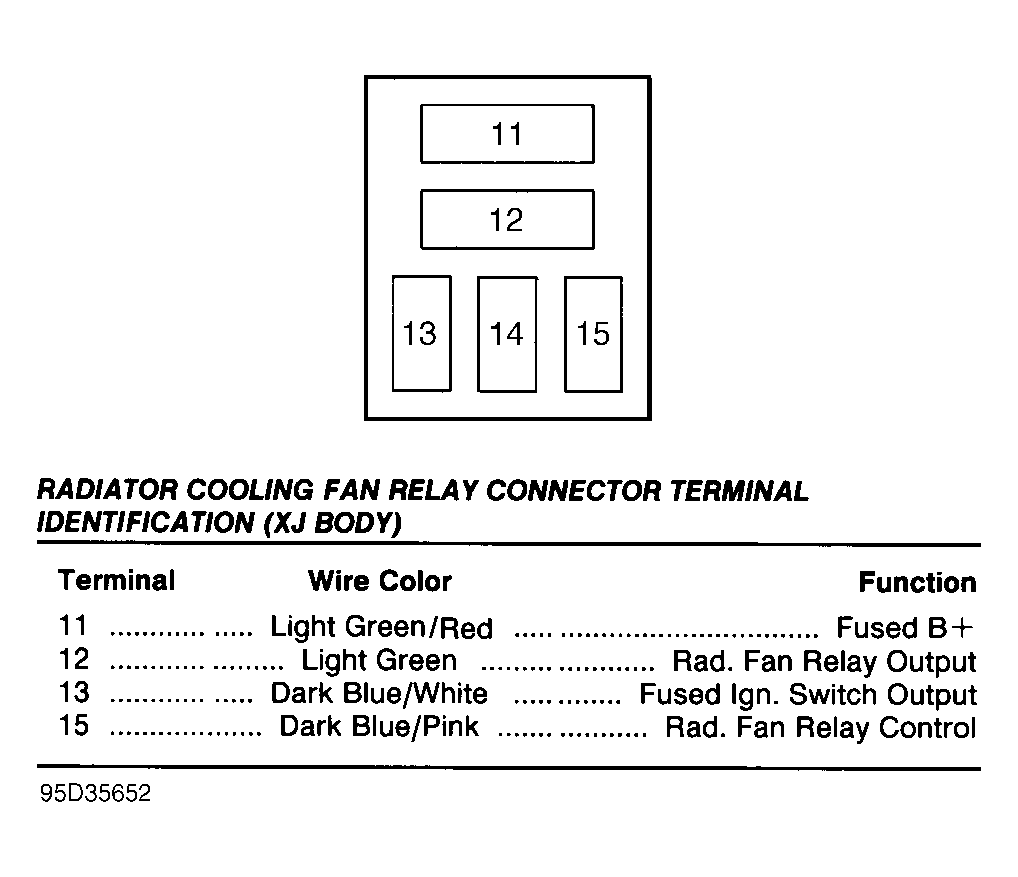

Fig 25: Radiator Cooling Fan Relay Connector Terminals

Courtesy of CHRYSLER CORP.

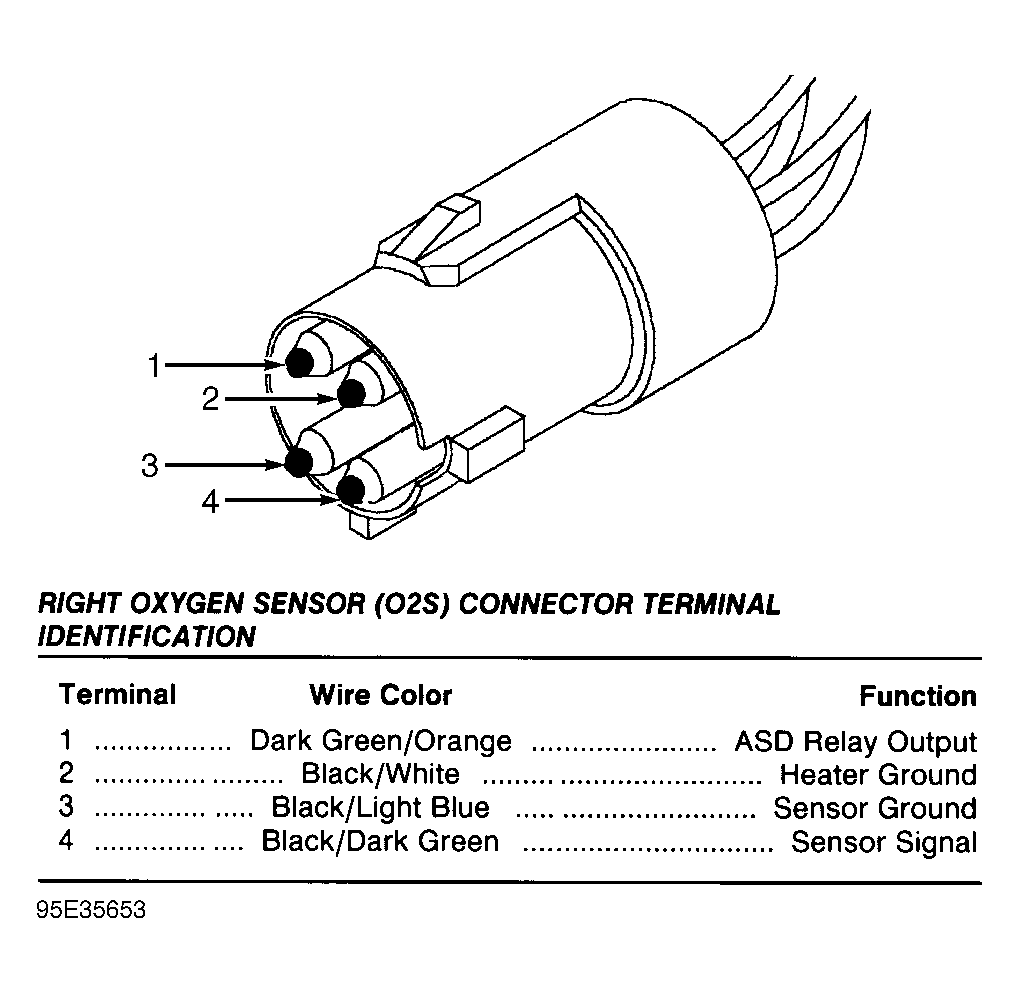

Fig 26: Right Oxygen Sensor (O2S) Connector Terminals

Courtesy of CHRYSLER CORP.

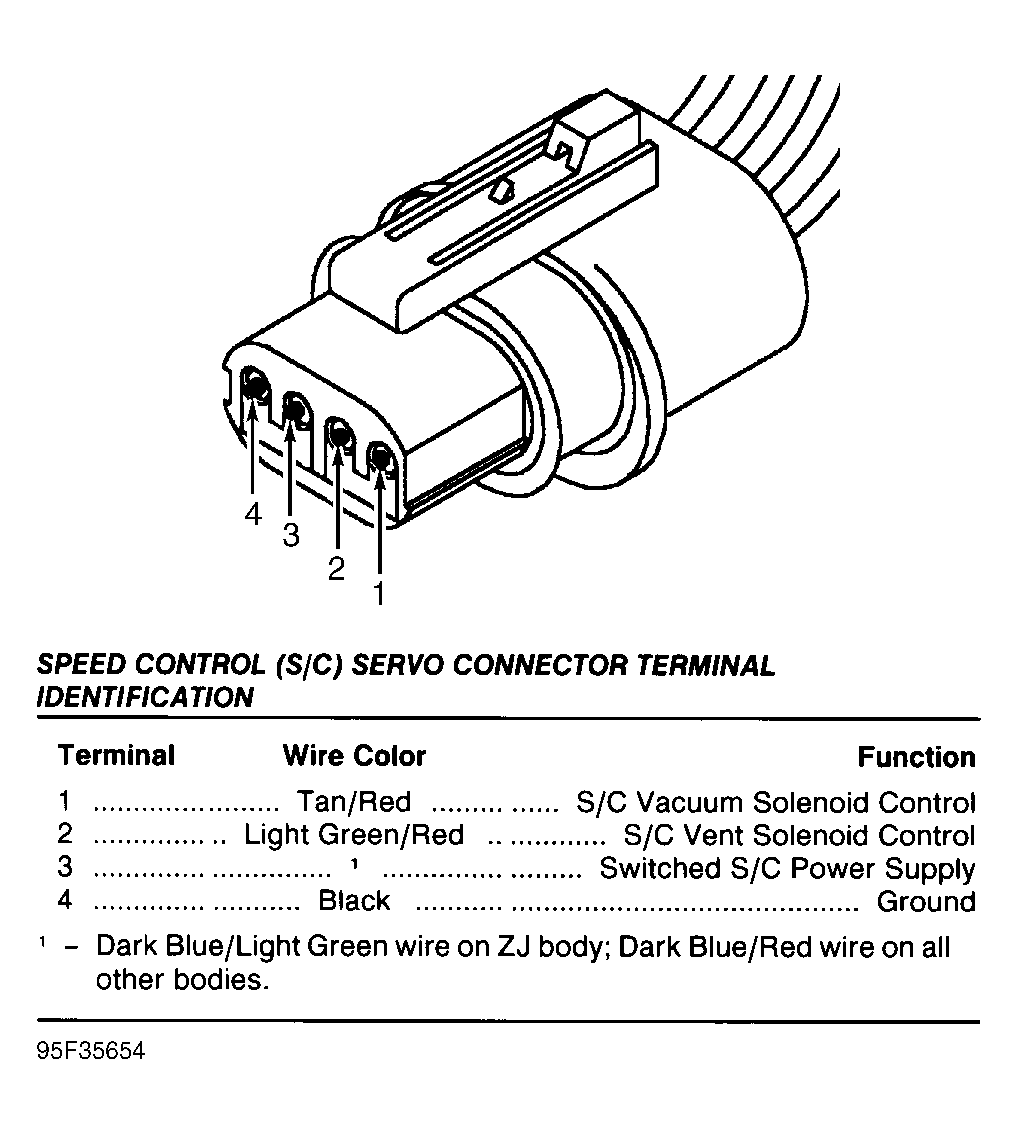

Fig 27: Speed Control Servo Connector Terminals

Courtesy of CHRYSLER CORP.

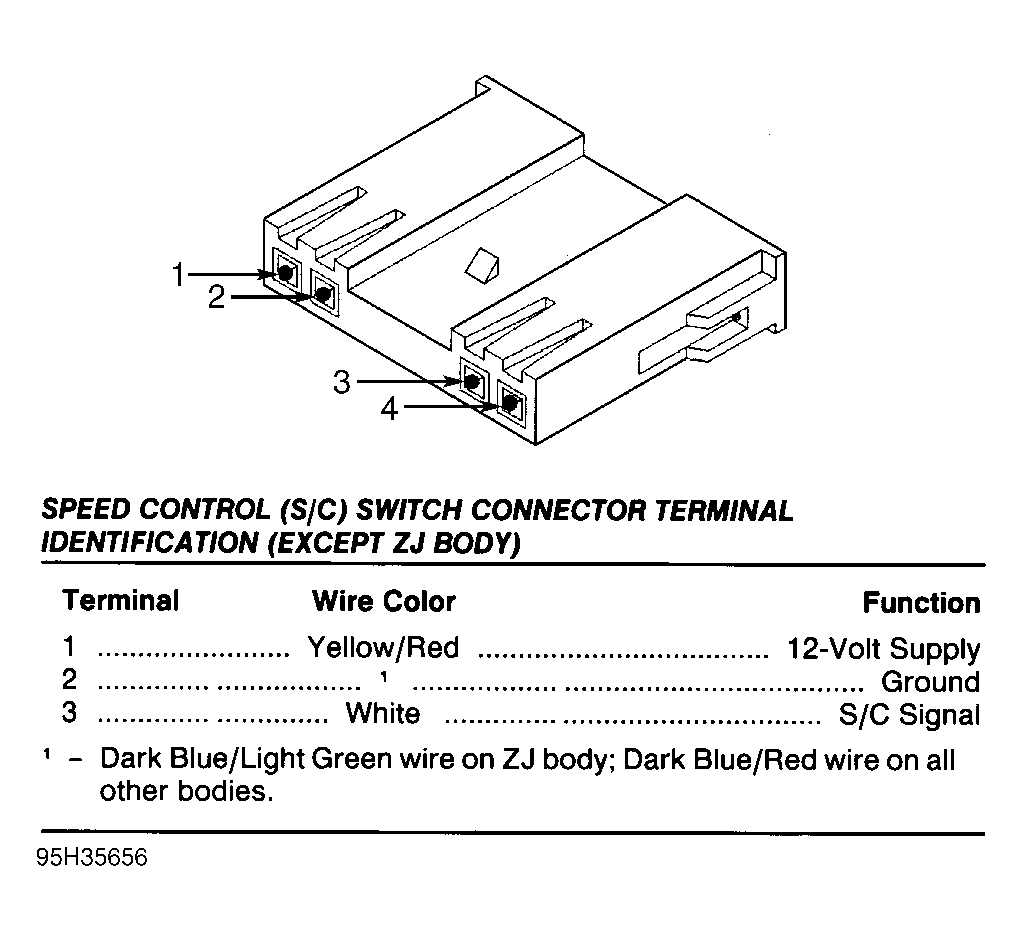

Fig 28: Speed Control Switch Connector Terminals

Courtesy of CHRYSLER CORP.

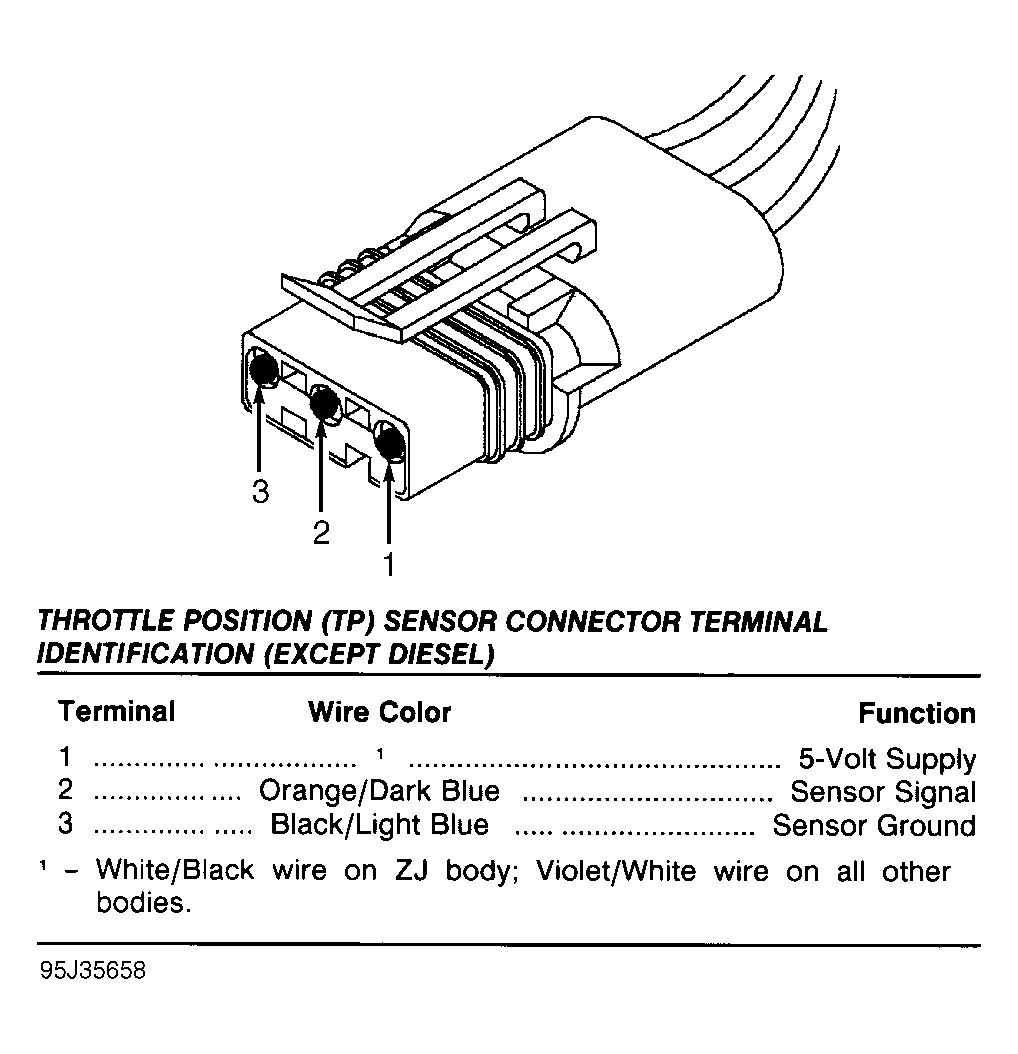

Fig 29: Throttle Position (TP) Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

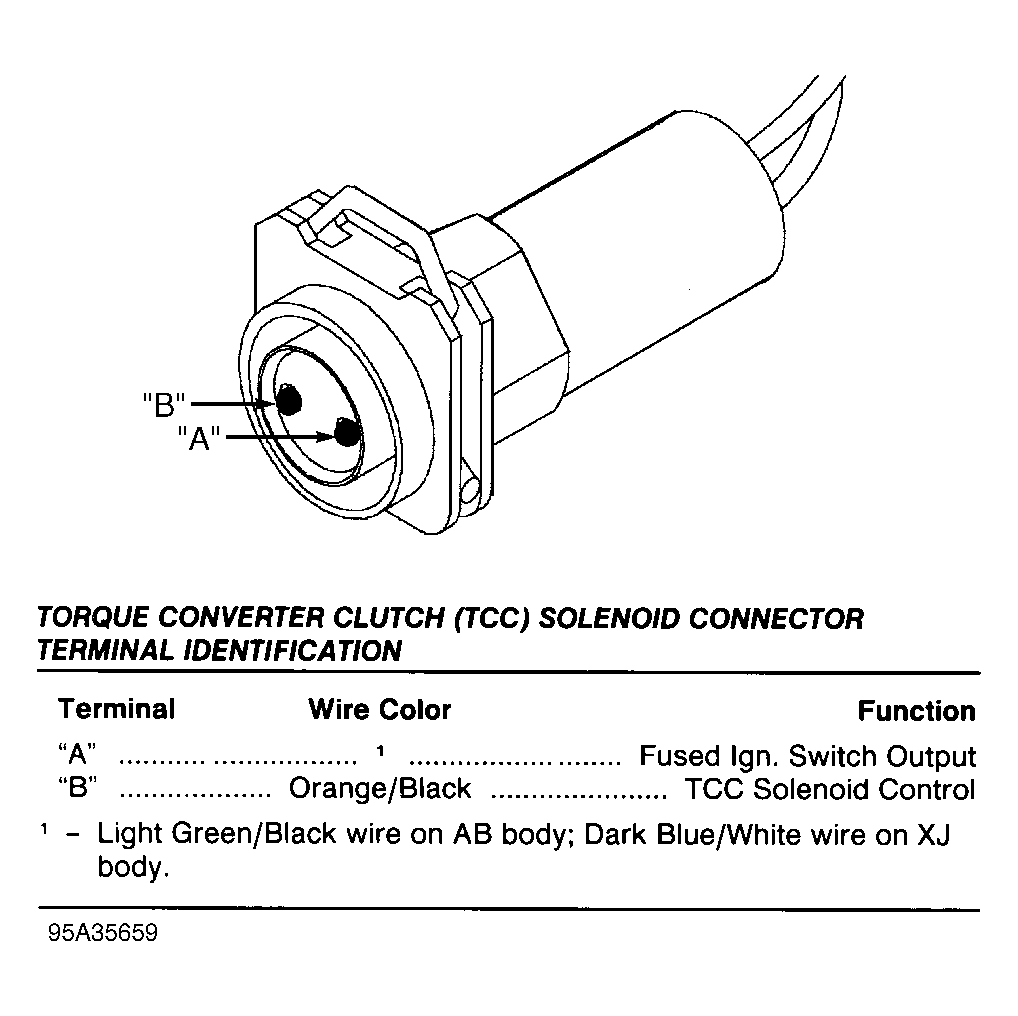

Fig 30: Torque Converter Clutch (TCC) Solenoid Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 31: Transmission Governor Pressure Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 32: Transmission Output Speed Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

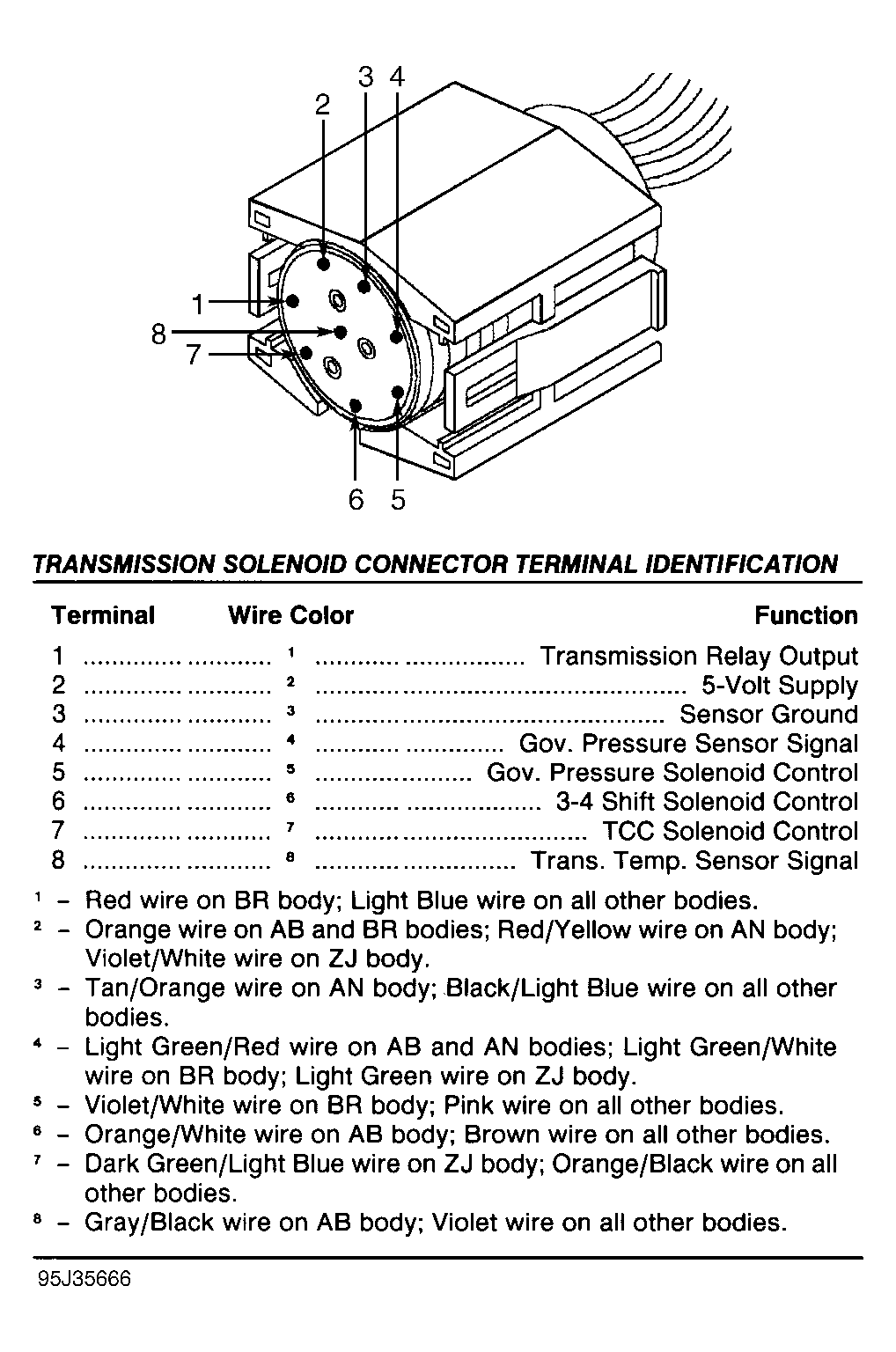

Fig 33: Transmission Solenoid Connector Terminals

Courtesy of CHRYSLER CORP.

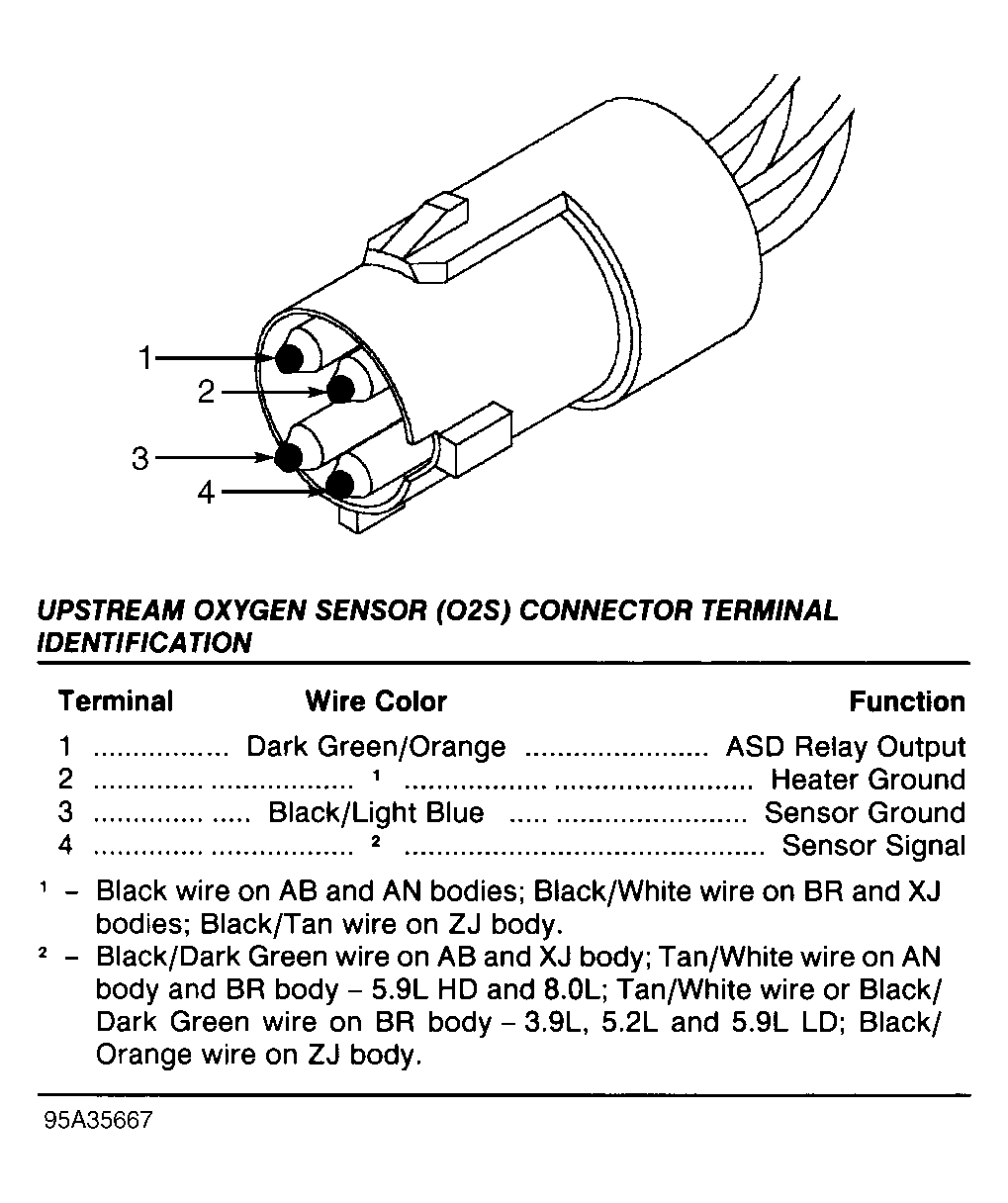

Fig 34: Upstream Oxygen Sensor (O2S) Connector Terminals

Courtesy of CHRYSLER CORP.

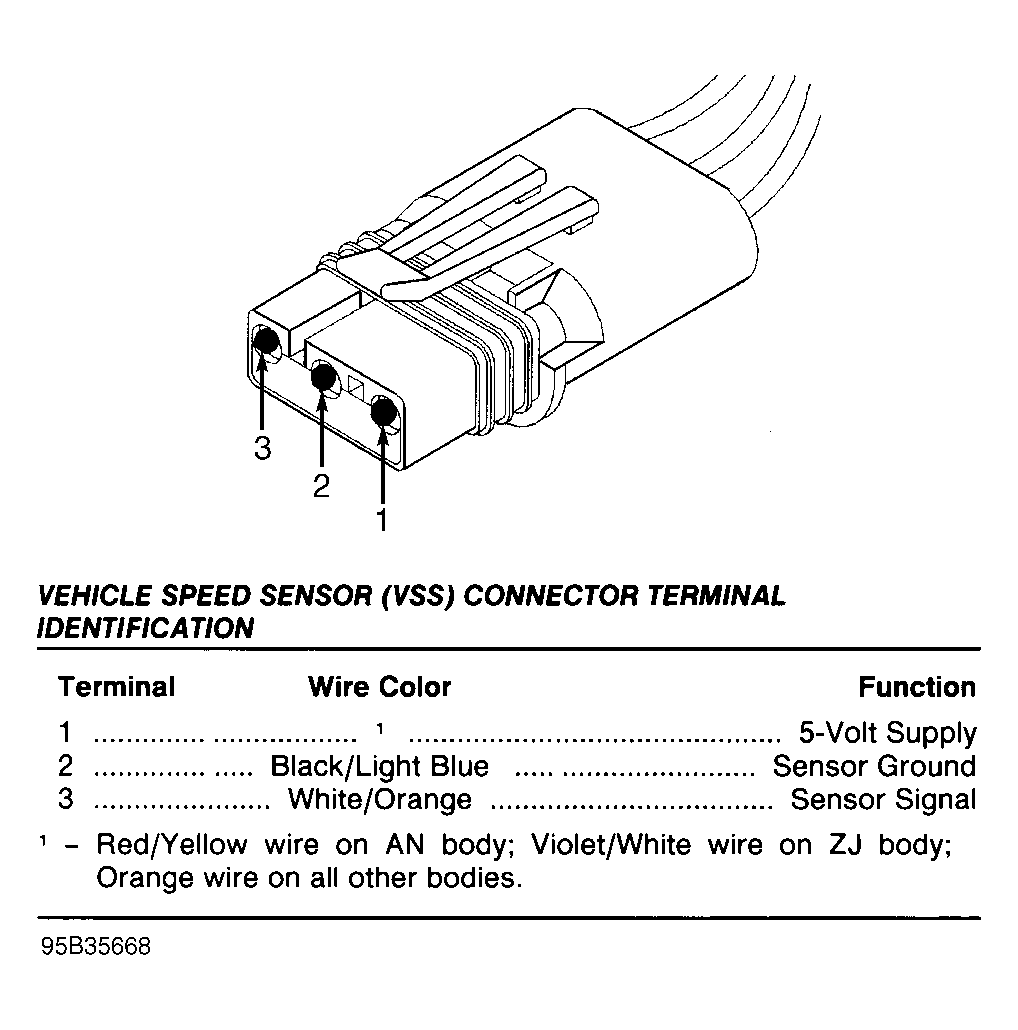

Fig 35: Vehicle Speed Sensor (VSS) Connector Terminals

Courtesy of CHRYSLER CORP.

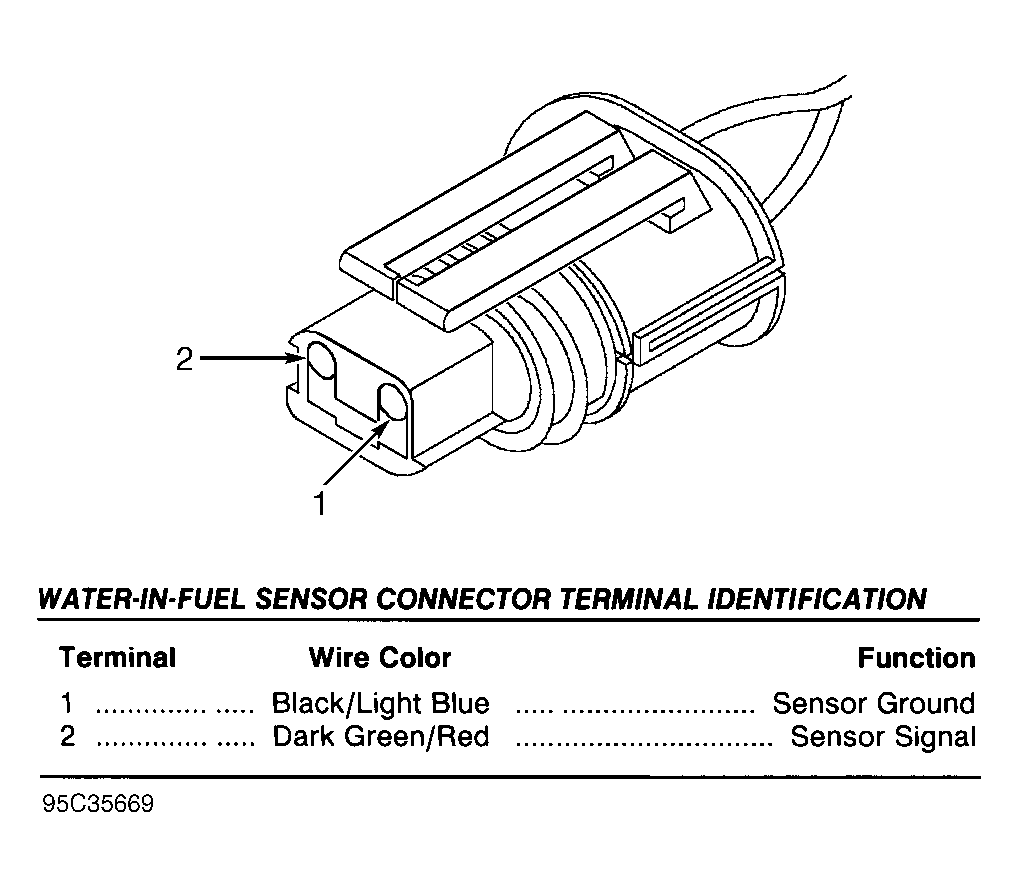

Fig 36: Water-In-Fuel Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

CAUTION: When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See the COMPUTER RELEARN PROCEDURES article in the GENERAL INFORMATION section before disconnecting battery.
