Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
Fuse Block Under left side of dash. See Figure .

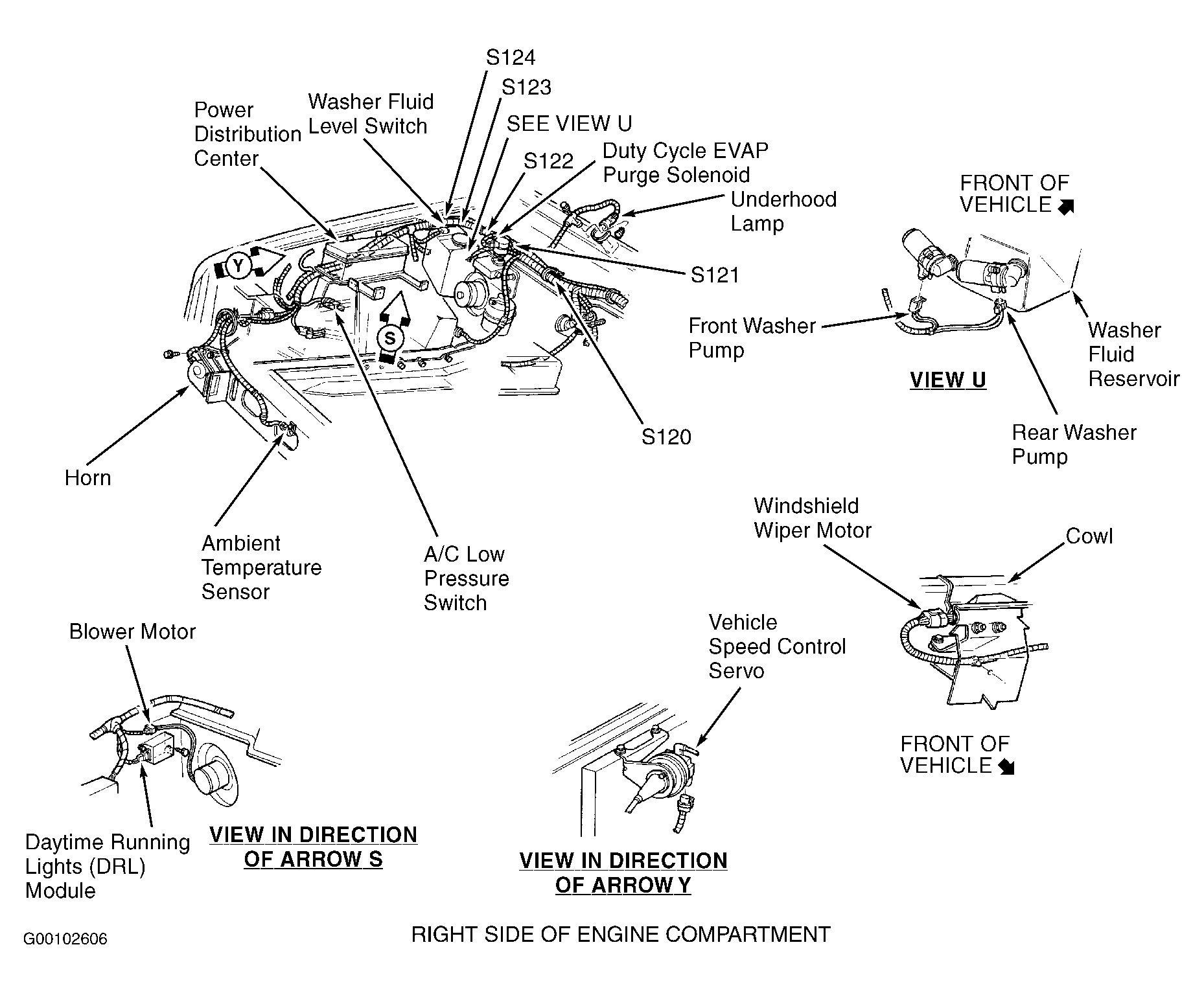

Power Distribution Center In right rear of engine compartment, on inner fender panel. See Figure .
Relay Bank Center bottom of dash.
Trailer Tow Circuit Breaker Left rear quarterpanel.

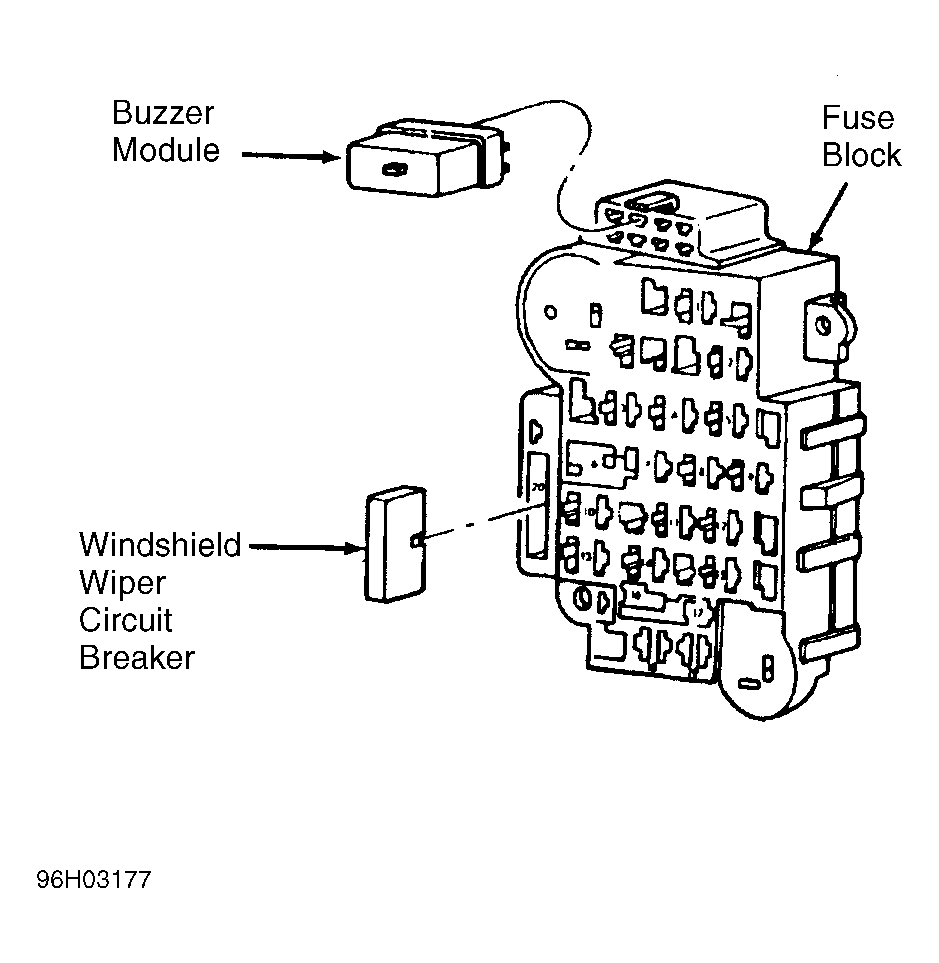

Windshield Wiper Circuit Breaker In fuse block. See Figure .
