Speed (Cruise) Control Switch

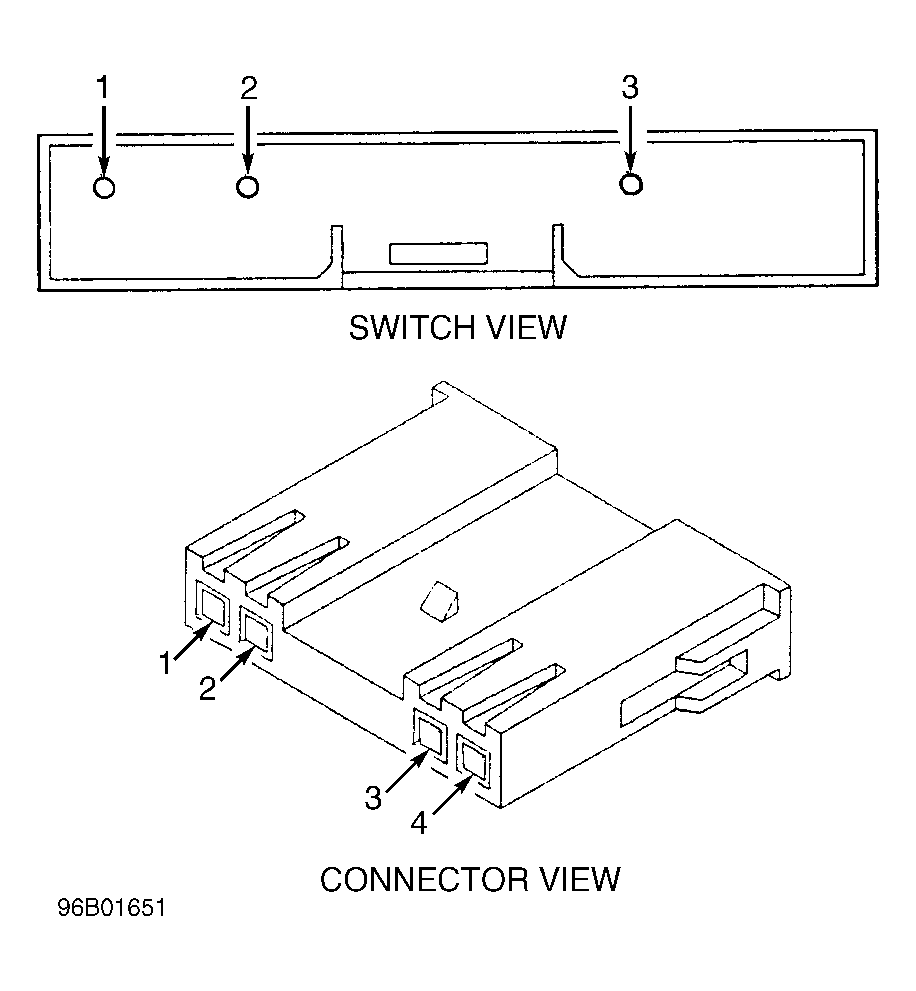

Disconnect negative battery cable. Wait 2 minutes for air bag system capacitor to discharge. Remove speed control switch assembly from steering wheel and disconnect connector. See SPEED (CRUISE) CONTROL SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check resistance at speed control switch terminals No. 1 and 2. See Fig 1 . Resistance should be 798-814 ohms with no switched depressed. Check resistance at speed control switch terminals No. 2 and 3. If continuity is not as specified in the SPEED CONTROL SWITCH RESISTANCE SPECIFICATIONS TABLE 1 , replace defective speed control switch.
SPEED CONTROL SWITCH RESISTANCE SPECIFICATIONS
| Switch Position | Resistance (Ohms) |
|---|---|
| None Depressed | Infinity (Open Circuit) |
| ON | 900-918 |
| RESUME/ACCEL | 15,246-15,554 |
| SET/DECEL | 6584-6716 |
