Connector Circuit Identification

ABS MAIN RELAY CONNECTOR

Terminal No. Wire Color Circuit Function
30 Gray/Yellow Main Relay Output
85 Pink Main Control Relay
86 Light Green/Yellow Fused Ignition Switch Output
87 Red/Dark Green Fused B (+)
87A Black/Tan Ground

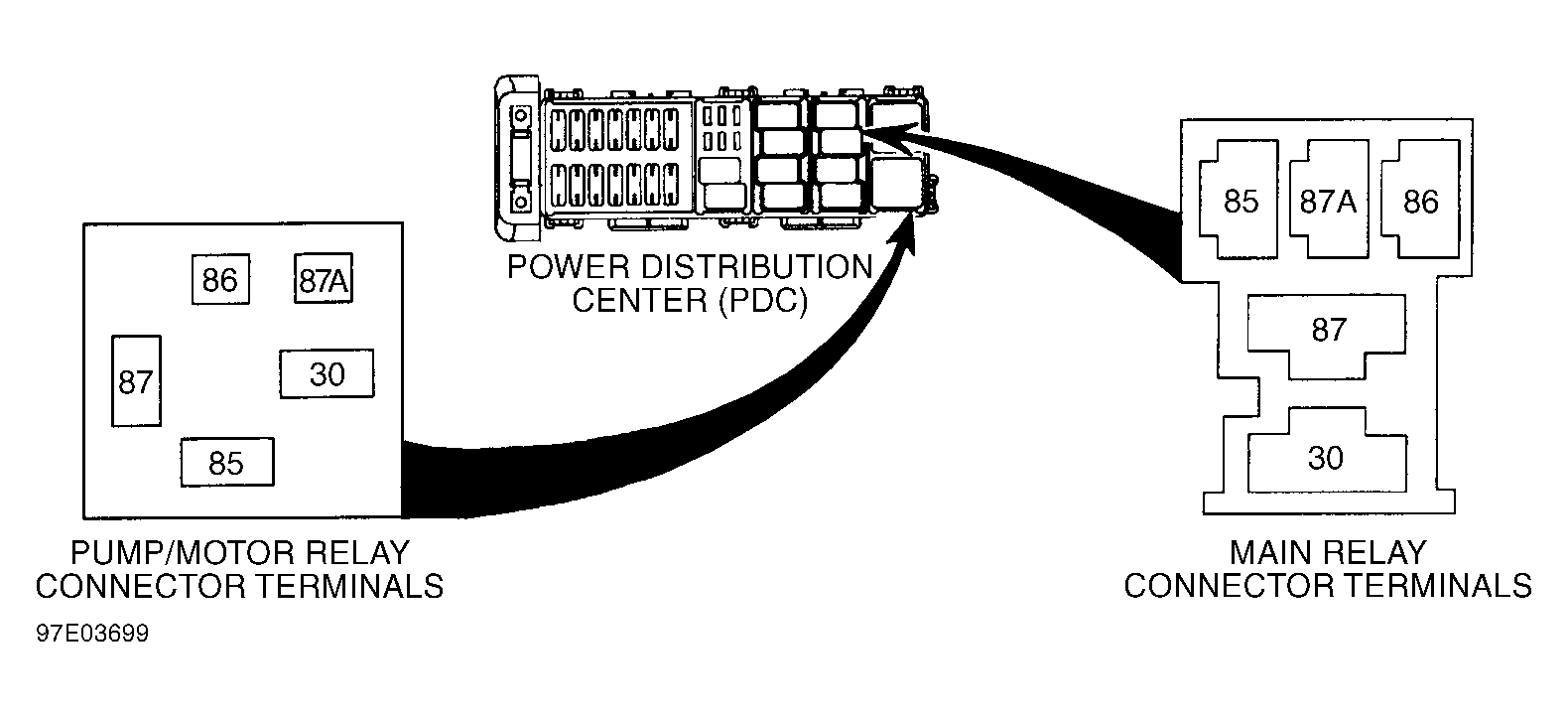

Fig 1: ABS Relay Connectors (Main & Pump/Motor Relays)
G97E03699Courtesy of CHRYSLER CORP.
ABS PUMP/MOTOR RELAY CONNECTOR

Terminal No. Wire Color Circuit Function
30 Red/Dark Green Fused B (+)
85 Gray/Yellow Main Relay Output
86 Gray Pump/Motor Relay Control
87 Tan/Black Pump/Motor Relay Output
87A Tan/Black Ground
NOTE: In following table, terminals A1-A12 refer to connector "A" and terminals B1-B18 refer to connector "B". See Fig 2.
CONTROLLER ANTI-LOCK BRAKE (CAB) CONNECTOR

Terminal No. Wire Color Circuit Function
Connector "A"
A1 Violet ABS Warning Light Driver
A2 Pink/Orange "G" Switch Test Signal
A3 Pink SCI Transmit
A5 Light Green/Yellow Fused Ignition Switch Output
A6 Yellow/Violet "G" Switch No. 1 Sense
A7 Tan/White "G" Switch No. 2 Sense
A8 White/Tan Brakelight Switch Output
A9 Light Green/Dark Blue LR WSS (-)
A10 Light Green LR WSS (+)
A11 Yellow RR WSS (-)
A12 Yellow/Dark Blue RR WSS (+)
Connector "B"
B1 White RF WSS (+)
B2 White/Dark Blue RF WSS (-)
B3 Tan/Black Pump/Motor Relay Output
B4 White/Black Rear Inlet Valve Control
B5 Gray/Yellow Main Relay Output
B6 Dark Green/White RF Outlet Valve Control
B7 Gray Pump/Motor Relay Control
B8 Dark Green/Black LF Outlet Valve Control
B9 Red LF WSS (+)
B10 Red/Dark Blue LF WSS (-)
B11 Pink/White Main Relay Control
B12 Dark Green/ORG Rear Outlet Valve Control
B13 Black Ground
B14 Black Ground
B15 White/Tan RF Inlet Valve Control
B18 White/Light Green LF Inlet Valve Control

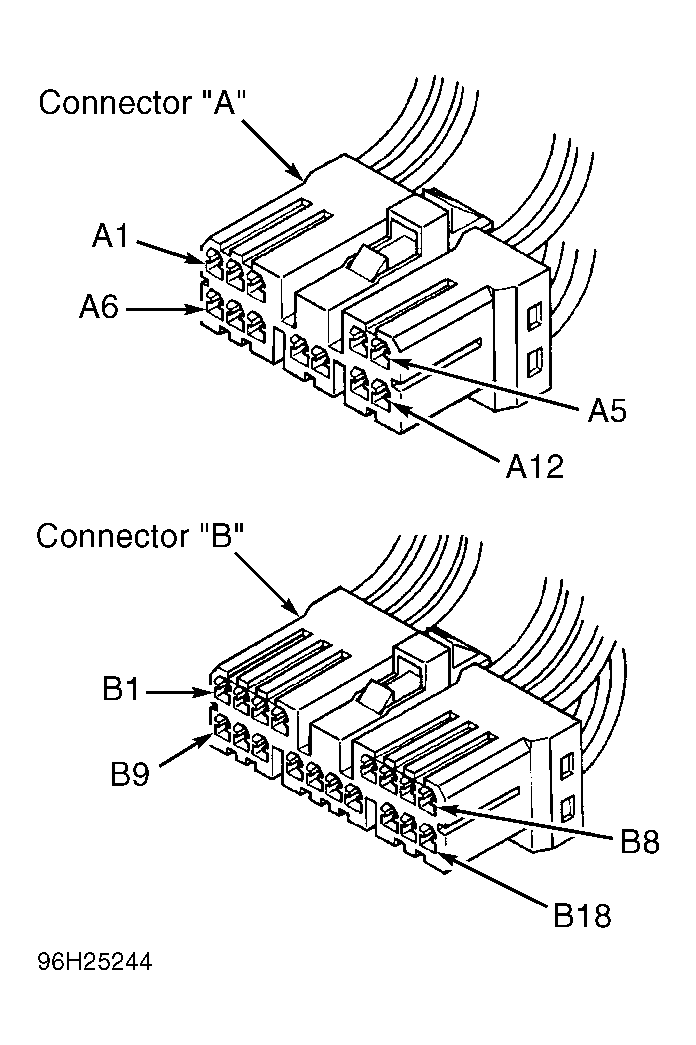

Fig 2: Controller Anti-Lock Brake (CAB) Connectors
G96H25244Courtesy of CHRYSLER CORP.
DATA LINK CONNECTOR (DLC)

Terminal No. Wire Color Circuit Function
3 Violet/Brown CCD Bus (+)
4 Black Ground
5 Black/Orange Ground
6 Black/White SCI Receive
7 Black/Pink SCI Transmit
11 White/Black CCD Bus (-)
12 White Chassis RX
16 Violet Fused B (+)
Fig 3: Data Link Connector (DLC)
G96G25243Courtesy of CHRYSLER CORP.
FRONT WHEEL SPEED SENSOR (WSS) CONNECTOR

Terminal No. Wire Color Circuit Function
Left
1 Red/Dark Blue Sensor (-)
2 Red Sensor (+)
Right
1 White/Dark Blue Sensor (-)
2 White Sensor (+)
Fig 4: Front Wheel Speed Sensor (WSS) Connector
G96A25247Courtesy of CHRYSLER CORP.
"G" SWITCH CONNECTOR

Terminal No. Wire Color Circuit Function
1 Pink/Orange "G" Switch Test Signal
l2 Yellow/Violet "G" Switch No. 1 Sense
3 Tan/White "G" Switch No. 2 Sense
Fig 5: "G" Switch Connector
G96C25249Courtesy of CHRYSLER CORP.
HYDRAULIC CONTROL UNIT (HCU) CONNECTOR

Terminal No. Wire Color Circuit Function
1 Gray/Yellow Main Relay Output
2 White/Black Rear Inlet Valve Control
3 White/Tan RF Inlet Valve Control
4 White/Light Green LF Inlet Valve Control
7 Dark Green/Orange Rear Outlet Valve Control
8 Dark Green/White RF Outlet Valve Control
9 Dark Green/Black LF Outlet Valve Control
10 Gray/Yellow Main Relay Output
Fig 6: Hydraulic Control Unit (HCU) Component Connector
G97I28884Courtesy of CHRYSLER CORP.
Fig 7: Hydraulic Control Unit (HCU) Harness Connector
G97A28886Courtesy of CHRYSLER CORP.
IGNITION SWITCH CONNECTOR

Terminal No. Wire Color Circuit Function
1 Yellow Ignition Switch Output (START)
2 Dark Blue Ignition Switch Output (RUN/START)
3 Gray/White Red BRAKE Warning Light Driver
4 Red Fused B (+)
5 Orange Ignition Switch Output (RUN)
6 Violet Ignition Switch Output (ACC/RUN)
7 Red Fused B (+) (START)
Fig 8: Ignition Switch Connector
G96I25252Courtesy of CHRYSLER CORP.
NOTE: This table applies to left side instrument cluster connector.
INSTRUMENT CLUSTER CONNECTOR

Terminal No. Wire Color Circuit Function
1 Black/Tan Washer Fluid Switch Sensor
2 Black/Pink Malfunction Indicator Light (MIL)
3 White/Black Fused Ignition Switch Output (RUN/START)
4 White/Black Fused Ignition Switch Output (RUN/START)
6 Yellow ABS Light Driver
7 Light Green/Orange Up-Shift Light Driver
8 Dark Green Red BRAKE Warning Light & Park Brake Light Driver
11 Black/Yellow 4WD Full Time
12 Black/Light Blue 4WD Lock
13 Pink/Black Generator Light Driver
14 White/Black Fused Ign. Switch Output (RUN/START)
15 White Seat Belt Warning Light Driver
16 Black Ground
Fig 9: Instrument Cluster Connector
G96J25253Courtesy of CHRYSLER CORP.
PUMP/MOTOR CONNECTOR

Terminal No. Wire Color Circuit Function
1 Tan/Black Pump/Motor Relay Output
2 Black/Tan Ground
Fig 10: Pump/Motor Connector
G96G25250Courtesy of CHRYSLER CORP.
REAR WHEEL SPEED SENSOR (WSS) CONNECTOR

Terminal No. Wire Color Circuit Function
Left
Terminal "A" Light Green/Dark Blue Sensor (-)
Terminal "B" Light Green Sensor (+)
Right
Terminal "A" Yellow/Dark Blue Sensor (-)
Terminal "B" Yellow Sensor (+)
Fig 11: Rear Wheel Speed Sensor (WSS) Connector (Left Rear)
G96B25248Courtesy of CHRYSLER CORP.
Fig 12: Rear Wheel Speed Sensor (WSS) Connector (Right Rear)
G97D28889Courtesy of CHRYSLER CORP.
