Steering Gear: Notes

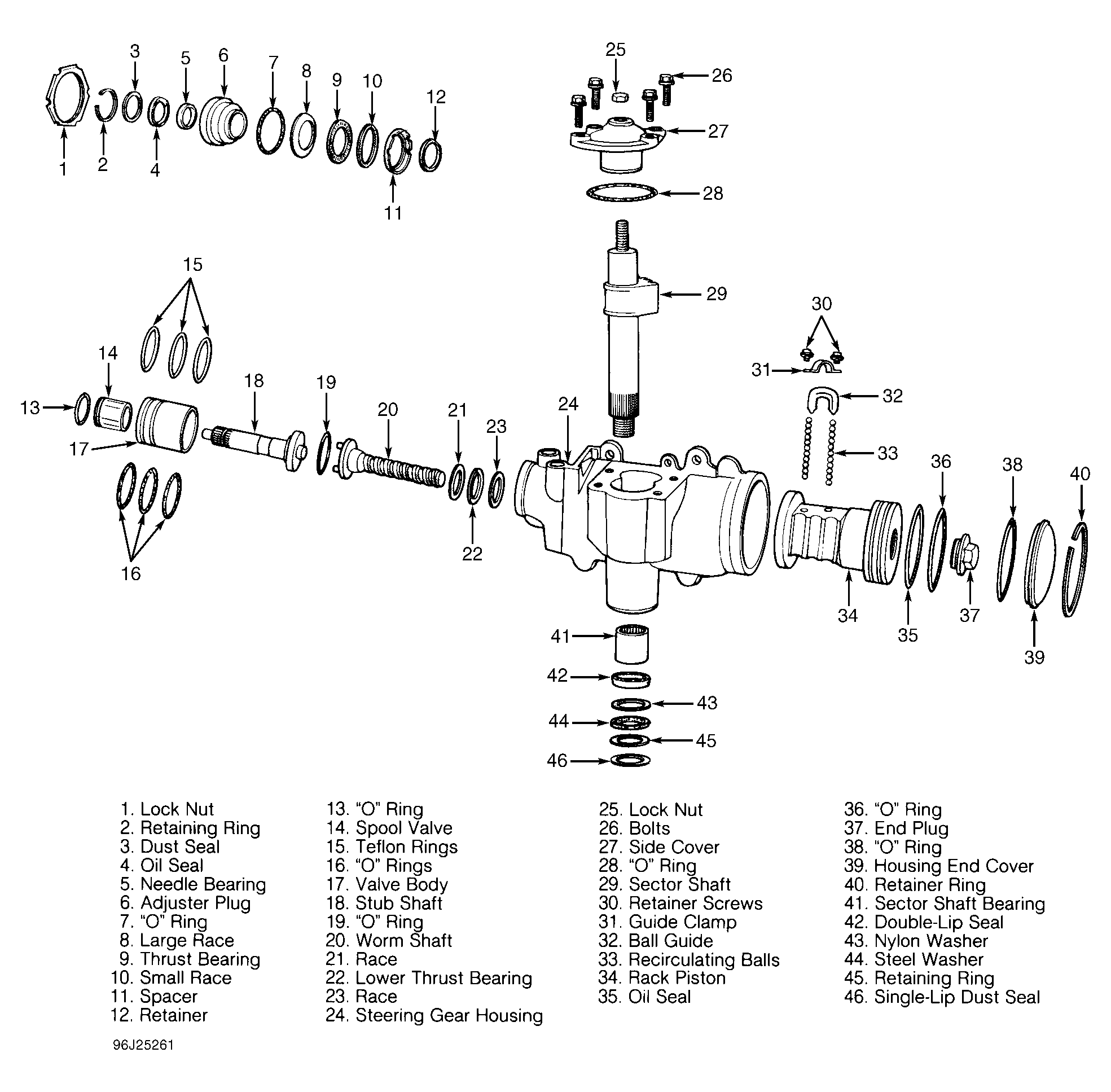

Fig 1: Exploded View Of Power Steering Gear - Except 1999 Grand Cherokee
G96J25261Courtesy of CHRYSLER CORP.

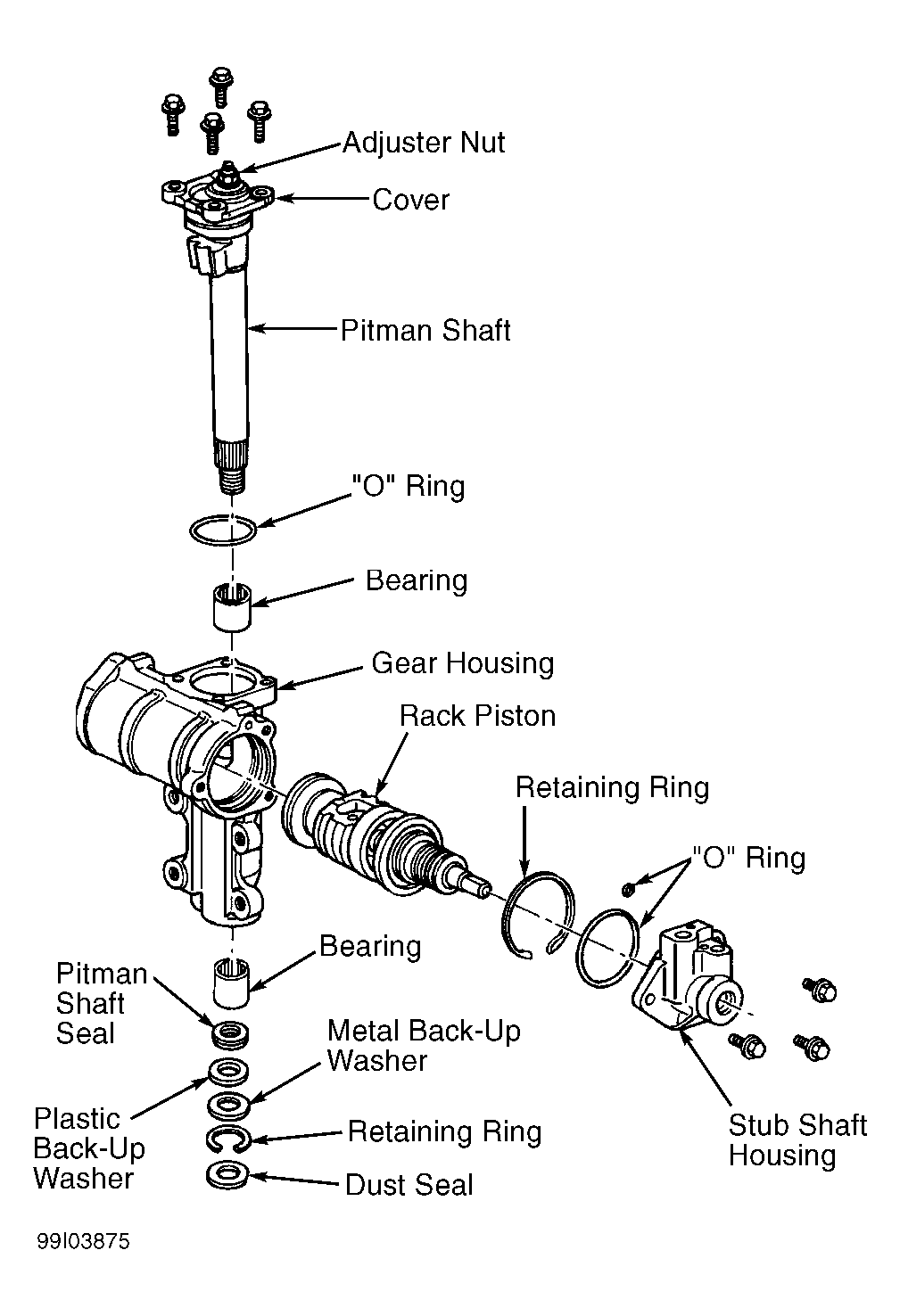

Fig 2: Exploded View Of Power Steering Gear - 1999 Grand Cherokee
G99I03875Courtesy of CHRYSLER CORP.
