Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| Circuit Breaker (Power Seat) | In junction block, at right kick panel. |
| Circuit Breaker (Power Window) | In junction block, at right kick panel. |
| Circuit Breaker (Windshield Wiper) | In junction block, at right kick panel. |
| Junction Block | Under right side of dash, on kick panel. |

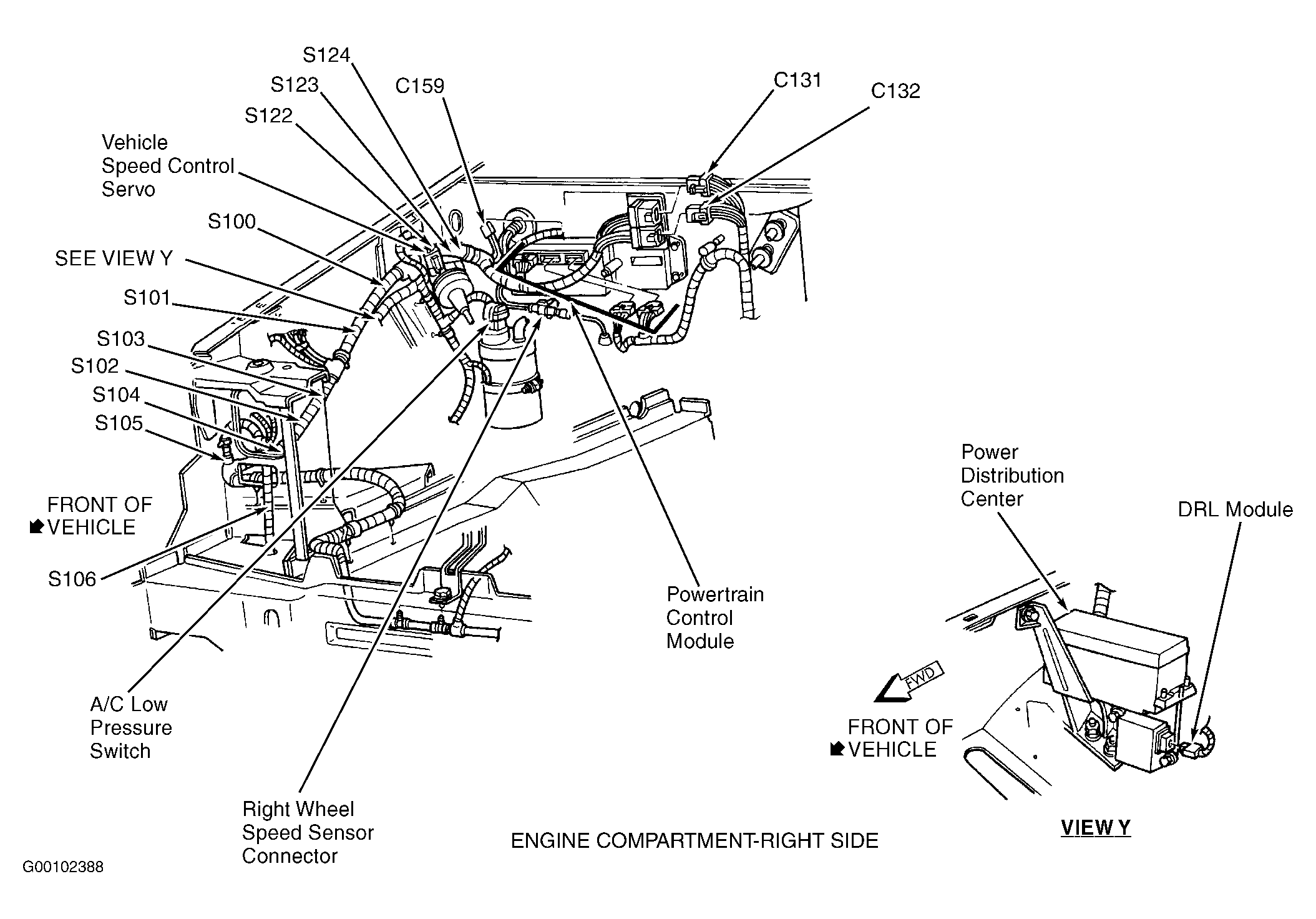

| Power Distribution Center | On right inner fender panel, behind battery. See Figure . |
