Main Relay (Computer/Fuel System): Service and Repair

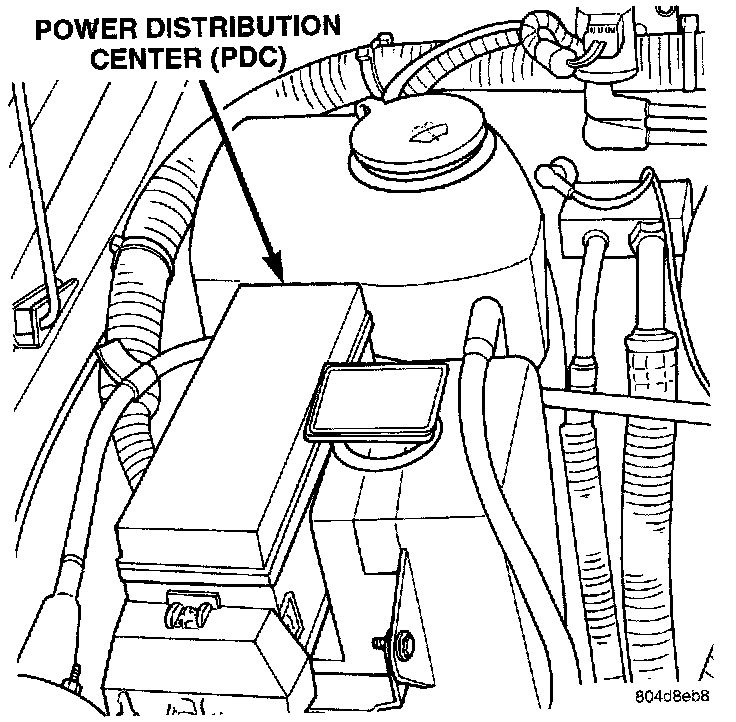

Fig. 31 PDC Location:

The ASD relay is located in the Power Distribution Center (PDC) (Fig. 31). Relay location is printed on a label on PDC cover.

REMOVAL
1. Remove the PDC cover.
2. Remove the relay by lifting straight up.

INSTALLATION
1. Check the condition of relay wire terminals at PDC before installing relay. Repair as necessary.
2. Push the relay into the connector.
3. Install the relay cover.
