Engine Controls - O2 Sensor Diagnostic Update

NUMBER: 26-01-00N

GROUP: Miscellaneous

DATE: January, 2000

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

Models:
1997 2.5/4.0 Cherokee Powertrain Diagnostic Manual - Publication Number 81-699-96098

DESCRIPTION OF CHANGES

Revisions to the oxygen sensor diagnostic tests

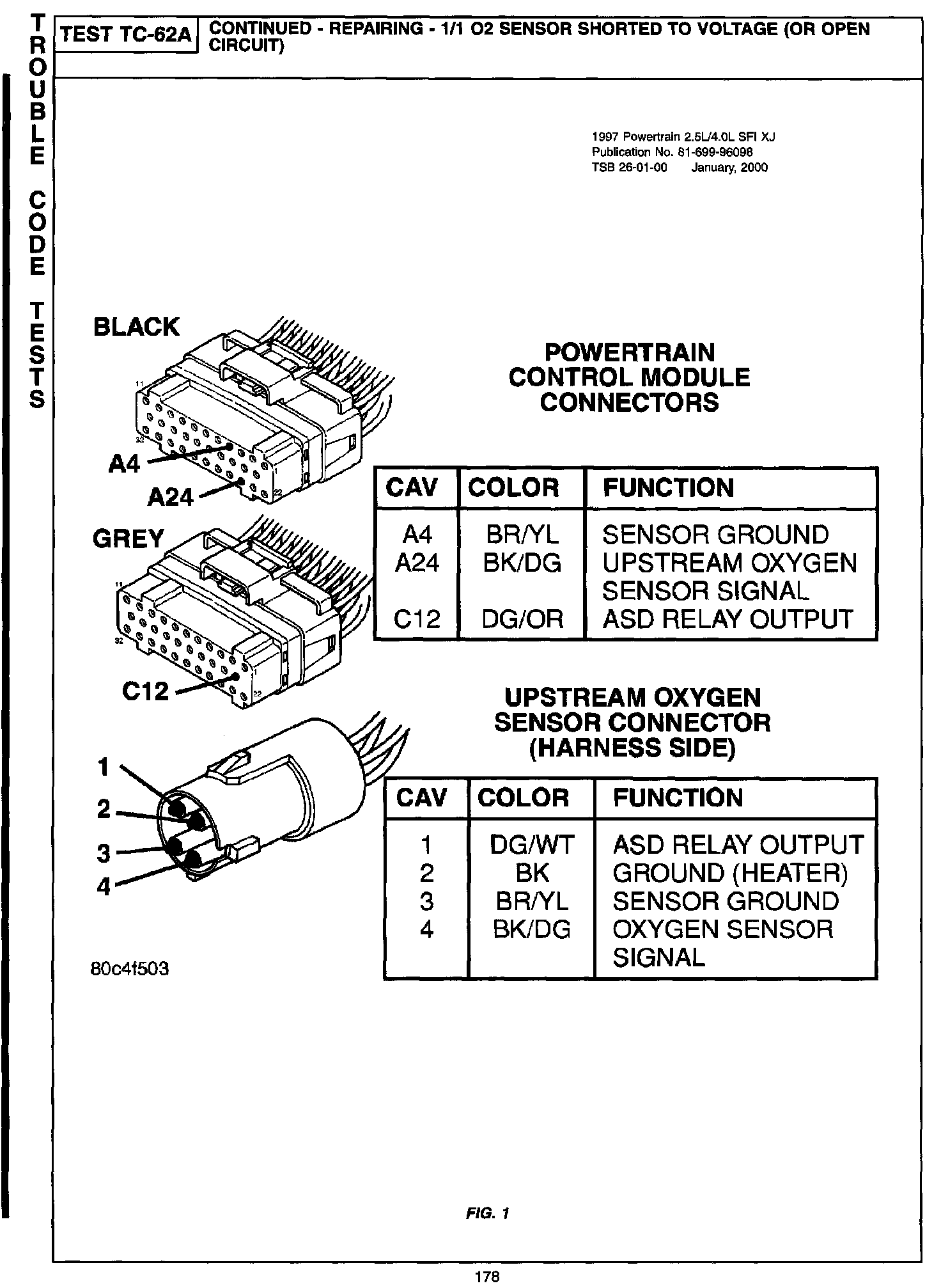

178

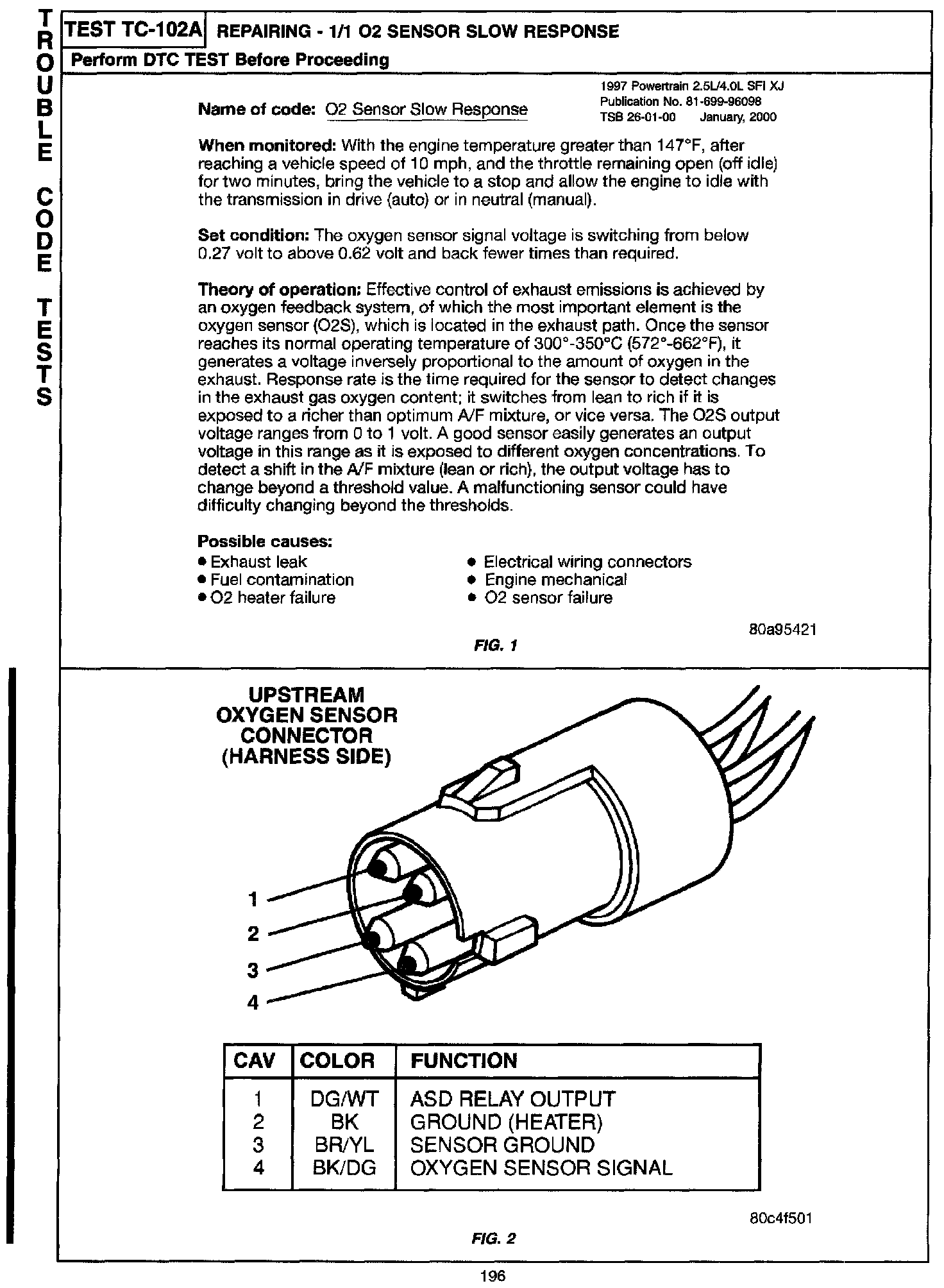

196

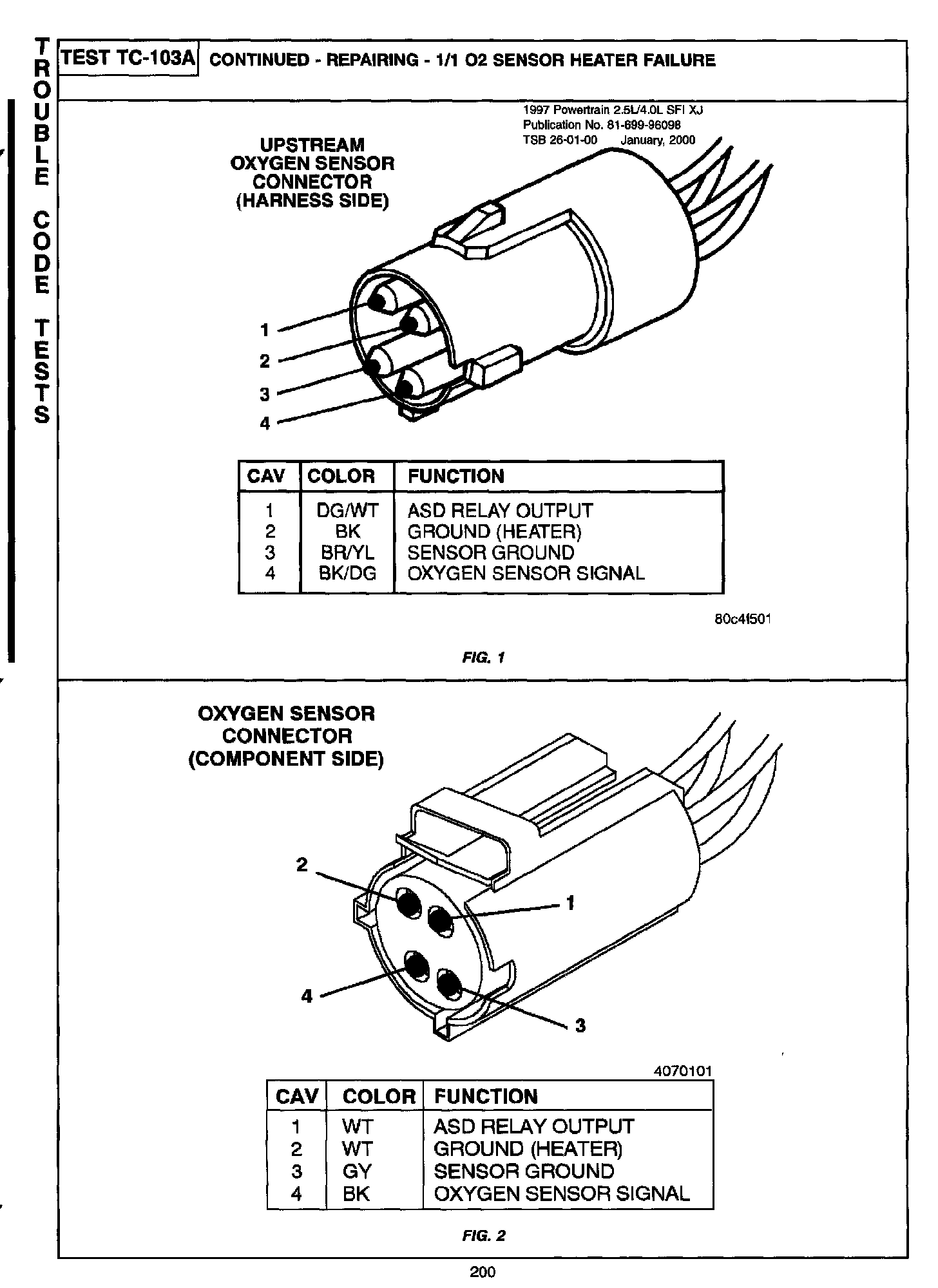

200

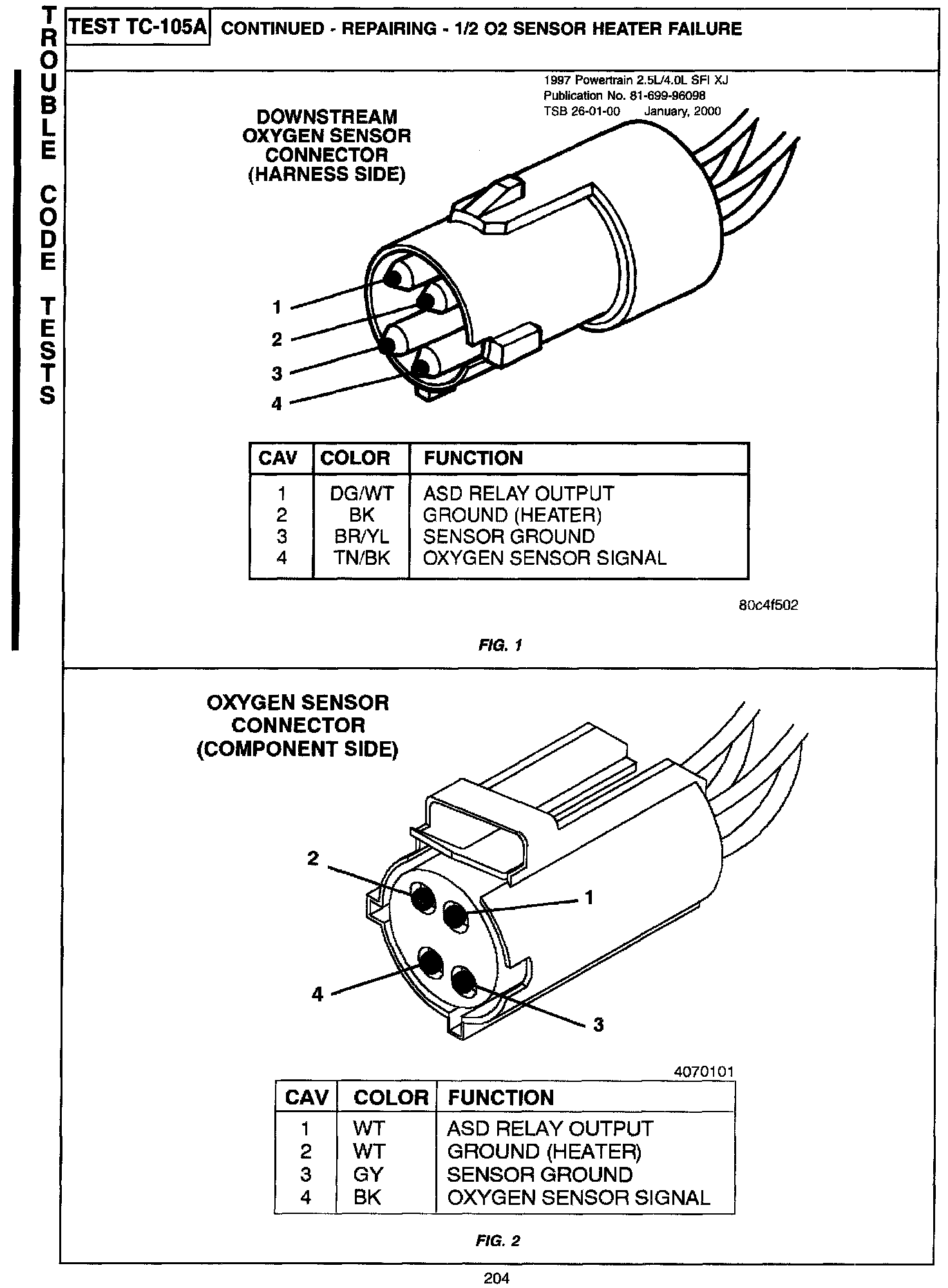

204

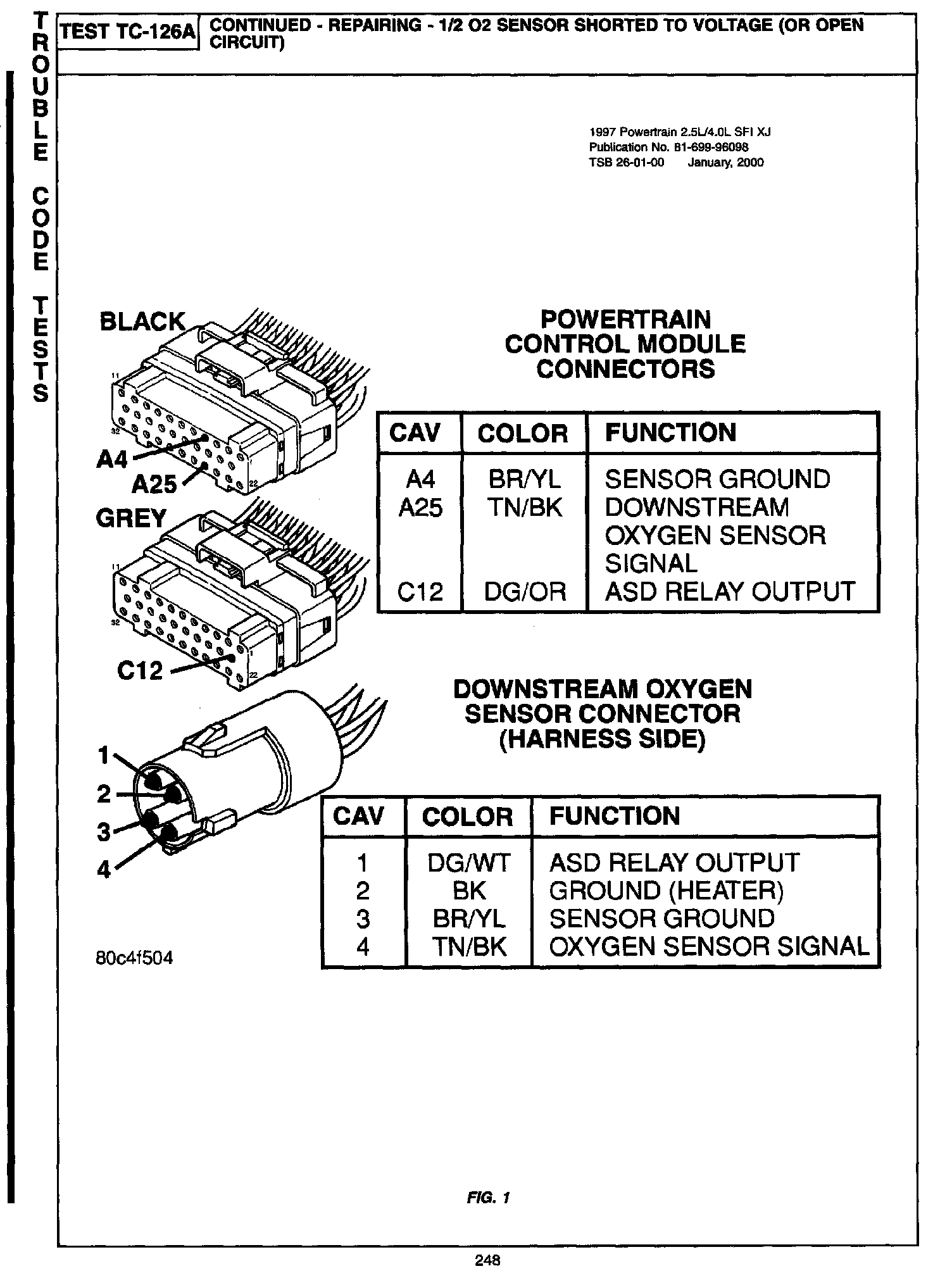

248

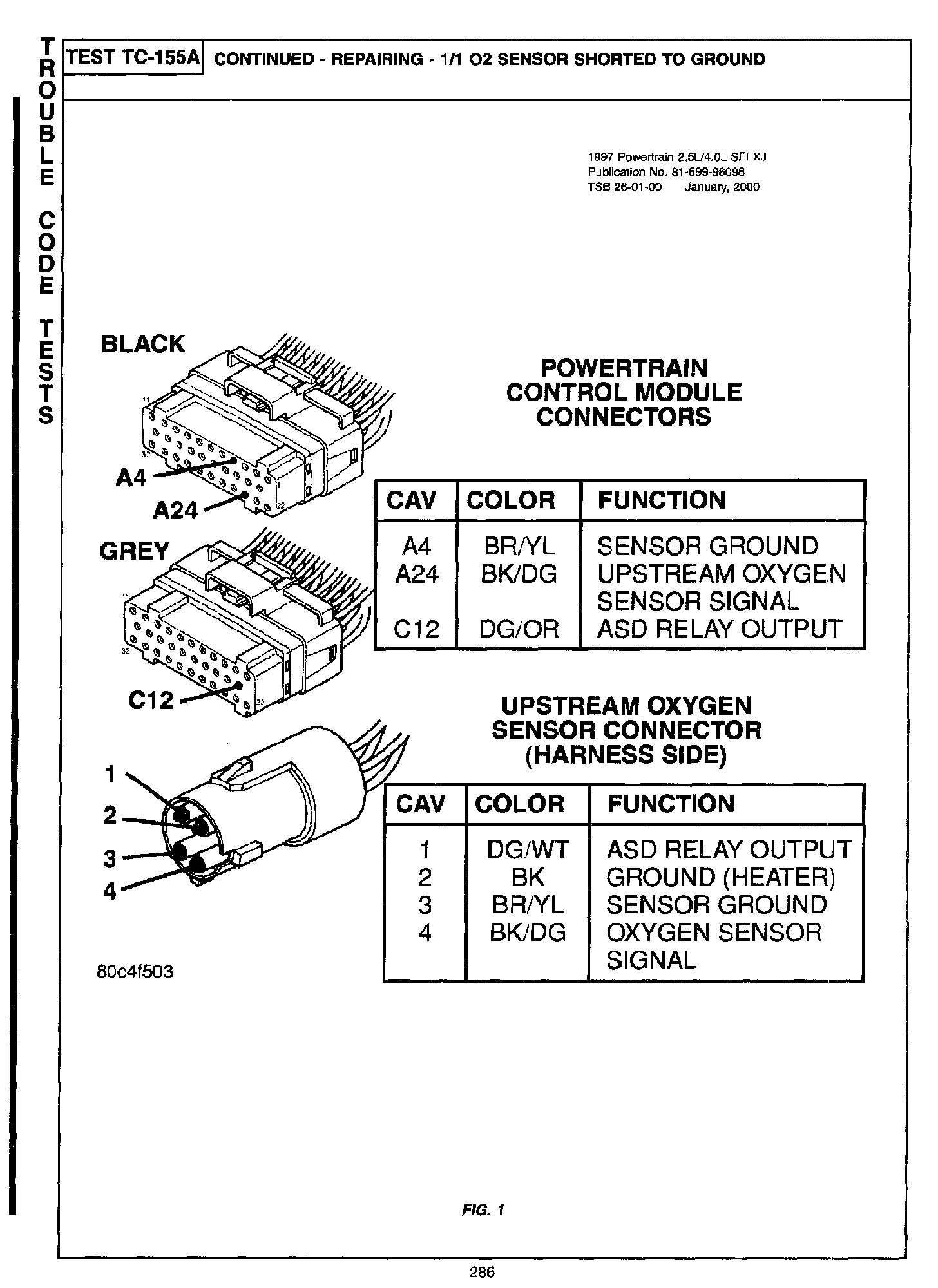

286

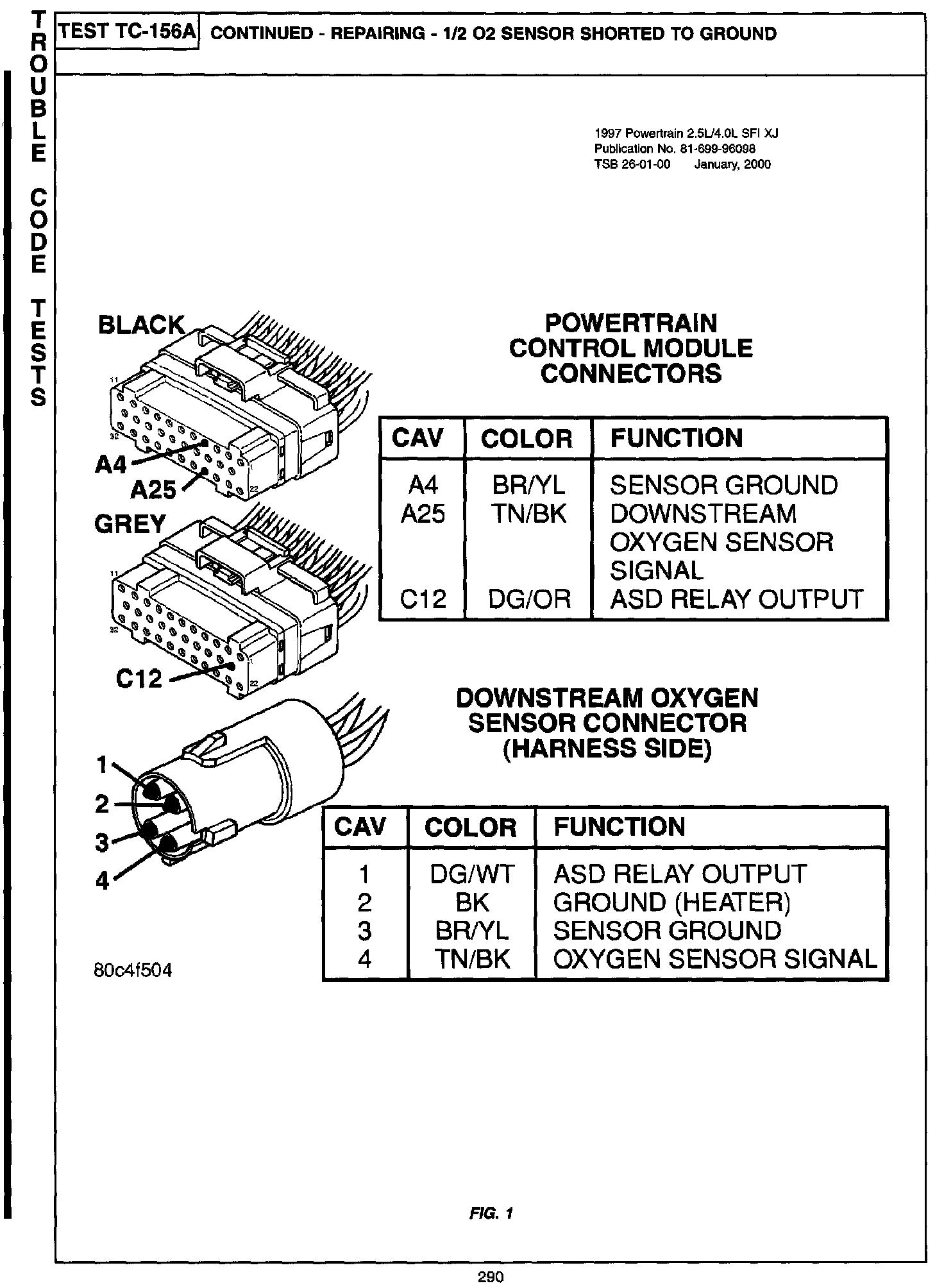

290

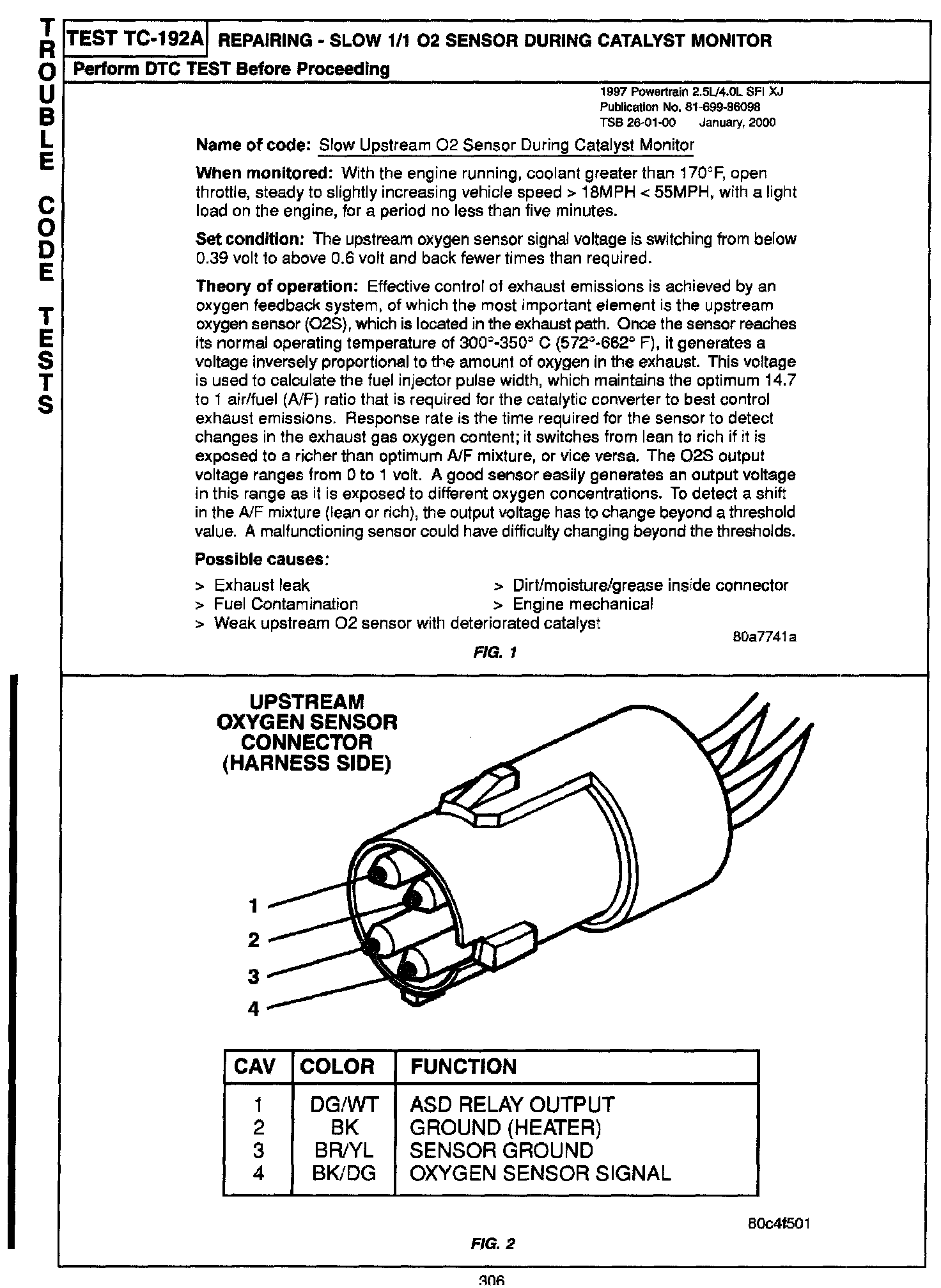

306





324

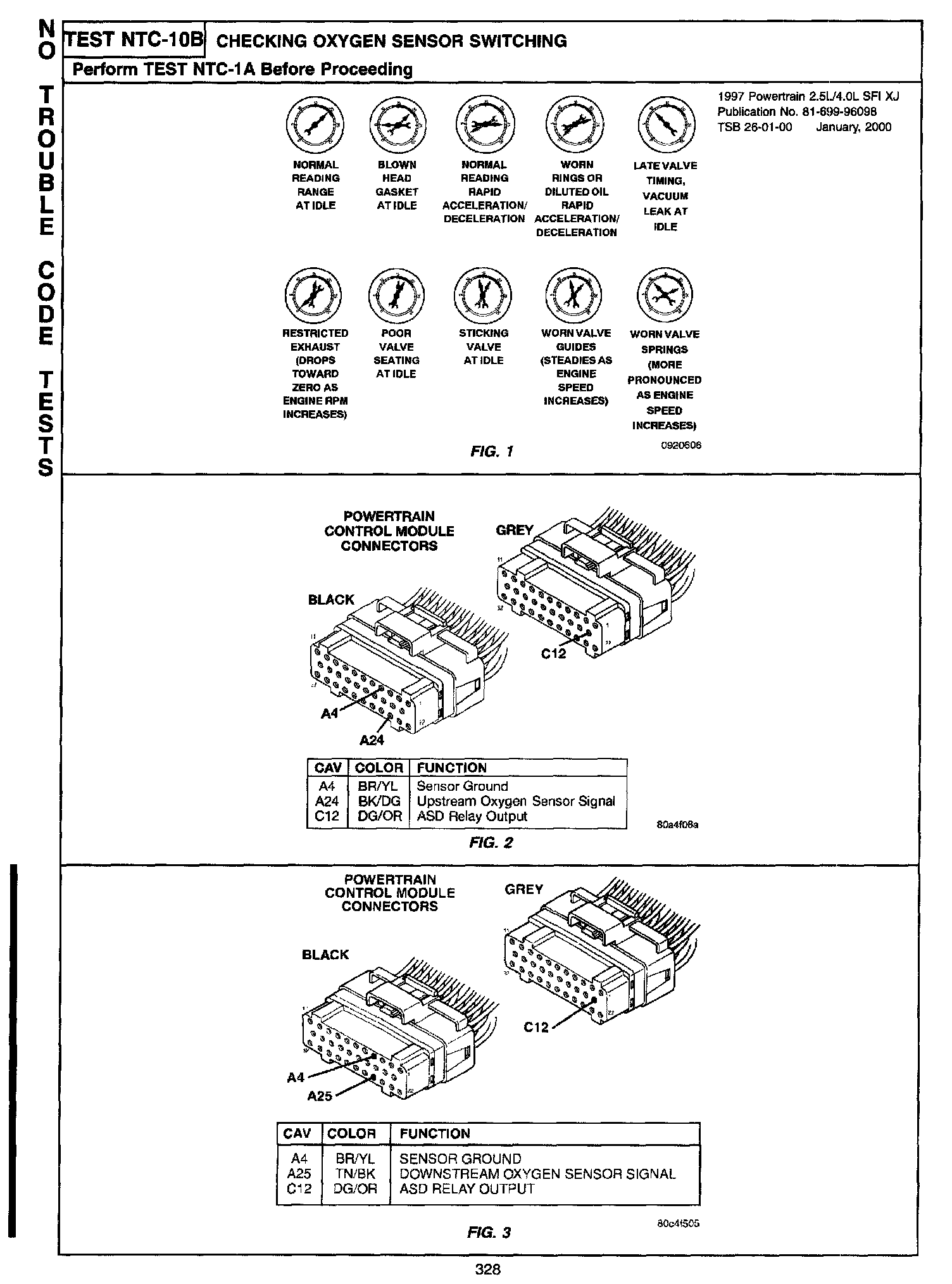

328
