Checking Speed Control Resume/Accel Switch

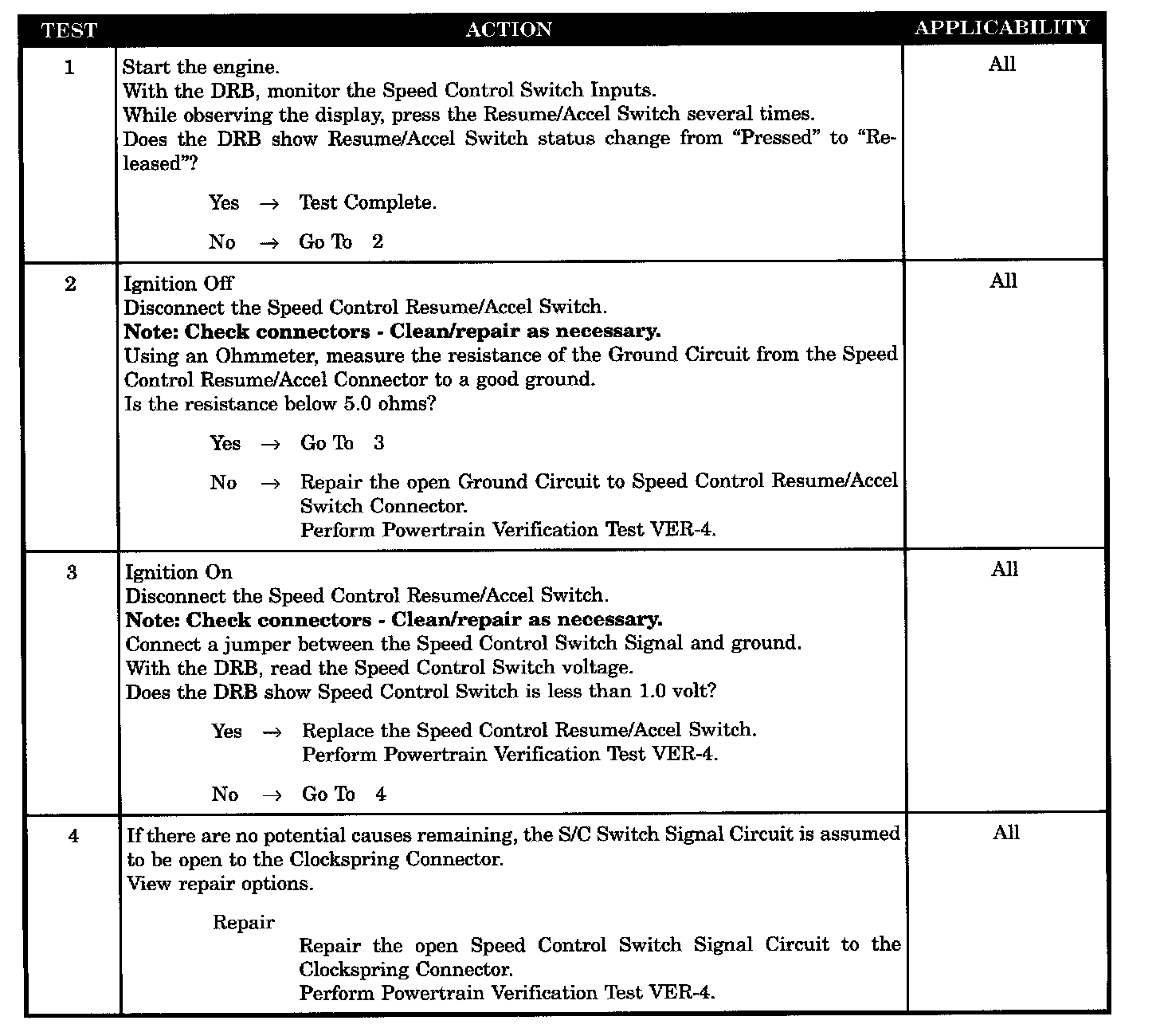

Tests 1 - 4:
SYMPTOM
CHECKING SPEED CONTROL RESUME/ACCEL SWITCH
POSSIBLE CAUSES
-
speed control ground circuit open
-
Speed control RESUME/ACCEL switch defective
-
Speed control switch
signal switch open
