Checking Secondary Ignition and Timing

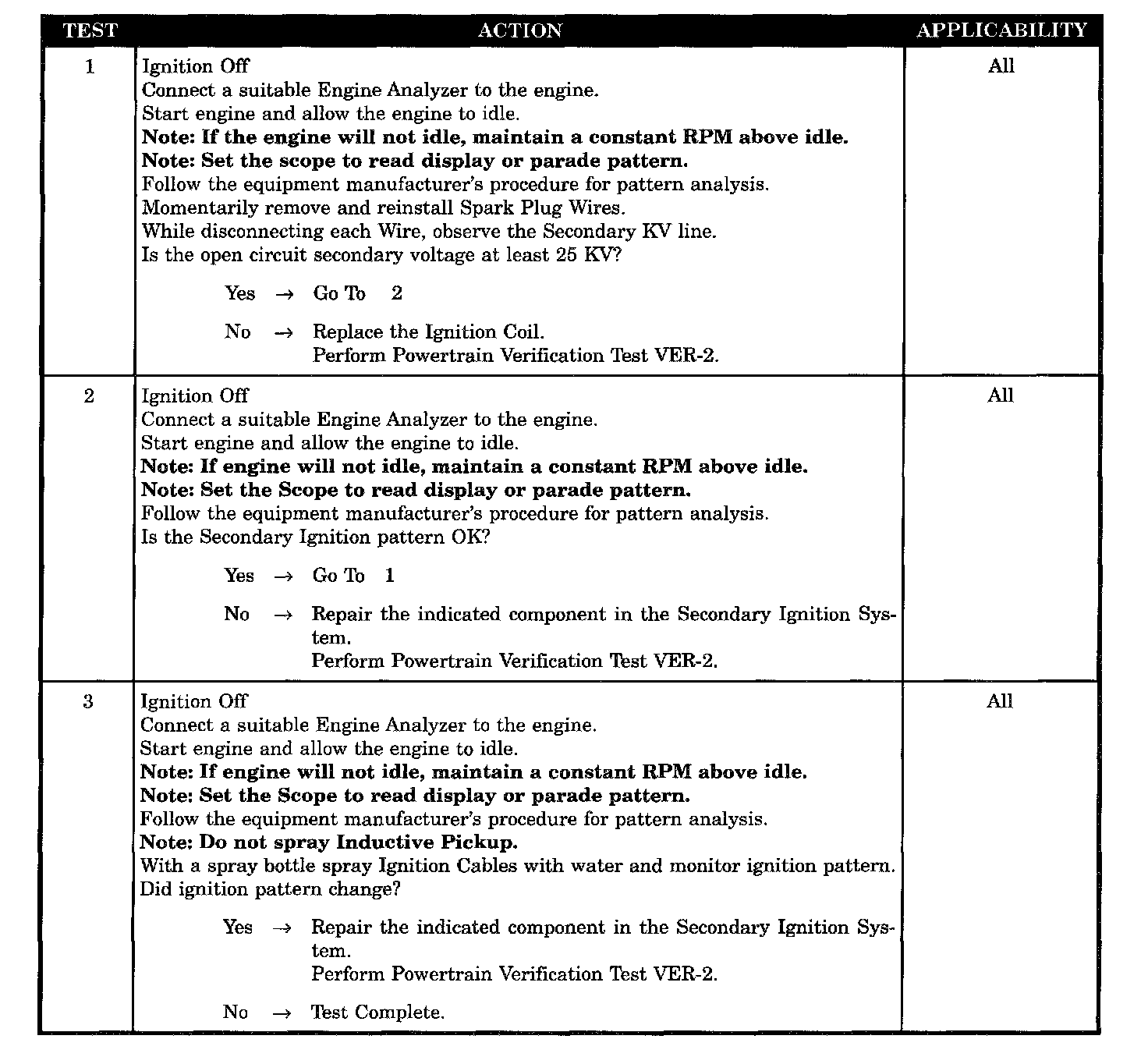

Tests 1 - 3:
SYMPTOM
CHECKING SECONDARY IGNITION AND TIMING
POSSIBLE CAUSES
-
Electronic ignition coil secondary ignition
-
Ignition cables
irregular pattern
-
Secondary
ignition system
irregular pattern
